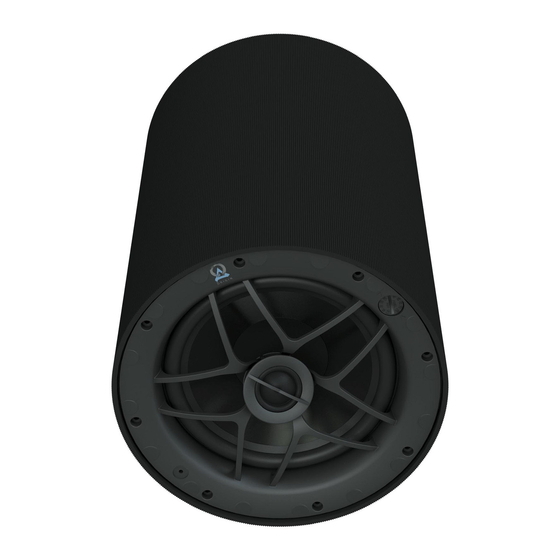

Pendant speakers
Hide thumbs Also See for PROFESSIONAL PP50:

Advertisement

Quick Links

PROFESSIONAL COLLECTION
PROFESSIONAL COLLECTION
PENDANT SPEAKERS
PP50
PP80
PP60
PPSUB8
INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFESSIONAL PP50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Origin Acoustics PROFESSIONAL PP50

  • Page 1 PROFESSIONAL COLLECTION PROFESSIONAL COLLECTION PENDANT SPEAKERS PP50 PP60 PP80 PPSUB8 INSTALLATION MANUAL...
  • Page 2: Table Of Contents

    Professional Collection Manual Table of Contents 1. Introduction 2. Certifications & Safety Agency Compliance 3. What’s Included 4. Specifications 5. Product Features 6. 70V/100V System 7. Wiring Diagram 8. Speaker Placement 8. Speaker Wire 9. Wire Routing 10. Installation 12. Safety Agency Compliance 13.
  • Page 3: Introduction

    Professional Collection Manual 1. Introduction Thank you for purchasing the Professional Collection speaker. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. This instruction booklet covers the necessary information for a smooth installation, including: the tools you will need, step-by-step instructions for installation, troubleshooting tips for any errors that may occur, and all warranty information.
  • Page 4: What's Included

    Professional Collection Manual 3. What’s Included • Speaker • Gripple® Suspension Kit Containing: • Cable Ties (3) • Gripple Rope Grip (2) • Gripple Release Key • Installation Manual • Hanging Cable (stainless steel) • Available in Black and White colors. •...
  • Page 5: Product Features

    Professional Collection Manual 5. Product Features Enclosure Multi-Motion High Excursion Woofer Pivoting™ Tweeter Transformer Tap and Bypass Switch Press-Fit Grille 4-Pin Terminal Connector Suspension Bracket...
  • Page 6: V/100V System

    Professional Collection Manual 6. 70V/100V System 70/100-Volt systems are advantageous when the design calls for multiple speakers from the same amplifier and/or long-distance wire runs. These Professional Collection 70V/100V Pendant Speakers feature multiple taps off the transformer, adjusted by a rotary switch on the front face of the speaker. The higher the wattage selected, the more output will be generated by the speaker.
  • Page 7: Wiring Diagram

    The 8 Ω position cannot be used with a 70/100V connection as it will damage or destroy the transformer. Should you be uncomfortable designing or installing a 70/100V system, or should you have any questions please contact Origin Acoustics Technical Support. 7. Wiring Diagram Wiring Diagram for 70V/100V system...
  • Page 8: Speaker Placement

    Professional Collection Manual 8. Speaker Placement Speaker placement is determined by several factors like desired SPL, coverage requirements, variance in SPL by location, etc. When the objective is to fill a large area with very little variance (+/- 2dB), then a larger number of speakers are required. Typically, once the number of speakers has been determined, placing them equidistant from the walls and from each other will deliver the best result.
  • Page 9: Wire Routing

    Professional Collection Manual On commercial 70 volt systems, 18 gauge, 2 conductor, stranded and jacketed without shield wire is commonly used. Wire Length Wire Gauge System 0 -200’ (0 - 60m) 70V / 100V 200-500’ (60 -150m) 70V / 100V Over 500’...
  • Page 10: Installation

    Professional Collection Manual 11. Installation CAUTION: INSTALLATION MUST BE DONE BY QUALIFIED PERSONNEL. Failure to comply with these usage recommendations may result in product malfunction and possible damage to property or bodily injury. 1. Insert hanging cable into the Gripple Rope Grip. Pass cable over ceiling anchor point (as shown) or through other secure anchor point of the building structure.
  • Page 11 Professional Collection Manual 5. After height adjustment is final, trim any unneeded extra cable tail wires with trimmer. (See Figure E) Figure E How To Use Release Key To Adjust Height Of Speaker 6. Make sure the weight of the load is supported. (See Figure F) Figure F 7.
  • Page 12 Professional Collection Manual 10. Connect the wires from your amplifier to the Euroblock terminal connector. Strip approximately 3/16” (5mm) of the insulation off each wire. Insert the wire into the correct square opening on the connector. Use a small flat head screwdriver to tighten the corresponding screw to secure the wire.
  • Page 13 Professional Collection Manual Loop Through Connection Figure L To Next Speaker From Power Amplifier Parallel Connection Figure M To Next Speaker From Power Amplifier 13. Determine the proper wattage setting for each speaker in the installation and set each Figure N speaker’s transformer tap selector on the front of the speaker accordingly.
  • Page 14: Safety Agency Compliance

    Professional Collection Manual 12. Safety Agency Compliance Origin Acoustics Professional Collection Pendant speakers models PP50W, PP50B, PP60W, PP60B, PP80W, PP80B meet the following standards: 12A. UL 1480A: Standard for Speakers for Commercial and Professional Use Scope: 1.1 These requirements cover speakers for indoor and/or outdoor use in dry, damp,...
  • Page 15 Professional Collection Manual Video and Audio Equipment, UL 1419; and the commercial audio amplifier applications covered in UL 6500; d) Speakers intended for security applications; these products are covered in the Standard for Local Burglar Alarm Units and Systems, UL 609; and the Standard for Household Burglar-Alarm System Units, UL 1023.
  • Page 16 Professional Collection Manual Notes: 1) While this document does not address the performance aspects of signaling equipment it does specify requirements for the electrical safety of these devices, including functional safety. 2) Devices that generate radio frequency signals may also be subject to the requirements of Industry Canada.
  • Page 17 Professional Collection Manual This Standard does not apply to devices that are already covered by requirements of another Part II Standard. Requirements for a specific type of equipment could have additional requirements as defined in Annexes A, B, D, and E. Sensors used for medical applications for Class A, B, or C facilities (as defined in CSA Z32) are within the scope of the CAN/CSA-E60691 Series, and are not within the scope of this Standard.
  • Page 18 Professional Collection Manual 12C. NFPA 70: Standard for Electrical Safety in the Workplace® Scope: This standard addresses electrical safety-related work practices, safety-related maintenance requirements, and other administrative controls for employee workplaces that are necessary for the practical safeguarding of employees relative to the hazards associated with electrical energy during activities such as the installation, inspection, operation, maintenance, and demolition of electric conductors, electric equipment, signaling and communications conductors and...
  • Page 19 Professional Collection Manual a) installations or equipment employed by an electric, communication, or community antenna distribution system utility in the exercise of its function as a utility, as recognized by the regulatory authority having jurisdiction, and located outdoors or in buildings or sections of buildings used for that purpose;...
  • Page 20 Professional Collection Manual 1.4 These requirements do not cover: a) Hardware intended to support boxes (see UL 514A or CSA C22.2 No. 18.1), b) Conduit and cable fittings (see UL 514B or CSA C22.2 No. 18.3), c) Reducing washers (see UL 514B or CSA C22.2 No. 18.3), d) Pulling grips for cable or cord (see UL 514B or CSA C22.2 No.
  • Page 21: Troubleshooting

    Professional Collection Manual 13. Troubleshooting If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with another audio source to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them.
  • Page 22: Technical Assistance

    Origin Acoustics authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original.
  • Page 23: Return Process

    Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this is not possible, the customer is responsible for insuring the shipment for the full value of the product.
  • Page 24 Rev. 2 • 09-26-22 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2022 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
