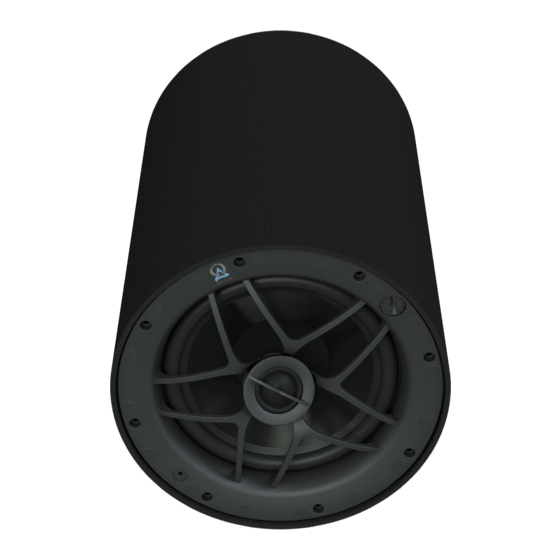

- Page 1 PROFESSIONAL COLLECTION Pendant Speakers PP50 PP60 PPSUB8 PP80 PBR68 Installation Manual PP50B, PP60B, PP80, PPSUB8B, PBR68B MPP01, REV0 PP50W, PP60W, PP80W, PPSUB8W, PBR68W...
-
Page 2: Table Of Contents
Professional Collection Manual Table of Contents Introduction Certifications & Safety Agency What’s Included Specifications Product Features 70v/100v System Speaker Placement Speaker Wire Wire Routing Installation Troubleshooting Technical Assistance Warranty Return Process... -
Page 3: Introduction
Professional Collection Manual Introduction Thank you for purchasing the Professional Collection speaker. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. This instruction booklet covers the necessary information for a smooth installation, including: the tools you will need, step-by-step instructions for installation, troubleshooting tips for any errors that may occur, and all warranty information. -
Page 4: What's Included
Professional Collection Manual What’s Included • Speaker • Grille Removal Key • Gripple® Suspension Kit Containing: • Gripple Rope Grip (2) • Gripple Release Key • Hanging Cable (stainless steel) • Safety Cable (stainless steel) • Cable Ties (3) • Installation Manual SPECIFICATIONS MODEL* PP80B, PP80W... -
Page 5: Product Features
Professional Collection Manual A C O U S T I C S w w w . o r i g i n a c o u s t i c s . c o m O R I G I N ®... -
Page 6: 70V/100V System
70/100-Volt systems are advantageous when the design calls for multiple speakers from the same amplifier and/or long-distance wire runs. The Origin Acoustics 70V/100V loudspeakers feature multiple taps off the transformer adjusted by a rotary switch at the front side of the speaker.. The higher the wattage selected the more output will be generated by the speaker. -
Page 7: Speaker Placement
Professional Collection Manual Wiring Diagram Speaker Placement Speaker placement is determined by several factors like desired SPL, coverage requirements, variance in SPL by location, etc. When the object is to fill a large area with very little variance (+/- 2dB), then a larger number of speakers is required. Typically, once the number of speakers has been determined, placing them equidistant from the walls and from each other will deliver the best result. -
Page 8: Speaker Wire
Professional Collection Manual Speaker Wire The gauge of wire used can have an impact on the performance of your speakers. Generally, speaker wire is determined by the length of the run and wattage utilized. The longer your run is, the smaller the wire gauge must be. On commercial 70 volt systems, 18 gauge, 2 conductor, stranded and jacketed without shield wire is commonly used. -
Page 9: Installation
Professional Collection Manual Installation CAUTION: INSTALLATION MUST BE DONE BY QUALIFIED PERSONNEL. Failure to comply with these usage recommendations may result in product malfunction and possible damage to property or bodily injury. 1. Insert hanging cable into the Gripple Rope Grip. Pass cable over ceiling anchor point (as shown) or through other secure anchor point of the building Figure A... - Page 10 Professional Collection Manual 5. After height adjustment is final, trim any unneeded extra cable tail wires with trimmer. Figure E (See Figure E) How To Use Release Key To Adjust Height Of Speaker 6. Make sure the weight of the load is supported. (See Figure F) Figure F 7.
- Page 11 Professional Collection Manual 10. Connect the wires from your amplifier to the Euroblock terminal connector. Strip approximately 3/16” (5mm) of the insulation off each wire. Insert the wire into the correct square opening on the connector. Use a small flat head screwdriver to tighten the corresponding screw to secure the wire.
- Page 12 Professional Collection Manual 12. When using multiple speakers you can connect the speakers either in parallel or in the loop through method as shown below (See Figure L & M). Loop Through Connection Figure L To Next Speaker From Power Amplifier Parallel Connection Figure M To Next Speaker...
- Page 13 Professional Collection Manual NOTES...
-
Page 14: Troubleshooting
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning... -
Page 15: Warranty
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 16 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2019 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
