PROFESSIONAL COLLECTION| PENDANT SPEAKERS
PP80B
PP60B
PP50B
PPSUB8B
PP80W
PP60W
PP50W
PPSUB8W
Please visit www.originpro.com or scan the QR code using your smart device
for the most up to date safety information and use instructions for this product.
INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFESSIONAL PP80B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Origin Acoustics PROFESSIONAL PP80B

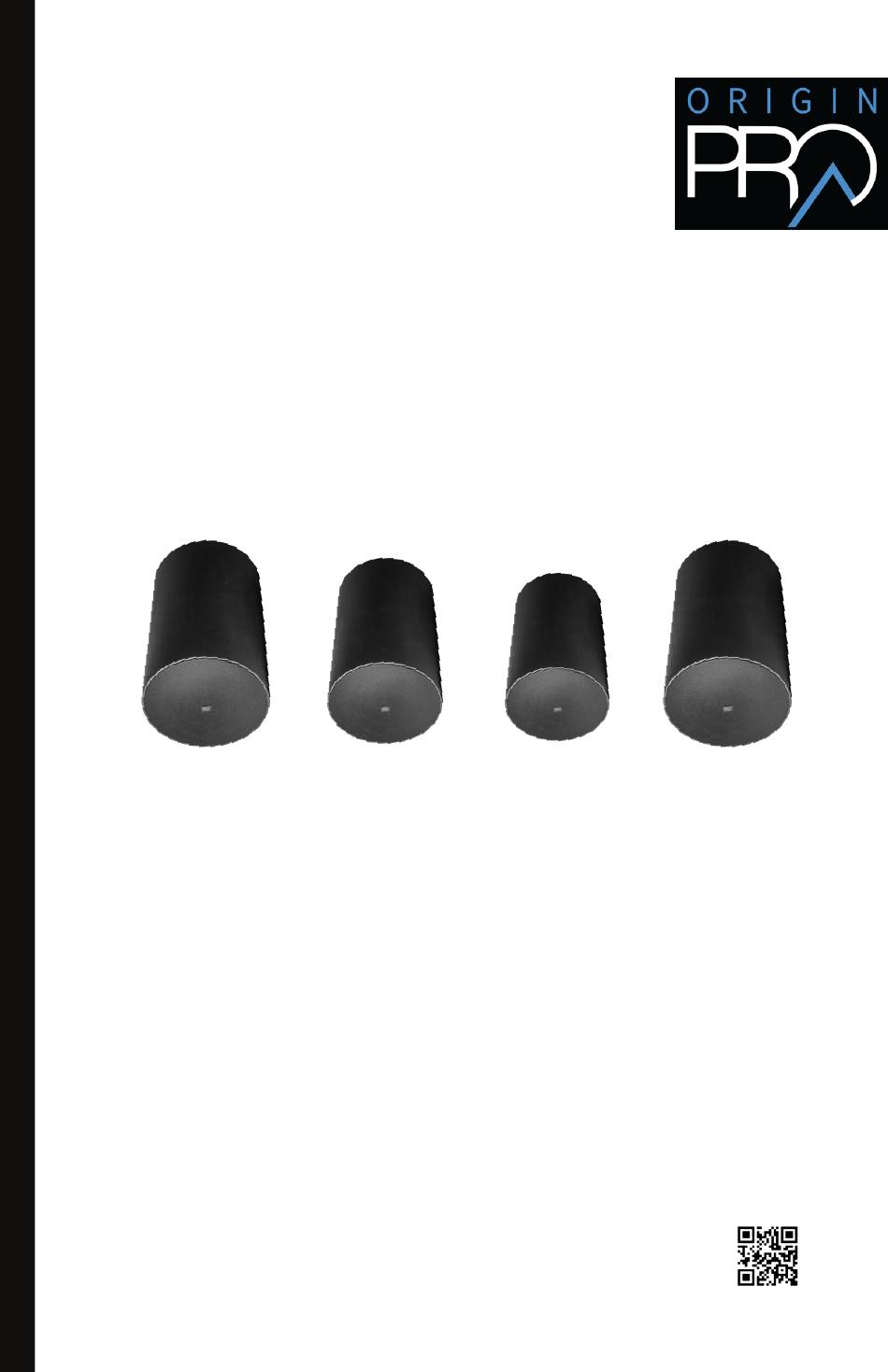

  • Page 1 PROFESSIONAL COLLECTION| PENDANT SPEAKERS PP80B PP60B PP50B PPSUB8B PP80W PP60W PP50W PPSUB8W Please visit www.originpro.com or scan the QR code using your smart device for the most up to date safety information and use instructions for this product. INSTALLATION MANUAL...
  • Page 2: Table Of Contents

    Table of Contents 1. Introduction 2. Certifications & Safety Agency Compliance 3. What’s Included 4. Specifications 5. Product Features 6. 70V/100V System 7. Wiring Diagram 8. Speaker Placement 8. Speaker Wire 9. Wire Routing 10. Installation 12. Safety Agency Compliance 13.
  • Page 3: Introduction

    1. Introduction Thank you for purchasing the Origin PRO Professional Pendant Speaker. All of Origin PRO’s speakers are designed to have excellent sound quality, longevity, a simple installation process, and built specifically for commercial applications. This instruction booklet covers the necessary information for a smooth installation, including: the tools you will need, step-by-step instructions for installation, troubleshooting tips for any errors that may occur, and all warranty information.
  • Page 4: What's Included

    3. What’s Included A • Speaker (Available in Black or White) D • Gripple® Suspension Kit Containing: B • Cable Ties (3) E • Gripple Rope Grip (2) C • Installation Manual F • Gripple Release Key G • Hanging Cable (stainless steel) •...
  • Page 5: Product Features

    5. Product Features Transformer Tap & Enclosure Bypass Switch Multi-Motion High Excursion Pivoting™ Tweeter Woofer Grille Safety Wire Transformer Tap & Bypass Switch Press-Fit Grille Passive Radiator 4-Pin Terminal Suspension Bracket Connector...
  • Page 6: V/100V System

    6. 70V/100V System 70/100-Volt systems are advantageous when the design calls for multiple speakers from the same amplifier and/or long-distance wire runs. These Professional Collection 70V/100V Pendant Speakers feature multiple taps off the transformer, adjusted by a rotary switch on the front face of the speaker. The higher the wattage selected, the more output will be generated by the speaker.
  • Page 7: Wiring Diagram

    Model Position 7.5W PP80B PP80W 100V PP60B 8ohm 8 Ω PP60W 7.5W 3.75W PP50B 100V 7.5W PP50W 8ohm 8 Ω 120W PPSUB8B 100V 120W PPSUB8W 8ohm 8 Ω Tap Switch for PP60B | PP60W & PP80B | PP80W models shown. Insert Guitar Pick (included) to easily turn Tap Switch.
  • Page 8: Speaker Placement

    8. Speaker Placement Speaker placement is determined by several factors like desired SPL, coverage requirements, variance in SPL by location, etc. When the objective is to fill a large area with very little variance (+/- 2dB), then a larger number of speakers are required. Typically, once the number of speakers has been determined, placing them equidistant from the walls and from each other will deliver the best result.
  • Page 9: Wire Routing

    On commercial 70 Volt systems, 18 gauge, 2 conductor, stranded and jacketed without shield wire is commonly used. Wire Length Wire Gauge System 0 -200’ (0 - 60m) 70V / 100V 200-500’ (60 -150m) 70V / 100V Over 500’ (150m) 70V / 100V In residential systems, for relatively short runs (less than 50 feet) to 8 ohm speakers, 16 gauge wire will be usually suitable.
  • Page 10: Installation

    11. Installation CAUTION: INSTALLATION MUST BE DONE BY QUALIFIED PERSONNEL. Failure to comply with these usage recommendations may result in product malfunction and possible damage to property or bodily injury. 1. Insert hanging cable into the Gripple Rope Grip. Pass cable over ceiling anchor point (as shown) or through other secure anchor point of the building structure.
  • Page 11 5. After height adjustment is final, trim any unneeded extra cable tail wires with trimmer. See Figure E Figure E How To Use Release Key To Adjust Height Of Speaker 6. Make sure the weight of the load is supported. See Figure F Figure F 7.
  • Page 12 Figure L Figure K 11. Plug the male connector into the terminal connector at the rear speaker. Then, slide down the 4Pin PVC Connector Cover over the 4Pin Terminal Connector. See Figures M & N Figure M Figure N Origin Acoustics...
  • Page 13 12. When using multiple speakers you can connect the speakers either in Parallel or in the Loop Through connection method, as shown in the following images. See Figures O & P Figure O: Loop Through Connection To Next Speaker From Power Amplifier Figure P: Parallel Connection To Next Speaker...
  • Page 14: Safety Agency Compliance

    12. Safety Agency Compliance Origin PRO Professional Collection Pendant speakers models PP50B, PP50W, PP60B, PP60W, PP80B, PP80W, PSUB8B and PSUB8W, all meet the following standards: 12A. UL 1480A: Standard for Speakers for Commercial and Professional Use Scope: 1.1 These requirements cover speakers for indoor and/or outdoor use in dry, damp, wet, or underwater locations and are intended for one or more of the following: a) Commercial and professional audio systems providing non-emergency sound reinforcement and reproduction in accordance with the National Electrical Code,...
  • Page 15 Video and Audio Equipment, UL 1419; and the commercial audio amplifier applications covered in UL 6500; d) Speakers intended for security applications; these products are covered in the Standard for Local Burglar Alarm Units and Systems, UL 609; and the Standard for Household Burglar-Alarm System Units, UL 1023.
  • Page 16 Notes: 1) While this document does not address the performance aspects of signaling equipment it does specify requirements for the electrical safety of these devices, including functional safety. 2) Devices that generate radio frequency signals may also be subject to the requirements of Industry Canada.
  • Page 17 This Standard does not apply to devices that are already covered by requirements of another Part II Standard. Requirements for a specific type of equipment could have additional requirements as defined in Annexes A, B, D, and E. Sensors used for medical applications for Class A, B, or C facilities (as defined in CSA Z32) are within the scope of the CAN/CSA-E60691 Series, and are not within the scope of this Standard.
  • Page 18 12C. NFPA 70: Standard for Electrical Safety in the Workplace® Scope: This standard addresses electrical safety-related work practices, safety-related maintenance requirements, and other administrative controls for employee workplaces that are necessary for the practical safeguarding of employees relative to the hazards associated with electrical energy during activities such as the installation, inspection, operation, maintenance, and demolition of electric conductors, electric equipment, signaling and communications conductors and equipment, and raceways.
  • Page 19 a) installations or equipment employed by an electric, communication, or community antenna distribution system utility in the exercise of its function as a utility, as recognized by the regulatory authority having jurisdiction, and located outdoors or in buildings or sections of buildings used for that purpose; b) equipment and facilities that are used in the operation of an electric railway and are supplied exclusively from circuits that supply the motive power;...
  • Page 20 1.4 These requirements do not cover: a) Hardware intended to support boxes (see UL 514A or CSA C22.2 No. 18.1), b) Conduit and cable fittings (see UL 514B or CSA C22.2 No. 18.3), c) Reducing washers (see UL 514B or CSA C22.2 No. 18.3), d) Pulling grips for cable or cord (see UL 514B or CSA C22.2 No.
  • Page 21: Troubleshooting

    13. Troubleshooting If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with another audio source to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them.
  • Page 22: Technical Assistance

    14. Technical Assistance If you have any questions or concerns about installing or using this product, you can reach us through one of the following methods: Phone: (844) 674-4461 Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri If you are having technical trouble, please have ready your model number and be prepared to briefly explain what steps you took to resolve the problem, to be best helped over the phone.
  • Page 23: Return Process

    Not Covered by Warranty • Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Origin PRO or an authorized dealer • Damage caused by improper installation • Normal wear, maintenance, and environmental issues •...
  • Page 24 01-09-24 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originpro.com • 844-674-4461 ©2023 Origin PRO. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin PRO.
