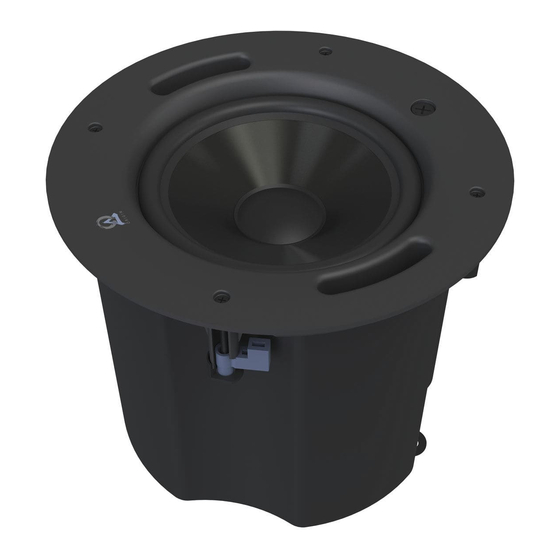

Summary of Contents for Origin Acoustics PCSUB8
- Page 1 PROFESSIONAL COLLECTION IN-CEILING SPEAKERS PCSUB8 PC80 PC60 PC60S PC50 INSTALLATION MANUAL...
-
Page 2: Table Of Contents
Professional Collection Manual Table of Contents 1. Introduction 2. Certifications & Safety Agency Compliance 3. Specifications 4. What’s Included 5. Product Features 6. 70V/100V System 7. Wiring Diagram 8. Speaker Placement 9. Speaker Wire 10. Wire Routing 11. Installation 12. Drop Ceiling Installation 13. -
Page 3: Introduction
Professional Collection Manual 1. Introduction Thank you for purchasing the Professional Collection speaker. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. This instruction booklet covers the necessary information for a smooth installation, including: the tools you will need, step-by-step instructions for installation, troubleshooting tips for any errors that may occur, and all warranty information. -
Page 4: Specifications
Professional Collection Manual 3. Specifications MODEL PCSUB8 PC80 Part SCPSUB800 SPC800000 Woofer 8” IMPP 8” IMPP Tweeter 1” Silk DSPD™ MMP™ Power Handling (Program Power) 200 Watts 120 Watts Power Handling (Cont. Pink Noise) 100 Watts 60 Watts Frequency Response... -
Page 5: What's Included
Professional Collection Manual MODEL PC50 Part SPC500000 Woofer 5 1/ 4 ” IMPP Tweeter 3/ 4 ” Silk DSPD™ MMP™ Power Handling (Program Power) 60 Watts Power Handling (Cont. Pink Noise) 30 Watts Frequency Response (- 10dB): 54Hz-20kHz (- 3dB): 80Hz-20kHz Nominal Coverage Angle 120 Degree Conical Coverage Sensitivity 2.83V @1m... -
Page 6: Product Features
PC50 PC60 50in .3mm CUT OUT DIAMETER 7 1/ 2 ” (190mm) CUT OUT DIAMETER 8 13/ 1 6” (224mm) Origin Acoustics PC60 6975 S Decatur Blvd MOUNTING DEPTH 8” (202mm) MOUNTING DEPTH 8” (202mm) Suite 140 Las Vegas, NV 89118... - Page 7 Professional Collection Manual Dog-Ears Enclosure Transformer Tap and Bypass Switch Multi-Motion Pivoting™ Tweeter High Excursion Woofer Transformer Tap and Bypass Switch Enclosure Safety Bracket 4-Pin Terminal Conduit Clamp Connector *All product information is subject to change. Please refer to www.originacoustics.com for the latest information.
-
Page 8: V/100V System
The tables below lists the power tap settings for each model. The same settings are reflected on the rotary switch on the front face of speaker (Reference image below). Model Position 100W 12.5W 100V 100W PCSUB8 6ohm 6 Ω Models Position 7.5W PC80 100V PC60 6ohm 6 Ω... - Page 9 WARNING: The 6 Ω position CANNOT be used with a 70/100V Amplifier as it will damage the Crossover & Speaker. Should you be uncomfortable designing or installing a 70/100V system, or should you have any questions please contact our Technical Assistance Team at Origin Acoustics. [See page 20 for Contact information]...
-
Page 10: Wiring Diagram
Professional Collection Manual 7. Wiring Diagram Wiring Diagram for 70V/100V system 70V/100V AMP Wiring Diagram for 6Ω system 6Ω AMP + - + -... -
Page 11: Speaker Placement
Professional Collection Manual 8. Speaker Placement Speaker placement is determined by several factors like desired SPL, coverage requirements, variance in SPL by location, etc. When the objective is to fill a large area with very little variance (+/- 2dB), then a larger number of speakers are required. -
Page 12: Speaker Wire
Professional Collection Manual 9. Speaker Wire On commercial 70 volt systems, 18 gauge, 2 conductor, stranded and jacketed without shield wire is commonly used. Wire Length Wire Gauge System 0 -200' (0 - 60m) 70V / 100V 200-500' (60 -150m) 70V / 100V Over 500' (150m) 70V / 100V... -
Page 13: Installation
Professional Collection Manual 11. Installation 1. Cut a hole in the drywall using the supplied cutout template. [See Figure A] Figure A 2. Connect the wires from your amplifier to the male terminal connector at the rear of speaker. Strip approximately 3/ 1 6” (5mm) of the insulation off each wire. Insert the wire into the correct square opening on the connector. - Page 14 Professional Collection Manual 4. Make sure all the dog leg (L-shaped) clamps on the speaker are in the upright position and facing to the side, not outwards. Insert the speaker into the hole. Turn the four screws so that the dog legs face outwards and continue turning until they clamp down on the ceiling.
-
Page 15: Drop Ceiling Installation
Professional Collection Manual 12. Drop Ceiling Installation The Tile Bridge, consisting of C-bracket and rails, should be used in suspended ceiling installations involving acoustic ceiling tile 2’ x 2’ or 2’ x 4’ . The Tile Bridge can also be used in installations when the speakers are mounted into material that will not support their weight. -
Page 16: Painting The Grille
Professional Collection Manual 13. Painting the Grille In some situations the speakers may look better if the color matched the walls, ceiling, or trim in the room. This can be accomplished by painting the grille. The grille must be painted with spray paint, and most hardware stores will mix a can of paint to match whatever color you need. -
Page 17: Safety Agency Compliance
Professional Collection Manual 14. Safety Agency Compliance Origin Acoustics Professional Collection In-Ceiling speakers models PC50, PC60S, PC60, PC80, & PCSUB8 meet the following standards: UL 1480A: Standard for Speakers for Commercial and Professional Use Scope: 1.1 These requirements cover speakers for indoor and/or outdoor use in dry, damp,... - Page 18 Professional Collection Manual Video and Audio Equipment, UL 1419; and the commercial audio amplifier applica- tions covered in UL 6500; and d) Speakers intended for security applications; these products are covered in the Standard for Local Burglar Alarm Units and Systems, UL 609; and the Standard for Household Burglar-Alarm System Units, UL 1023.
- Page 19 Professional Collection Manual National Electric Code, NFPA 70; International Mechanical Code, NFPA 5000; Stan- dard for the Installation of Air Conditioning and Ventilating Systems, NFPA 90A. 1.4 This test method does not provide information on the performance of products in other fire or test conditions. This test does not investigate the toxicity of the products of combustion.
- Page 20 Professional Collection Manual Informational Note: This standard addresses safety of workers whose job responsibilities entail interaction with electrical equipment and systems with potential exposure to energized electrical equipment and circuit parts. Concepts in this standard are often adapted to other workers whose exposure to electrical hazards is unintentional or not recognized as part of their job responsibilities.
-
Page 21: Troubleshooting
Professional Collection Manual 15. Troubleshooting If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with another audio source to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 22: Technical Assistance
Origin Acoustics authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original. -
Page 23: Return Process
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this is not possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 24 11-18-22 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2022 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
