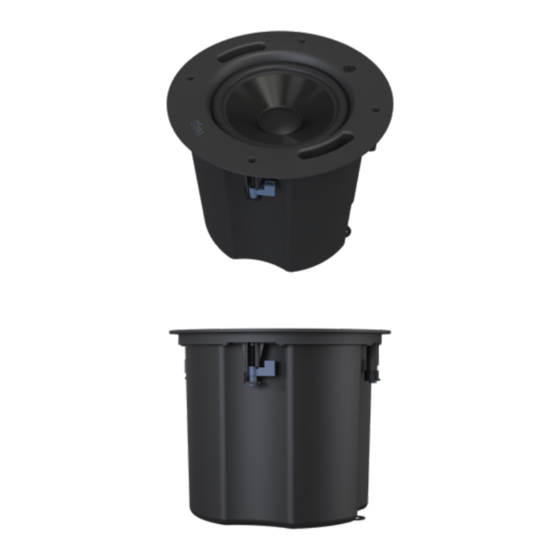

- Page 1 PROFESSIONAL COLLECTION | IN-CEILING SPEAKERS PC80B | PC80W PC60B | PC60W PC50B | PC50W PCSUB8B | PCSUB8W Please visit www.originpro.com or scan the QR code using your smart device for the most up to date safety information and use instructions for this product. INSTALLATION MANUAL...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction 2. Certifications & Safety Agency Compliance 3. Specifications 4. What’s Included 5. Product Features 6. 70V/100V System 7. Wiring Diagram 8. Speaker Placement 9. Speaker Wire 10. Wire Routing 11. Installation 12. Drop Ceiling Installation 13. -
Page 3: Introduction
1. Introduction Thank you for purchasing the Origin PRO Professional In-Ceiling Speaker. All of Origin PRO’s speakers are designed to have excellent sound quality, longevity, a simple installation process, and built specifically for commercial applications. This instruction booklet covers the necessary information for a smooth installation, including: the tools you will need, step-by-step instructions for installation, troubleshooting tips for any errors that may occur, and all warranty information. -
Page 4: Specifications
3. Specifications MODEL PCSUB8B | PCSUB8W PC80B | PC80W Part SCPSUB800B | SCP800W SPC8000B | SPC8000W Woofer 8” IMPP 8” IMPP Tweeter 1” Silk DSPD™ MMP™ Power Handling (Program Power) 200 Watts 120 Watts Power Handling (Cont. Pink Noise) 100 Watts 60 Watts Frequency Response (- 10dB): 39Hz-250Hz... -
Page 5: What's Included
A • Speaker B • Installation Manual C • Cut-Out Template • B D • 1 x Round Magnetic Grille & 1 x Square Magnetic Grille Origin Acoustics (according to color selected) ® E • Tile Bridge (if selected) • C... -
Page 6: Product Features
5. Product Features PCSUB8B | PCSUB8W PC80B | PC80W CUT OUT DIAMETER 10 1/ 2 ” (266mm) CUT OUT DIAMETER 10 1/ 2 ” (266mm) MOUNTING DEPTH 9 1/ 2 ” (242mm) MOUNTING DEPTH 9 1/ 2 ” (242mm) PC50B | PC50B PC60B | PC60W CUT OUT DIAMETER 7 1/ 2 ”... - Page 7 Dog-Ears Enclosure Transformer Tap and Bypass Switch Multi-Motion Pivoting™ Tweeter High Excursion Woofer Transformer Tap and Bypass Switch Enclosure Safety Bracket Conduit Clamp Strain Relief 4-Pin Terminal Connector...
-
Page 8: V/100V System
6. 70V/100V System 70/100-Volt systems are advantageous when the design calls for multiple speakers from the same amplifier and/or long-distance wire runs. These Professional Collection 70V/100V In Ceiling Speakers feature multiple taps off the transformer, adjusted by a rotary switch on the front face of the speaker. - Page 9 Model Position 7.5W 3.8W PC50B 100V 7.5W PC50W 6ohm 6 Ω NOTE: The tap setting determines how much wattage each speaker will draw from the amplifier. When daisy-chaining multiple speakers: add the combined wattages of all tap settings, to determine the wattage draw on the amplifier. The combined total wattage should NEVER exceed the wattage rating of the amplifier.
-
Page 10: Wiring Diagram
7. Wiring Diagram Wiring Diagram for 70V/100V system 70V/100V AMP Wiring Diagram for 6Ω system 6Ω AMP + - + -... -
Page 11: Speaker Placement
8. Speaker Placement Speaker placement is determined by several factors like desired SPL, coverage requirements, variance in SPL by location, etc. When the objective is to fill a large area with very little variance (+/- 2dB), then a larger number of speakers are required. Typically, once the number of speakers has been determined, placing them equidistant from the walls and from each other will deliver the best result. -
Page 12: Speaker Wire
9. Speaker Wire On commercial 70 Volt systems, 18 gauge, 2 conductor, stranded and jacketed without shield wire is commonly used. Wire Length Wire Gauge System 0 -200' (0 - 60m) 70V / 100V 200-500' (60 -150m) 70V / 100V Over 500' (150m) 70V / 100V In residential systems, for relatively short runs (less than 50 feet), 14 or 16 gauge wire will... -
Page 13: Installation
3. When using multiple speakers you can connect the speakers either in parallel or in the loop through method as shown below. See Figure D & E Figure D Loop Through Connection Origin Acoustics PC60 terminal 6975 S Decatur Blvd Suite 140... - Page 14 Terminal Cup. See Figures F & G Figure F Figure G 5. To carefully tighten the Strain Relief Fitting and close the Terminal Cover, follow the next Origin Acoustics Origin Acoustics steps: PC60 terminal PC60 terminal 6975 S Decatur Blvd...
- Page 15 See Figure I: Re- Tighten the Fitting onto Plenum Cable (as shown) / or Bare Wire Figure I Origin Acoustics PC60 terminal 6975 S Decatur Blvd Suite 140...
- Page 16 See Figure J: : Re-Tighten the Fitting onto Conduit (as shown) Figure J Origin Acoustics PC60 terminal 6975 S Decatur Blvd CAUTION: ALWAY ENSURE USE THE CORRECT FITTING IS BEING USED,...
- Page 17 4. Next, make sure all the dog leg (L-shaped) clamps on the speaker are in the upright position and facing to the side, not outwards. Insert the speaker into the hole. Turn the four screws so that the dog legs face outwards and continue turning until they clamp down on the ceiling.
-
Page 18: Drop Ceiling Installation
12. Drop Ceiling Installation The Tile Bridge, consisting of C-bracket and rails, should be used in suspended ceiling installations involving acoustic ceiling tile 2’ x 2’ or 2’ x 4’ . The Tile Bridge can also be used in installations when the speakers are mounted into material that will not support their weight. -
Page 19: Painting The Grille
13. Painting the Grille In some situations the speakers may look better if the color matched the walls, ceiling, or trim in the room. This can be accomplished by painting the grille. The grille must be painted with spray paint, and most hardware stores will mix a can of paint to match whatever color you need. -
Page 20: Safety Agency Compliance
14. Safety Agency Compliance Origin PRO Professional Collection In-Ceiling speakers models PC50B | PC50W, PC60B | PC60W, PC80B | PC80W, & PCSUB8B | PCSUB8W meet the standard: UL 1480A: Standard for Speakers for Commercial and Professional Use Scope: 1.1 These requirements cover speakers for indoor and/or outdoor use in dry, damp, wet, or underwater locations and are intended for one or more of the following: a) Commercial and professional audio systems providing non-emergency sound reinforcement and reproduction in accordance with the National Electrical Code,... - Page 21 Standard for Commercial Audio Equipment, UL 813; the Standard for Professional Video and Audio Equipment, UL 1419; and the commercial audio amplifier applications covered in UL 6500; and d) Speakers intended for security applications; these products are covered in the Standard for Local Burglar Alarm Units and Systems, UL 609;...
- Page 22 National Electric Code, NFPA 70; International Mechanical Code, NFPA 5000; Stan- dard for the Installation of Air Conditioning and Ventilating Systems, NFPA 90A. 1.4 This test method does not provide information on the performance of products in other fire or test conditions. This test does not investigate the toxicity of the products of combustion.
- Page 23 Informational Note: This standard addresses safety of workers whose job responsibilities entail interaction with electrical equipment and systems with potential exposure to energized electrical equipment and circuit parts. Concepts in this standard are often adapted to other workers whose exposure to electrical hazards is unintentional or not recognized as part of their job responsibilities.
-
Page 24: Troubleshooting
15. Troubleshooting If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with another audio source to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 25: Technical Assistance
16. Technical Assistance If you have any questions or concerns about installing or using this product, you can reach us through one of the following methods: Phone: (844) 674-4461 Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri If you are having technical trouble, please have your model number ready and be prepared to explain briefly what steps you took to resolve the problem, to be best helped over the phone. -
Page 26: Return Process
Requirements & Warranty Coverage This warranty may not be valid if the product was purchased through an unauthorized dealer. This warranty only applies to the individual that made the original purchase, and it cannot be applied to other purchases. The purchaser must be prepared to provide proof of purchase (receipt). - Page 27 01-05-24 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originpro.com • 844-674-4461 ©2023 Origin PRO. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin PRO.
