Summary of Contents for Thermo Scientific 4625

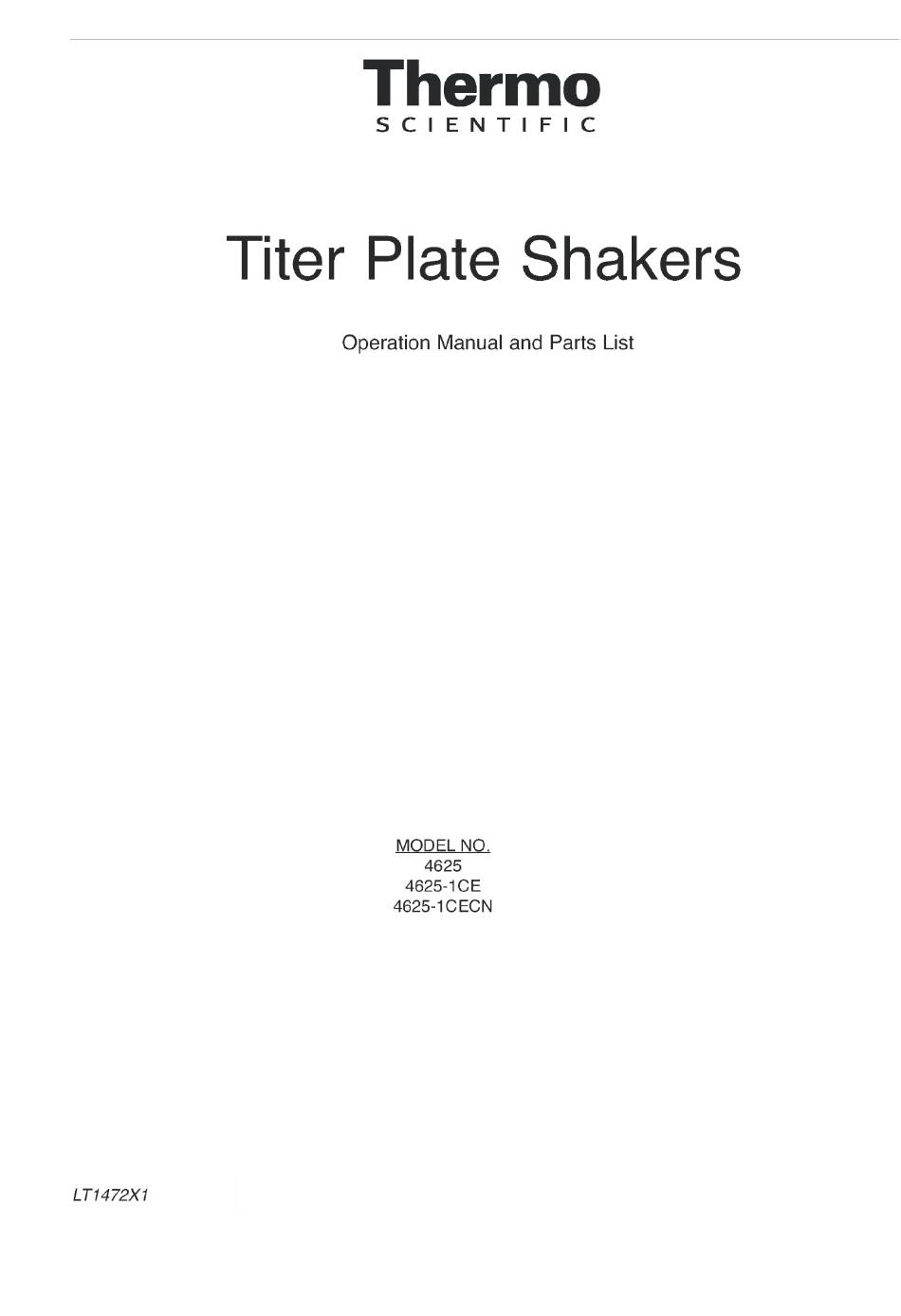

- Page 1 9/3/10...
-
Page 2: Table Of Contents
Table of Contents Safety Information ..............................3 Alert Signals ..............................3 Warnings ..............................3 General Specifications ............................5 Description ................................7 Installation ................................8 Shipping Carton............................8 Leveling ................................8 Electrical Requirements ..........................8 Operation ................................9 Controls ................................9 Loading the Platform ............................9 Starting/Stopping the Shaker ........................10 Setting the Speed Control ..........................10 Power Mains Protection ..........................10 Maintenance ..............................10 Replacing Parts ............................11... -
Page 3: Safety Information
Safety Information Alert Signals Your Thermo Scientific Lab-Line Titer Plate Shaker has been designed with function, reliability, and safety in mind. It is your responsibility to install it in conformance with local electrical codes. For safe operation, please pay Warning attention to the alert signals throughout the manual. - Page 4 AFETY NFORMATION Use equipment only for its intended purpose. Use only the accessories and attachments that are shipped with the equipment or are specified for it. Substituting other attachments or acces- sories can produce hazards or make the unit inoperative. Perform regular maintenance service as speci- fied in this manual and keep unit in good repair.
-
Page 5: General Specifications
General Specifications POWER REQUIREMENTS: Model 4625: 120 VAC, 60 Hz, 20 Watts, 0.4 Amp Model 4625-1CE: 220-240 VAC, 50 Hz, 24 Watts, 0.3 Amp Model 4625-1CECN 220-240 VAC, 50 Hz, 24 Watts, 0.3 Amp MOTOR: Continuous-duty rated, high-efficiency DC motor features high torque, full ball-bearing construction, and ceramic permanent magnets. - Page 6 Thermo Fisher Scientific Robert-Bosch-Strasse 1,D-63505 Langenselbold,Germany...
-
Page 7: Description

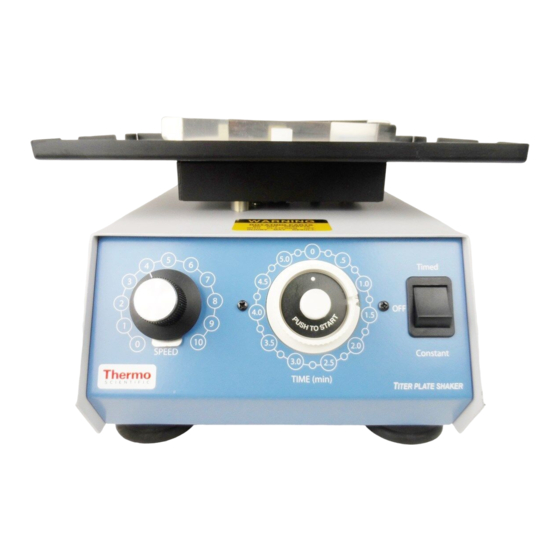

Description Thermo Scientific Lab-Line Titer Plate Shakers are sturdy, heavy-duty units designed to produce an accurate 0.120- inch orbital shaking motion that is ideal for many kinds of laboratory work with titer plates. Controls are clearly marked, self-explanatory and make the shaker easy to use and operate. -
Page 8: Installation
Installation Shipping Carton This should be inspected upon delivery. When received, carefully examine for any shipping damage before unpacking. If damage is discovered, the delivering carrier should specify and sign for the damage on your copy of the delivery receipt. Open the carton carefully making certain that all parts are accounted for before packaging materials are discarded. -
Page 9: Operation
Operation TIMED CONSTANT SPEED TIME (min) Speed Control Kbob Timer Switch Controls Control Panel Located on the front panel are easily accessible controls, from left to right: speed control, timer and selector switch. Warning Speed control: rotate knob clockwise to increase shaking Do not use in the presence of speed and counterclockwise to decrease the speed. -
Page 10: Starting/Stopping The Shaker
PERATION Starting/Stopping the Shaker Note If the equipment is used in a manner • For continuous shaking action, push the selector not specified by the manufacturer, switch to the CONSTANT position. the protection provided by the equip- ment may be impared. •... -
Page 11: Maintenance
4 screws holding the platform and lift off. Warning Silicone rubber tubing is available from most laboratory supply houses or from Thermo Scientific. Use 1/4" ID x Do not operate shaker without plat- 7/16" OD and cut to 1-5/16" length. -
Page 12: Motor Brushes
AINTENANCE Motor Brushes: Motor brushes should be checked every three months for wear. Turn the unit upside down and remove bottom casting to expose the motor. 2 brushes are located under plastic caps on opposite sides of the lower part of the motor. -
Page 13: Replacement Parts
Cordset 4625-1CE: CR1472X2 Cordset 4625-1CECN CRM1882X1 Motor 4625: MT1472X1 Motor 4625-1CE: MT1472X2 Eccentric Shaft Assembly: 015-372-00 Fuse 5x20, 4 A, 4625-1CE (2): FZX53 Motor Brush Set: 370-277-00 Platform Mat: 790-316-01 Retaining Ring, 11/16": 500-339-00 Retaining Spring (2): 850-083-00 Rubber Feet (4):... -
Page 14: Ordering Procedures
800-943-2006 or 800-926-0505... -
Page 15: Warranty
North America: USA/Canada +1 866 984 3766 (866-9-THERMO) www.thermo.com Europe: Austria +43 1 801 40 0, Belgium +32 2 482 30 30, France +33 2 2803 2180, Germany national toll free 08001-536 376, Germany international +49 6184 90 6940, Italy +39 02 02 95059 434-254-375, Netherlands +31 76 571 4440, Nordic/Baltic countries +358 9 329 100, Russia/CIS +7 (812) 703 42 15, Spain/Portugal +34 93 223 09 18, Switzerland +41 44 454 12 12, UK/ Ireland +44 870 609 9203...
