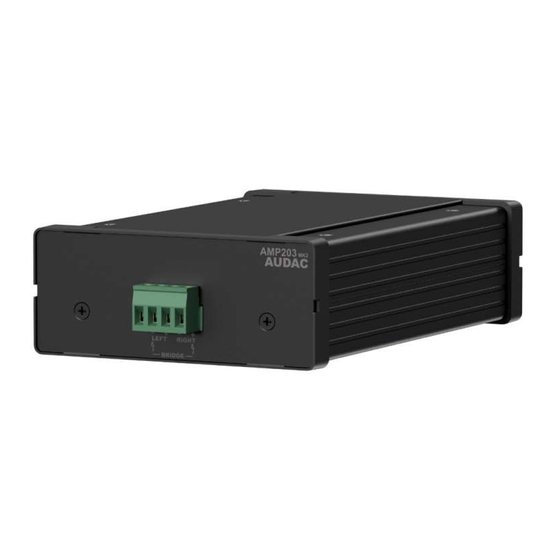

- Page 1 AMP203 commands manual Index Using the commands Configuration and settings commands Routing commands Volume + Mute commands...
- Page 3 Using the commands The commands can be sent to the AMP203 by IP or using a serial RS485 connection. Please refer to the infor- mation below on how to connect to the AMP203: RS485 Configuration details RJ45 (RS485, Digital audio, +24V DC): For connection to Wall Panels &...
- Page 4 Command overview Startsymbol | Destination | Source | Command | Argument(s) | Checksum | Stopsymbol Each command is followed by an ‘x’ character, which represents the number of the slot whereto the command is sent. If the audio player doesn’t support multiple slots, the number ‘1’ shall always be used.
- Page 5 CONFIGURATION AND SETTINGS COMMANDS Get info about the ip address, subnet mask and gateway the AMP203 is using: Command: Arguments: None (0) Feedback: dhcp^ip4.ip3.ip2.ip1^mask4.mask3.mask2.mask1^gw4.gw3.gw2.gw1^ DHCP: dhcp ON(1) or OFF(0) IP: IP4 address of unit MASK: subnet mask GW: IP4 address of gateway Example: Get info about the IP address #|S001|F001|GIP||crc|<CR><LF>...
- Page 6 ROUTING COMMANDS SRD01 Set program down Command: SRD01 Arguments: None (0) Feedback: + : acknowledge SRU01 Set program down Command: SRU01 Arguments: None (0) Feedback: + : acknowledge SR01 Set routing Command: SR01 Arguments: y: 1-4 are Dante channels 1-4 y: 5 is ch1+2 y: 6 is ch+4 y: 7 is ch2+1...
- Page 7 VOLUME + MUTE COMMANDS SVU01 Set volume up Command: SVU01 Arguments: None (0) Feedback: + : acknowledge SVD01 Set volume down Command: SVD01 Arguments: None (0) Feedback: + : acknowledge SV01 Set same volume for left and right channel Command: SV01 Arguments: y: 70 (refers to -70dB, lowest level)
- Page 8 SGIA Set gain for all channels Command: SGIA Arguments: x1: gain channel 1 x2: gain channel 2 x3: gain channel 3 x4: gain channel 4 for every channel the gain will be set (-110 up to +24) Feedback: + : acknowledge GGIA Get gain for all channels Command:...
