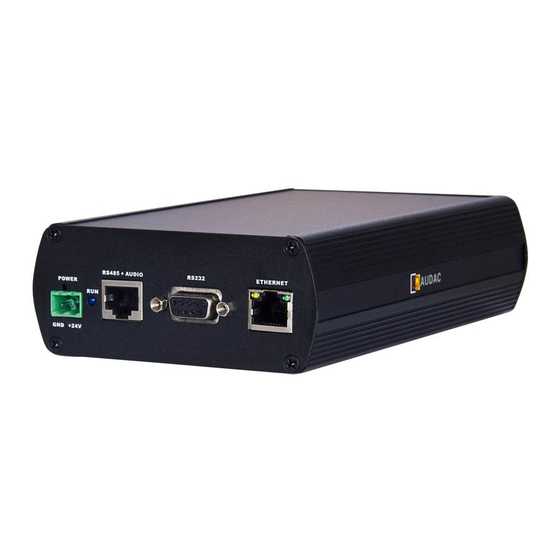

AUDAC AMP523 Command Manual

Hide thumbs Also See for AMP523:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
AMP523 Commands user manual
Index
Introduction
Input list
Using the commands
SV01
Set Master Volume
SVU01
Set Master Volume Up 3dB
SVD01
Set Master Volume Down 3dB
SVL
set Volume WLI input
SVM
Set Volume Mic/WMI input
GSA
Get all main screen settings
SR01
Set Routing
SRU01
Set Routing Up
SRD01
Set Routing Down
SB01
Set Bass
ST01
Set Treble
SM01
Set Mute
SAVE
SAVE Volume/Routing settings
DEF
Load factory settings
GSV
Get Software Version
2
2
4
4
4
4
4
5
5
5
6
6
6
6
7
7
7
7
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMP523 and is the answer not in the manual?

Questions and answers

Related Manuals for AUDAC AMP523

Summary of Contents for AUDAC AMP523

  • Page 1 AMP523 Commands user manual Index Introduction Input list Using the commands SV01 Set Master Volume SVU01 Set Master Volume Up 3dB SVD01 Set Master Volume Down 3dB set Volume WLI input Set Volume Mic/WMI input Get all main screen settings...

  • Page 2: Input List

    Introduction Welcome to the command user manual of the AUDAC AMP523 . For more info about the AMP523 see the AMP523 manual. Input list Line 1 Line 2 Line 3 Line 4 WLI-WMI/MIC...

  • Page 3: Using The Commands

    - return = 0x0d 0x0a Command flow 1) The client sends a command to the AMP523 2) The AMP523 acknowledges the command by returning the same command and a ‘+’ as Argument. 3) The AMP523 updates all client’s with the new information All volume, routing and tone settings will be lost if the device is switched off.
  • Page 4 SV01 Set output volume to a level Command: SV01, Arguments: Volume in neg dB, 0 is maximum volume, 80 is minimum volume Example Set volume in zone 2 to -30dB Command #|X001|F001|SV01|30|58ab|return Answer #|F001|X001|SV01|+|ead6|return Update #|ALL|X001|V01|30|aa95|return SVU01 Set volume up with 3dB Command: SVU01, Arguments: 0 (none) Example...
  • Page 5 Set volume Mic/WMI input Command: SVM Arguments: Volume in neg dB, 0 is maximum volume, 80 is minimum volume Example Set Mic/WMI volume to -30dB Command #|X001|F001|SVM|30|9fe9|return Answer #|F001|X001|SVM|+|22ec|return Update #|ALL|X001|VM|30|20af|return Get website main screen settings Command: GSA Arguments: 0 (none) Example Get all settings from main screen Command...
  • Page 6 SRU01 Set Routing up Command: SRU01 Arguments: 0 (none) Example Increase routing Command #|X001|F001|SRU01|0|16fc|return Answer #|F001|X001|SRU01|+|0683|return Update #|ALL|X001|R01|5|45e7|return SRD01 Set Routing down Command: SRD01 Arguments: 0 (none) Example Decrease routing Command #|X001|F001|SRD01|0|57ff |return Answer #|F001|X001|SRD01|+|4780 |return Update #|ALL|X001|R01|4|d5e6 |return SB01 Set bass Command: SB01 Arguments: from 0 to 14.
  • Page 7 SM01 Set mute state in a zone Command: SMXX Arguments: 0 (disable) or 1 (enable) Example Enable mute in zone 1 Command #|X001|F001|SM01|1|55a1|return Answer #|F001|X001|SM01|+|01d5|return Update #|ALL|X001|M01|1|eae7|return SAVE Save’s the current zone settings (routing, volume, bass, treble) Command: SAVE Arguments: 0 (none) Example Command #|X001|F001|SAVE|0|f1b3|return...
