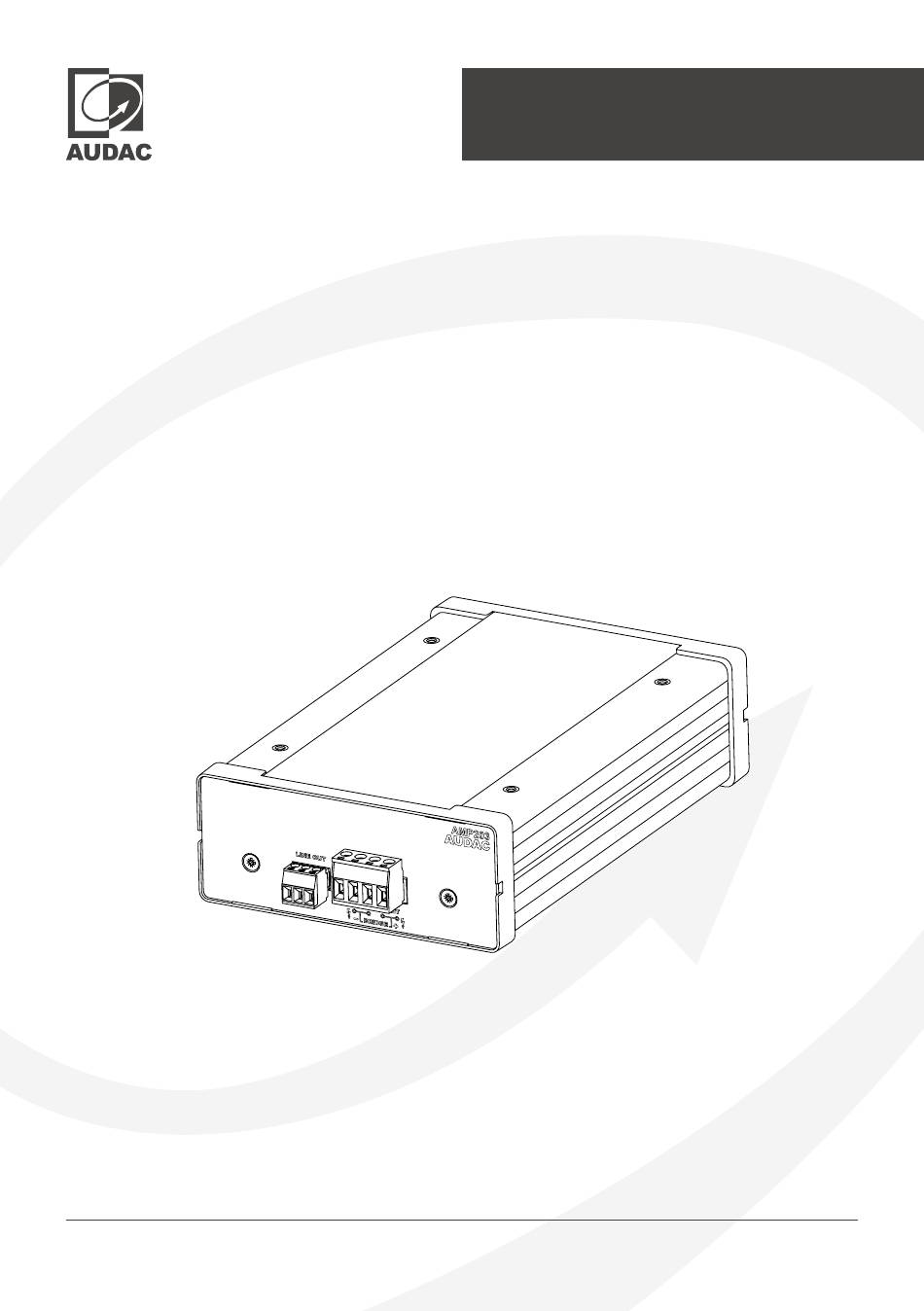

- Page 1 User manual AMP203 audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ www.audac.eu. AMP203 - User manual...
-
Page 3: Table Of Contents
Audac Touch™ 2 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �... - Page 4 AMP203 - User manual...
-
Page 5: Introduction
Introduction Dante mini stereo amplifier The AMP203 is a revolutionary small amplifier, featuring a Dante audio input over IP providing a complete media networking solution to distribute uncompressed audio via standard Ethernet networks with near-zero latency while allowing all other data to be connected on the same network. The output connector has been implemented using a 4-pin and a 3-pin terminal block connector, featuring an output power of 30W per channel and 60W when bridged. -
Page 6: Precautions
Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET. - Page 7 CAUTION - SERVICING This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to) EC DECLARATION OF CONFORMITY This product conforms to all the essential requirements and further relevant specifications described in following directives: 2014/30/EU (EMC) and 2014/35/EU (LVD) WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) The WEEE marking indicates that this product should not be disposed with regular household waste...
-
Page 8: Connections And Connectors
Chapter 1 Connections and connectors CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed according to international wiring standards for professional audio equipment 3-Pin Terminal block: For unbalanced line output connections Left: Signal left Center: Ground... -
Page 9: Front Panel Overview
Chapter 2 Front panel overview The front panel includes the speaker 2 line output connections. They are implemented using a 4-pin and 3-pin terminal block connectors. The 4-pin terminal block allow stereo output connections as well as parallel bridging. The 3-pin terminal block allow line output connections. -
Page 10: Rear Panel Overview
If the LED blinks slightly slower for 10 seconds, the device is being identified. When the device enters into Bootloader mode, the LED will blink slowly. This means that the device needs a firmware update. The update can be done through the AUDAC Touch™2 application. 3) Ethernet connection: The Ethernet connection is the essential connection for the AMP203. -
Page 11: Chapter 3 011
This chapter guides you through the setup process for a basic AMP203 project where an external Dante source is connected to the network (e.g. AUDAC XMP44). The control of the system is done through an external wall panel or Audac Touch 2. -
Page 12: Configuring The Amp203
Once all connections are made, and the AMP203 is operational, the routing for the Dante audio transfer can be made. For configuration of the routing, the Audinate Dante Controller software shall be used. The use of this tool is extensively described in the Dante controller user guide which can be downloaded from both audac (www.audac.eu) or Audinate (www.audinate.com) websites. - Page 13 Once the Dante routing settings are made through the Dante controller, other settings of the AMP203 itself can be configured using the Audac Touch 2 application, which can be freely downloaded and operated from various platforms. This is very intuitive to be operated and automatically discovers all available compatible products in your network. Available settings include volume, input selection, as well as advanced configurations such as output power limiters and much more.
-
Page 14: Chapter 4 014
Click on the menu icon in the top left corner to let the menu appear. From the menu select “device list”. The device list is an overview of all devices which have been discovered since you created your account. Every time you start up the audac touch application, it automatically scans your network and adds discovered devices to the list. -
Page 15: Settings
It means, if they are all installed throughout the same area, they all will be simultaneously operated by one single control (e.g. volume fader) from the AUDAC Touch™ 2 application. Additionally, a wall panel which is physically connected to one of the linked devices will automatically control all the linked devices. - Page 16 Each input channel can be individually enabled and disabled. Disabling inputs will make them disappear from the inputs selectable in the Audac Touch™ 2 widgets, and they also won’t be selectable from any connected wall panel or peripheral. Settings >> Power Set power The maximum input power of amplifier can be configured here (the power which is drawn from the PoE equipment).
-
Page 17: Chapter 5 017
Chapter 5 Peripheral connections In addition to the controllable functions through Audac Touch™ 2, additional wall control panels can be locally connected (e.g. MWX45 wall panels). This allows basic control functions such as volume control and input selection. When multiple units are configured through TouchLink™, all units within the same configured zone will be responding. -
Page 18: Chapter 6 018
IP Basics Many AUDAC products are controllable by Ethernet. The Ethernet connection which is used on the AUDAC products is TCP/IP based like 99% of the computer networks. There are some basics that you need to know to successfully make a TCP/IP Ethernet connection. - Page 19 DHCP server. If there is no DHCP server available, they will use a link local address. If your network is using a different IP range, the AUDAC products will not be accessible from your network. You can change the IP address of the AUDAC products to make them work properly in your network.
-
Page 20: Technical Specifications
Technical specifications Inputs Audio Type Dante/AES67 (4 Channels) Connector RJ45 with indicator LED’s Other Type RS-485 Connector RJ45 Output Type 1 x Stereo loudspeaker Connector 4-pin Terminal block ~ 5.08mm Type 1 x Line out Connector 3-pin Terminal block ~ 3.81mm Impedance Min load of 2 Ohm (Bridge)/ 4 Ohm (Stereo) Power... - Page 21 Notes AMP203 - User manual...
- Page 22 Notes AMP203 - User manual...
- Page 23 Notes AMP203 - User manual...
- Page 24 Discover more on audac.eu...
