1 Introduction

This user guide describes the operation of the IQS227-228BEV02 Evaluation Kit. The EV-Kit
consists of ten parts, the main board device, six separate plug-in module boards and three
overlays. Additional unprogrammed IC's (3 x IQS227B and 3 x IQS228B) are included. To
visualise raw data from the EV-Kit, the main board can be interfaced to any personal computer
with USB support, and IQS227 or IQS228 software GUI (Graphical User Interface). The purpose of
the IQS227-228BEV02 EV-Kit is to help application and development engineers in evaluating the
IQS227B and IQS228B proximity and touch sensor in self-capacitance mode.

2 Standalone/Data Streaming EV-Kit

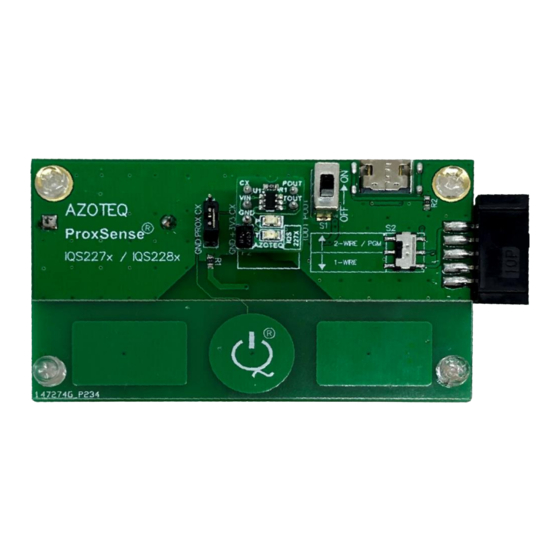

Figure 2.1 illustrates the evaluation kit main board and a plug-in module board.
Main board
Figure 2.1 IQS227B/228B main board with plugged in IQS228B module board
Copyright © Azoteq (Pty) Ltd 2022
All Rights Reserved
IQ Switch
ProxSense
IQS227/8BEV02 User Guide
®
IQ Switch
- ProxSense

Table of Contents

Module board
IQS227-228BEV02 Evaluation Kit User Guide
Revision 1.0
®
®
Series
®
Series
Page 1 of 10
November 2022
