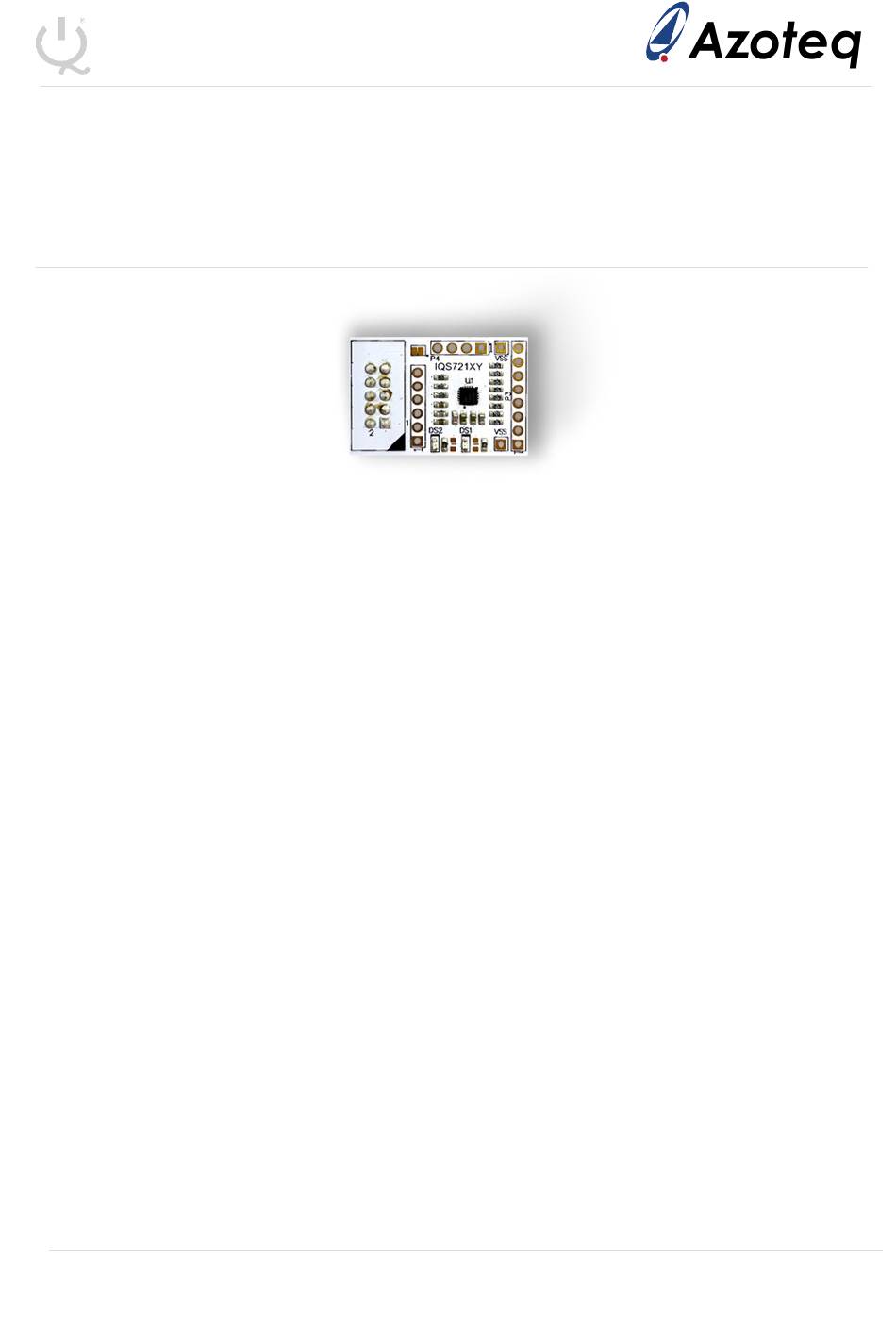

- Page 1 IQ Switch ® ProxFusion ® Series IQS7211AEV01 USER GUIDE ® ® IQ Switch - ProxFusion Series Copyright © Azoteq (Pty) Ltd 2022. IQS7211AEV01 User Guide Page 1 of 7 All Rights Reserved. Revision 1.0 February 2022...
- Page 2 Table of Contents IQS7211AEV01 USER GUIDE .......................... 1 INTRODUCTION ............................3 SETTING UP FOR THE IQS7211A STAMP ..................... 4 REFERENCE DESIGNS ........................... 6 Copyright © Azoteq (Pty) Ltd 2022. IQS7211AEV01 User Guide Page 2 of 7 All Rights Reserved. Revision 1.0...

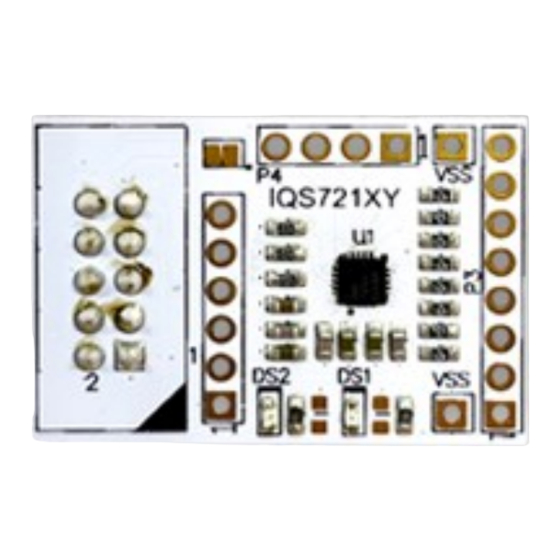

- Page 3 USB support, along with the CT210A and the relevant IQS7211A software Graphical User Interface (GUI) available to download from the Azoteq website. The purpose of the IQS7211AEV01 EV-Kit is to help application and development engineers in evaluating this IC’s capabilities. A picture of the evaluation kit is shown below.
- Page 4 To interface the IQS7211A Stamp to a PC we advise using the CT210A. This EV Kit can be setup with the following steps: ➢ Download & Install GUI from Azoteq website ➢ Plug the stamp board into the CT210A as shown below Copyright ©...
- Page 5 Series ➢ Connect the CT210A to the PC with a USB cable (use USB data cable only) ➢ Run the IQS7211A GUI (latest version available from the www.azoteq.com website) ➢ Click “Start Streaming” button ➢ GUI should look as follow.
- Page 6 IQ Switch ® ProxFusion ® Series Reference Designs Figure 3-1 IQS7211A QFN20 Stamp Layout Copyright © Azoteq (Pty) Ltd 2022. IQS7211AEV01 User Guide Page 6 of 7 All Rights Reserved. Revision 1.0 February 2022...
- Page 7 Azoteq assumes no liability for any damages or injury arising from any use of the information or the product or caused by, without limitation, failure of performance, error, omission, interruption, defect, delay in operation or transmission, even if Azoteq has been advised of the possibility of such damages.
