STILLA Acacia S3105 Assembly Instructions Manual

Hide thumbs Also See for Acacia S3105:

Advertisement

Quick Links

Download this manual
STILLA

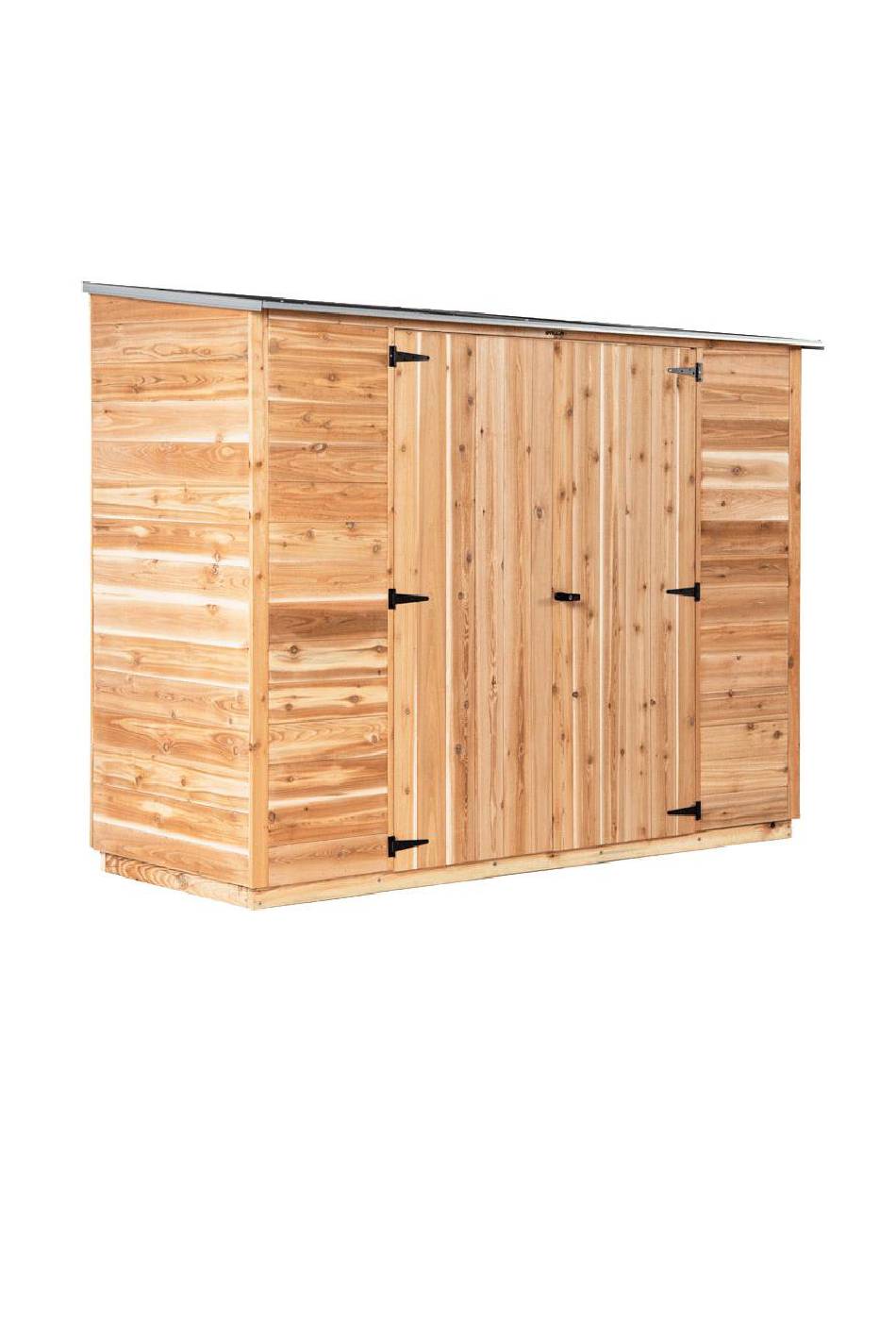

ASSEMBLY INSTRUCTIONS
'Acacia' 8x3
S3105
Every part needed to construct your shed is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Acacia S3105 and is the answer not in the manual?

Questions and answers

Related Manuals for STILLA Acacia S3105

Summary of Contents for STILLA Acacia S3105

  • Page 1 STILLA ASSEMBLY INSTRUCTIONS ‘Acacia’ 8x3 S3105 Every part needed to construct your shed is included inside the pack; cedar panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully unpack all the parts & check against the parts checklist before contacting...
  • Page 2 • If you are installing your shed on the Stilla heavy duty floor, this can be placed on unlevelled surfaces and levelled up by using the 100x100 stumps provided.
  • Page 3 ACACIA 8x3 PARTS CHECKLIST Part Code Checked Part Description Cedar Clad Panel 1200x1890mm Tapered Panel (Left) 900x1875mm Tapered Panel (Right) 900x1875mm Cedar Clad Front Panel 495x1805mm 8x3 Door 700x1770mm (Full Cedar) Corner Post (2 x 1890mm - 2 x 1805mm) Cover Strip 1890x40x7mm Door Step 1410x42x19mm 1040mm Roof Sheeting...
  • Page 4 If no floor option was purchased, go to step 2.0 (Wall Assembly) SKIP TO BACK FOR IMAGES TO HELP WITH FLOOR INSTALL STEP 1.0 FLOOR KIT 1.0 – FLOOR KIT (1 of 2 floor frames) PART CODE QTY DESCRIPTION End Plate 1242mm Single Joist 824mm Double Joist 824mm 100BS...
  • Page 5 STEP 1.1 FLOOR FRAME INSTALLATION The 8x3 floor frame comes in two parts. Install first floor frame in desired position at desired height and fasten to logs once level and square, then join and fasten next frame and repeat. 1.1 – FLOOR FRAME INSTALLATION PART CODE QTY DESCRIPTION Logs 750x100x100mm...
  • Page 6 STEP 1.2 FLOOR NOG INSTALLATION 1.2 – FLOOR NOG INSTALLATION PART CODE QTY DESCRIPTION Floor Nog 376x42x35mm 65HHS 65mm Hex Head Screws 1.2 – FLOOR NOG INSTALLATION Mark out measurements shown below (centre of nog). Fasten Floor Nogs (FN) in positions shown in diagram below using 1x 65HHS per join.

  • Page 7: Floor Installation

    STEP 1.3 FLOOR INSTALLATION 1.3 – FLOORING INSTALLATION PART CODE QTY DESCRIPTION Floor Board 1798x485mm Floor Board 598x485mm Floor Board 1798x326mm Floor Board 598x326mm 50PS 50mm Philips Screw 1.3– FLOORING INSTALLATION Fasten floor sheets to floor frame as shown in diagram below using 50PS. Bring Floor sheets in 43mm on all 4 sides from the outside of the floor frame.

  • Page 8: Wall Assembly

    STEP 2.0 WALL ASSEMBLY 2.0 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION Front panel Tapered panel left 65HHS 65mm hex head screw 1.0 - ASSEMBLY – WALL ASSEMBLY Screw through FP into LP (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on the outside) Note –...
  • Page 9 STEP 2.1 WALL ASSEMBLY 2.1 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 1200mm panel 65HHS 65mm hex head screw 2.1 - ASSEMBLY – WALL ASSEMBLY Screw through P into LP (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the outside.
  • Page 10 STEP 2.2 WALL ASSEMBLY 2.2 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 1200mm panel 65HHS 65mm hex head screw 2.2 - ASSEMBLY – WALL ASSEMBLY Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the inside.
  • Page 11 STEP 2.3 WALL ASSEMBLY 2.3 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION Tapered panel right 65HHS 65mm hex head screw 2.3 - ASSEMBLY – WALL ASSEMBLY Screw through P into RP (top, centre & bottom) using 3 x 65HHS holding studs flush on the outside.
  • Page 12 STEP 2.5 DOOR HEAD INSTALLATION 2.5 - ASSEMBLY PARTS – DOOR HEAD INSTALLATION PART CODE QTY DESCRIPTION 6x3 Door Head 1800mm 8x3 Door Head (300 pieces) 40mm Nail 2.5 - ASSEMBLY – DOOR HEAD INSTALLATION Place DH in position and fasten through DH into FP using 2 x 40N at each end. Position 300 pieces at ends of DH and fasten into FP using 2x 40N per piece.
  • Page 13 STEP 2.6 DOOR STEP INSTALLATION 2.6 - ASSEMBLY PARTS –DOOR INSTALLATION PART CODE DESCRIPTION Door Step 40mm Nail 2.6 - ASSEMBLY –DOOR INSTALLATION Nail through DS into floor frame (if floor option was not chosen fasteners are not supplied) 12 | P a g e...

  • Page 14: Roof Assembly

    STEP 3.0 ROOF ASSEMBLY 3.0 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 1040mm roof sheet 3.0 - ASSEMBLY – ROOF ASSEMBLY Lay RS x 3 down on a flat hard surface and overlap until full measurement is 2565mm. Bent up edge goes at the back of the shed.
  • Page 15 STEP 3.1 ROOF ASSEMBLY 3.1 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 1300mm L flashing 1283mm C channel Self-tapping screw 3.1 - ASSEMBLY – ROOF ASSEMBLY Place L on RS (Roof Sheets) as shown in picture. Screw through top, 1 Rib in from each end and into each join of sheet (6 times all up) using ST x 4.
  • Page 16 STEP 3.2 ROOF ASSEMBLY 3.2 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 1040mm L flashing Self-tapping screw 3.2 - ASSEMBLY – ROOF ASSEMBLY Place L into position, as shown in picture. Screw through L into L at back and C at front. Screw threw 1040L into roof sheet (RS) in centre.

  • Page 17: Roof Installation

    STEP 3.4 ROOF INSTALLATION 3.4 - ASSEMBLY PARTS – ROOF INSTALLATION PART CODE DESCRIPTION Assembled Roof 40RS 40mm Roof screw 3.4 - ASSEMBLY – ROOF INSTALLATION Slide roof into position with L at back. Roof must hang over back walls by 20mm and even hangover on side walls.

  • Page 18: Door Installation

    STEP 4.0 DOOR HINGE ASSEMBLY 4.0 - ASSEMBLY PARTS –DOOR HINGE ASSEMBLY PART CODE DESCRIPTION Hinge Hinge Screw Door 4.0 - ASSEMBLY –DOOR HINGE ASSEMBLY Place door on back and hold hinge (H) in position. Fasten hinges to door using 3 x hinge screws (HS) per hinge.
  • Page 19 STEP 4.2 PAD BOLT INSALLATION 4.2 - ASSEMBLY PARTS – PAD BOLT INSTALLATION PART CODE DESCRIPTION Pad bolt 4.2 - ASSEMBLY – PAD BOLT INSTALLATION Hold PB in position and fasten to door. Mark centre of bolt (while closed) and drill 12mm hole in marked position.
  • Page 20 STEP 5.0 CORNER POST ASSEMBLY 5.0 - ASSEMBLY PARTS – CORNER POST ASSEMBLY PART CODE QTY DESCRIPTION 1890mm Corner Post 1805mm Corner Post 40mm Nail 5.0 - ASSEMBLY – CORNER POST ASSEMBLY Hold corner post (CP) in position, nail through CP into wall stud using 6x 40N evenly spaced along CP.
  • Page 21 STEP 5.1 COVER STRIP ASSEMBLY 5.1 - ASSEMBLY PARTS – COVER STRIP ASSEMBLY PART CODE QTY DESCRIPTION 1890mm Cover Strip 40mm Nail 5.1 - ASSEMBLY – COVER STRIP ASSEMBLY Hold cover strips (CS) over joins in walls, nail through CS into wall panel using 6x 40N evenly spaced per CS.
  • Page 22 STEP 5.2 FASTENING WALLS TO FLOOR 5.2 - ASSEMBLY PARTS – FASTENING WALLS TO FLOOR PART CODE QTY DESCRIPTION 65HHS 65mm hex head screw 5.2 - ASSEMBLY – FASTENING WALLS TO FLOOR Ensure walls are in correct position and straight. Fasten through wall bottom plate in positions shown below.
  • Page 23 IMAGES TO HELP WITH INSTALLATION FLOOR 22 | P a g e...
  • Page 24 23 | P a g e...
  • Page 25 24 | P a g e...
  • Page 26 25 | P a g e...
  • Page 27 26 | P a g e...
  • Page 28 27 | P a g e...
  • Page 29 28 | P a g e...
  • Page 30 29 | P a g e...

  • Page 31: Product Maintenance

    TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.stilla.com.au/warranty and complete the online form. We recommend that you complete this step once you have finished installing your product.
  • Page 32 SHOW US YOUR SHED We would love to see a photo of your STILLA product installed in your backyard. Please upload this image when completing the warranty registration. Alternatively, you can send the photos by email to sales@stilla.com.au. If you require any assistance, please feel free to call or email.
