- Page 1 Fingerprint Access Control Card Reader User’s Manual V1.0.1...
-
Page 2: Table Of Contents
Table of Contents 1 Overview ..........................1 2 Device Structure ........................2 3 Device Installation ....................... 4 4 System Framework ......................6 4.1 Wiring ..........................6 4.2 System Framework ......................6... - Page 3 Important Safeguards and Warnings Please read the following safeguards and warnings carefully before using the product in order to avoid damages and losses. Note: Do not expose the device to lampblack, steam or dust. Otherwise it may cause fire or electric shock. Do not install the device at position exposed to sunlight or in high temperature.
-
Page 4: Overview

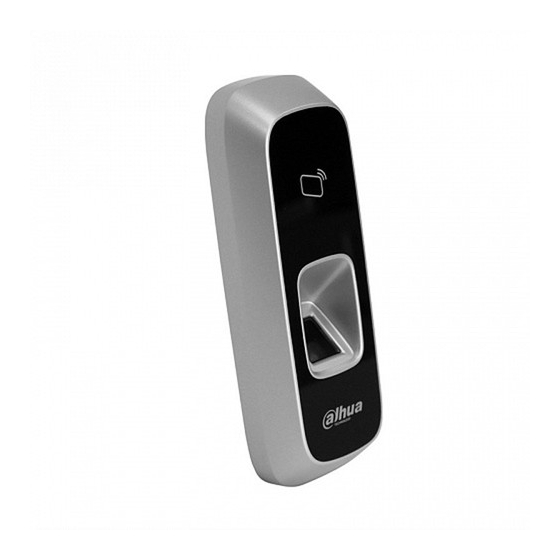

1 Overview Fingerprint Access Control Card Reader is a biometric recognition device and also a complement to video monitoring and visual talk. Its appearance is neat and fashionable, and its function is enhanced. It is designed for commercial building, corporation property and intelligent community. -
Page 5: Device Structure
2 Device Structure Fingerprint Access Control Card Reader’s dimension is shown in Figure 2- 1and Figure 2- Figure 2- 1... - Page 6 Figure 2- 2...
-
Page 7: Device Installation
3 Device Installation Fingerprint Access Control Card Reader’s installation illustration and steps are: Step 1. Remove front cover, fix the device on wall via screw 1. See Figure 3- 1. Figure 3- 1 Step 2. Put back front cover. Fix cover on the device via screw 2. See Figure 3- 2. - Page 8 Figure 3- 2...
-
Page 9: System Framework
4 System Framework 4.1 Wiring Fingerprint Access Control Card Reader has 8-pin wiring, see Chart 4- 1. Color Port Note Protocol DC 12V power Black ALARM_OUT Weigand vandal-proof Blue alarm output White Weigand signal line 1 Weigand protocol Green Weigand signal line 0 LED/BELL_CTRL Weigand swiping card Brown... - Page 10 Figure 4- 1 Note: This manual is for reference only. Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice. All trademarks and registered trademarks are the properties of their respective owners.
