- Page 1 CHARGING STATION « I-STATION» User manual...
- Page 2 USER MANUAL I-STATION © Copyright This documentation with all illustrations is the intellectual property of PC "AE FACTORY". All documentation is provided to the user for personal use only. This documentation may not be reproduced or provided to others without our written permission. Any violation of the law will be prosecuted.
-
Page 3: Table Of Contents
USER MANUAL I-STATION CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....................... 4 1. GENERAL INFORMATION ..........................6 1.1 INTRODUCTION ............................6 1.2 TECHNICAL CHARACTERISTICS ......................6 1.4 CONNECTORS CHARACTERISTICS ....................8 1.5 CHARGING STATION MODIFICATIONS ..................9 2 PACKAGE ................................10 3 MARKING ................................14 4 INSTALLATION .............................. -
Page 4: Important Safety Instructions
USER MANUAL I-STATION IMPORTANT SAFETY INSTRUCTIONS This operating manual includes the necessary sections of technical characteristics, maintenance rules, as well as safety instructions and recommendations for the operation of the station. Before starting work, it is necessary to carefully study all the rules and recommendations given in the instructions, and observe them during operation. - Page 5 USER MANUAL I-STATION Strict adherence to the safety procedures described in these operating instructions and special care when using the equipment are essential to prevent and reduce the likelihood of injury or damage to the equipment. The manufacturer is not responsible for any direct or indirect damages resulting from the use or work with the electrical circuits of the equipment or software described in this manual.
-
Page 6: General Information

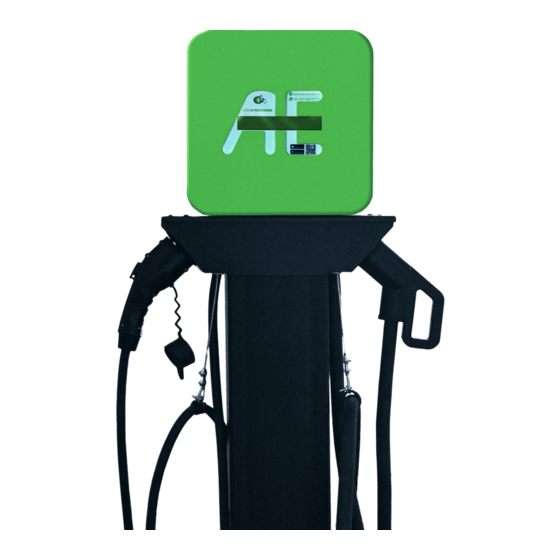

USER MANUAL I-STATION 1. GENERAL INFORMATION 1.1 INTRODUCTION I-STATION – is a charging station (station) designed for safe and efficient charging of electric vehicles in the specially equipped places (car parks, offices, shopping malls, etc.). It can be installed indoors or outdoors. The charging station (depending on the configuration) can simultaneously AC charging up from one to three electric vehicles. - Page 7 USER MANUAL I-STATION RFID- card (IEC 14443-1); Charging station’s authorization Smartphone app; Chip-tag (extra option) Operating temperature - 35 °C … + 50 °C no more than 95% without moisture Relative humidity condensation Dimensions (H×W×D), mm Station with 2 connectors (Type 1, Type 2) 520×365×130...
-
Page 8: Connectors Characteristics
USER MANUAL I-STATION 1.4 CONNECTORS CHARACTERISTICS Type 1 (SAE-J1772) Charging connector Maximum power per socket 9,2 kW 18,4 kW Maximum current per socket 40 A 80 A Maximum socket voltage 230 V Cable length 6,5 m Type 2 (Mennekes) Charging connector... -
Page 9: Charging Station Modifications
USER MANUAL I-STATION Type 2 socket with hinged lid Charging socket Maximum power per socket 22 kW Maximum current per socket 3×32 A Maximum socket voltage 400 V E-bike (CEE-7/3) with hinged lid Charging socket Maximum power per socket 3,7 kW... -
Page 10: Package
• 27,6 ••• * E-bike socket is used for wall mounting stations only. 2 PACKAGE EV charging station I-STATION can be supplied in various package, depending on the installation method. Wall mounting EV charging station I-STATION User manual Mounting plate... - Page 11 USER MANUAL I-STATION Pedestal mounting EV charging station I-STATION with pedestal User manual Inserts Nut M16 Washer 16 Additional accessories 2-3 (according to the number of Cable bracket connectors) Figure 1а. Station external view and station dimensions for wall mounting (Type 1, Type 2)
- Page 12 USER MANUAL I-STATION Figure 1b. Station external view and station dimensions for pedestal mounting (Type 1, Type 2) Figure 1c. External view and dimensions of the station with three connectors Type 1, Type 2, GB/T AC (wall mounting)
- Page 13 USER MANUAL I-STATION Figure 1d. External view and dimensions of the station with three connectors Type 1, Type 2, GB/T AC (pedestal mounting) The station can be branded if it is specified in the contract with the customer.
-
Page 14: Marking
USER MANUAL I-STATION 3 MARKING The nameplate is located on the left side of the charging station enclosure. The nameplate specifies information such as the model, serial number and basic technical specifications. 4 INSTALLATION 4.1 OPERATING LIMITATIONS The charging station is designed exclusively for charging electric vehicles. - Page 15 USER MANUAL I-STATION When choosing a location for the charging station, the following conditions must be met: there must be a distance of at least 1 meter between the charging station body and a wall or any obstacle. There should be enough free space for maintenance in front and behind the enclosure.
- Page 16 USER MANUAL I-STATION Figure 5. Station foundation WARNING! Only qualified personnel should connect the power cable to the AC mains. It is recommended to select the cross-section of the power cable based on the power of the station (copper stranded conductor with a cross-section of 5×16 mm or 5×25 mm...
-
Page 17: Station Connecting
USER MANUAL I-STATION 4.3 STATION CONNECTING After transporting the charging station, before installation, make sure that all internal elements are properly fixed and there are no mechanical damages. Check the quality of wire, loop, and connector connections. Check the tightening torque of terminals, bolts, screws, and switchgear. - Page 18 USER MANUAL I-STATION Figure 6. ATTENTION! THE FIRST CONNECTION THAT MUST BE MADE IS THE GROUND WIRE TO THE GROUND BUSBAR MARKED «PE». DO NOT SWITCH ON THE CHARGER WITHOUT A CONNECTED GROUNDING! Non-compliance with this requirement may result in energizing the charger body, electric shock damage to the service personnel and consumers, as well as in a failure of the charger.
-
Page 19: Operation
Information about the operating modes of the charging station (the state of the connectors and the charging parameters) are displayed on the display. Also, the display shows data about software versions, modem number, station number in Autoenterprise billing, mobile network status, etc. -
Page 20: Connecting The Vehicle
USER MANUAL I-STATION 5.2 CONNECTING THE VEHICLE 5.3 SAFETY MEASURE The control system of the charging station is powered from the mains through an additional circuit breaker. The output cable is connected via cable sleeve / cable glands. -
Page 21: Maintenance
USER MANUAL I-STATION 6 MAINTENANCE WARNING! Improper maintenance can result in serious injury or equipment damage. Charging station can be maintained and repaired by qualified personnel only. CAUTION! The use of explosive or flammable cleaning agents presents a fire or explosion hazard. -
Page 22: Troubleshooting
USER MANUAL I-STATION 7 TROUBLESHOOTING Failure mode Potential cause Remedy Modem failure / SIM card Replace the modem / checke the inoperative status of the SIM-card Lost connection Poor mobile signal strength / with server Modem antenna is out of order /... -
Page 23: Transportation
USER MANUAL I-STATION • Avoid extreme temperature fluctuations. • Storage temperature range: 5 °C to +40 °C (41 °F to 104 °F). • Humidity: < 75%. 9 TRANSPORTATION Charging station can be transported by all means of transport. During transportation, take all necessary measures to ensure protection from atmospheric precipitation, mechanical damages and movements. -
Page 24: Address Of Manufacturer
Phone: +38 097 535 7777 12 LIMITED PRODUCT WARRANTY This Limited Product Warranty (“Warranty”) applies to the charging station I-STATION (“Station”) purchased from manufacturer or one of its authorized distributors. Subject to the exclusions set forth below, manufacturer warrants that the Station will be free from defects for a period of one (1) year after the date of delivery manufacturer’s warehouse... - Page 25 USER MANUAL I-STATION • incorrect electrical, mechanical connection; • misuse or Station usage beyond its intended purpose; • modification or changes in the design of the product without written manufacturer approval; • incorrect installation, assembly/disassembly or relocation of the Station unless performed by manufacturer or authorized service personnel;...
