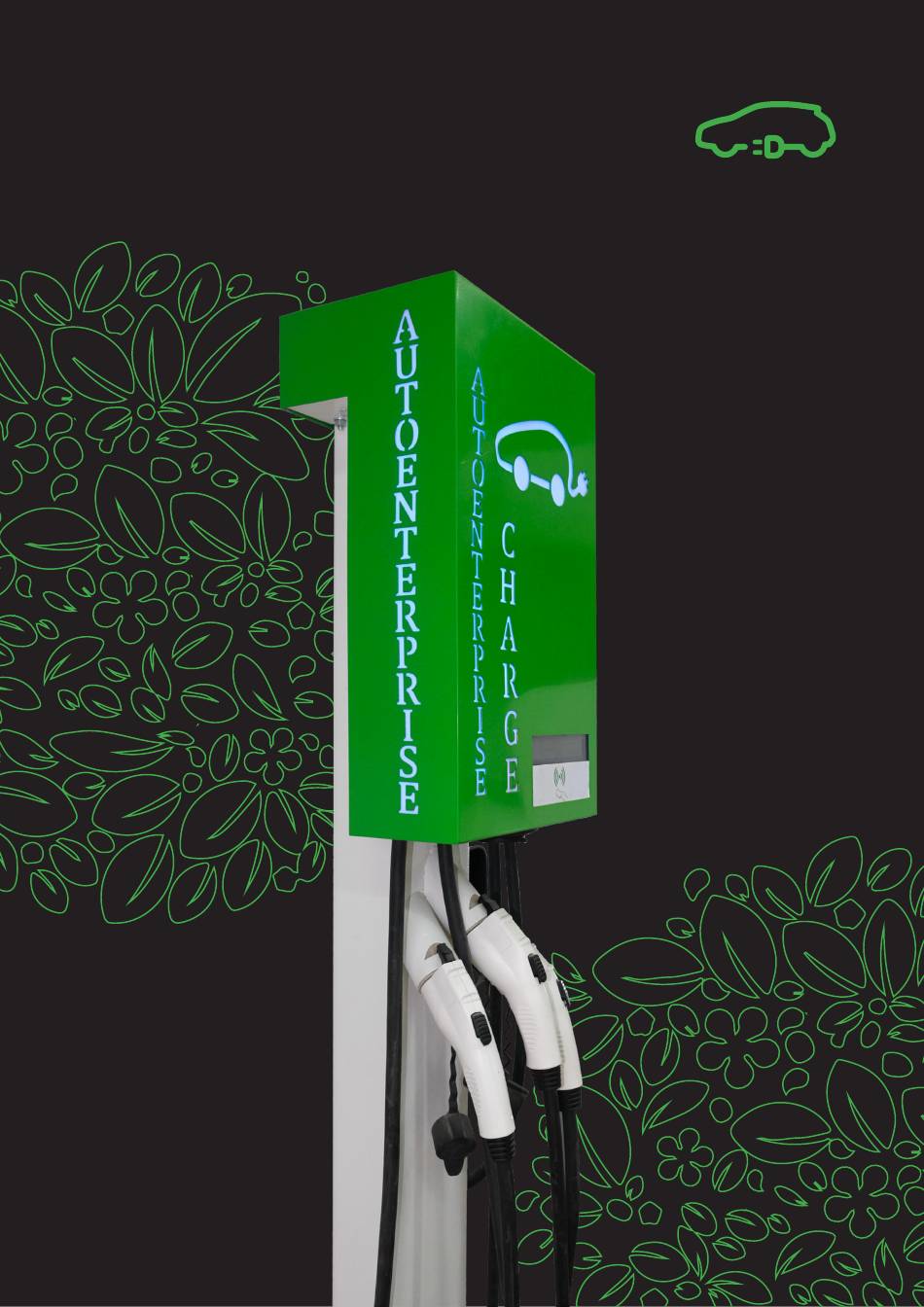

- Page 1 Instruction Manual «EDISON»...
- Page 2 © Copyright This documentation with all illustrations is the intellectual property of AutoEnterprise LLC (“AutoEnterprise”). All documentation is provided to the user for personal use only. This documentation may not be reproduced or provided to others without our written permission. Any violation of the law will be prosecuted.
-
Page 3: Table Of Contents
INSTRUCTION MANUAL EDISON CHARGING STATION TABLE OF CONTENTS 1. Introduction ..........................4 2. Key information ...........................4 2.1 Information about the manual ....................4 2.2 Warning signs ...........................4 2.3 Liability and warranty ......................5 2.4 Disposal information .......................6 2.5 Manufacturer’s label .......................6 3. Application area, station specifications .................7 3.1 Application area ........................7... -
Page 4: Introduction
INSTRUCTION MANUAL EDISON CHARGING STATION 1. INTRODUCTION CHARGING EDISON - is a high quality charging station (hereinafter referred to as «the station»), which is made using the latest solutions in the field of power electronics and technology, based on the modern components combined with the microcontroller signal processing technology, which ensures high efficiency, functionality and reliability of the charger. -
Page 5: Liability And Warranty
Any software included in this equipment must only be used for the purposes for which it has been provided to the User by the AutoEnterprise for which it is strictly prohibited to make any changes, conversions or copies (except for any necessary backups). -
Page 6: Disposal Information
INSTRUCTION MANUAL EDISON CHARGING STATION 2.4 DISPOSAL INFORMATION Do not dispose of the charging station together with household waste! Electronic devices must be disposed of in accordance with the local directives for the disposal of electronic and electrical waste. If you have any further questions, please contact your supplier. -
Page 7: Application Area, Station Specifications
3.1 APPLICATION AREA The charger is designed exclusively for charging electric vehicles. For information about the materials, please contact AutoEnterprise sales representative or contact the AutoEnterprise technical support team. The following sections should also be followed as part of the intended use: •... - Page 8 INSTRUCTION MANUAL EDISON CHARGING STATION Number of vehicles 3 (maximum package) simultaneously connected to one Charging Station Access types RFID-card Smartphone app Chip-tag (extra option) Delivery contents Charging station, user manual Charging station dimensions 350х2500х245 mm The technical characteristics of the station shall be specified in separate specifications and may differ from those agreed upon by the parties.
-
Page 9: Equipment Modifications
All signs, stickers and pictograms attached to the machine must be visible, legible and cannot be removed. Signs, labels or pictograms that have become damaged or illegible must be replaced immediately. Please contact AutoEnterprise to coordinate such questions. 3.4 GENERAL ELECTRICAL SAFETY INFORMATION Follow the safety instructions to avoid injury and material damage when working with the device. -
Page 10: Dimensions, Connectivity
INSTRUCTION MANUAL EDISON CHARGING STATION 4. DIMENSIONS, STATION INSTALLATION 4.1 CHARGER’S DIMENSIONS AND PARAMETERS FRONT VIEW SIDE VIEW The station is structurally designed as a monoblock mounted on a stand and has the following control and management bodies: • Charging station in a casing •... - Page 11 INSTRUCTION MANUAL EDISON CHARGING STATION CHARGING STATION SPECIFICATION Socket and cable type for connecting the station to the electric vehicle: Charging station «EDISON» Current Socket type Quantity Max power, kWh Max voltage, V А Type 1 (SAE J1772) Type 2 (Mennekes)
-
Page 12: Transportation
INSTRUCTION MANUAL EDISON CHARGING STATION Charging station «EDISON 3» Current Socket type Quantity Max power, kWh Max voltage, V А Type 1 (SAE J1772) Type 2 (Mennekes) Charging station «EDISON 4» Current Socket type Quantity Max power, kWh Max voltage, V А... - Page 13 INSTRUCTION MANUAL EDISON CHARGING STATION The power supply (input) cable on the mains side is de-energized by external disconnecting devices. • The mains input has a connection diagram of 1 or 3 phases with separate neutral (N) and ground conductors (PE).
-
Page 14: Storage
INSTRUCTION MANUAL EDISON CHARGING STATION THE FIRST CONNECTION TO BE MADE IS THE GROUND WIRE TO THE GROUND BUSBAR MARKED «PE». DO NOT SWITCH ON THE CHARGER WITHOUT A CONNECTED GROUNDING! Non-compliance with this requirement may result in the energizing the charger body, electric shock damage to the service personnel and consumers, as well as in a failure of the charger. -
Page 15: Maintenance
INSTRUCTION MANUAL EDISON CHARGING STATION 5. MAINTENANCE ATTENTION • Improper maintenance can result in serious injury or damage to the station. For this reason, this work may only be performed by authorized, trained personnel who are familiar with the operating principles of low- voltage electrical equipment and who strictly comply with all relevant safety instructions when working with electrical systems. - Page 16 INSTRUCTION MANUAL EDISON CHARGING STATION Name of malfunction, external manifestation and Probable cause Possible remedy additional signs Loss of communication with Modem failure Replacing the modem or the charging station checking the status of the SIM card Bad location of the antenna...
