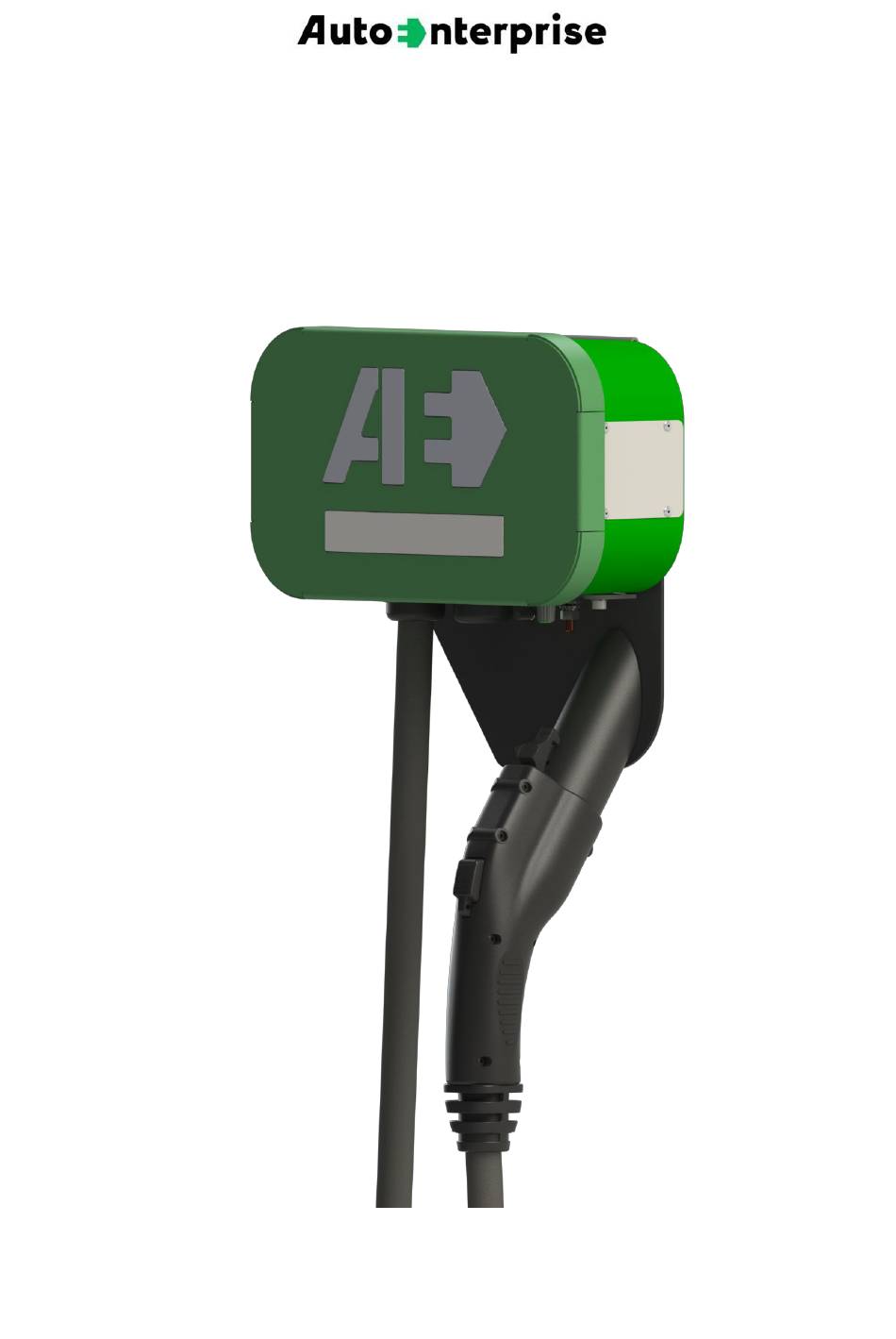

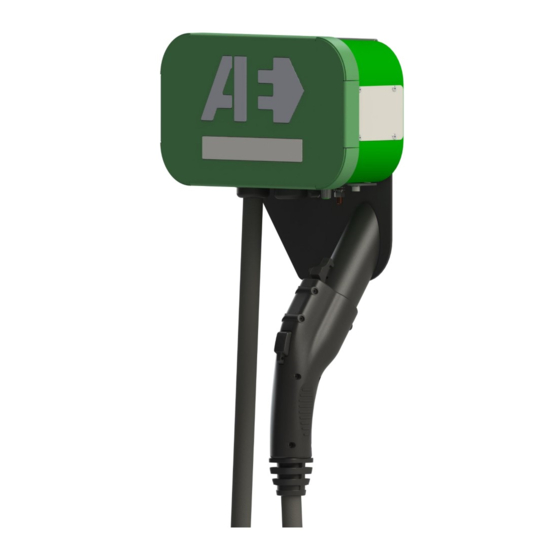

- Page 1 Single CHARGING STATION Operating Manual...
- Page 2 SINGLE OPERATING MANUAL © Copyright This documentation with all illustrations is the intellectual property of the Autoenterprise, Group of Companies. All documentation is provided to the user for personal use only. The entire documentation or any part of it cannot be reproduced or provided to others without the written permission of the developer.
-
Page 3: Table Of Contents
SINGLE OPERATING MANUAL TABLE OF CONTENTS SAFETY PRECAUTIONS ............................4 1. GENERAL INFORMATION ......................... 6 1.1 APPLICATION ............................6 1.2 CHARGING STATION FUNCTIONALITIES ................6 1.3 SPECIFICATIONS ............................7 1.4 CHARACTERISTICS OF THE STATION CONNECTORS ............8 1.5 CHARGING STATION MODIFICATIONS ..................9 2 COMPLETE SET.............................. -
Page 4: Safety Precautions
SINGLE OPERATING MANUAL SAFETY PRECAUTIONS This Operating Instruction contains the necessary sections for technical data, technical maintenance rules, as well as safety instructions and recommendations for operating the Charging Station. Before starting the work, you should carefully study all the rules and recommendations in the Instruction and follow them during operation. - Page 5 SINGLE OPERATING MANUAL efficient and trouble-free operation of the Station. Strict adherence to the safety precautions outlined in these Operating Instructions and extreme care when using the equipment are essential to prevent and to reduce the likelihood of injury or damage to the equipment.
-
Page 6: General Information
SINGLE OPERATING MANUAL 1. GENERAL INFORMATION 1.1 APPLICATION SINGLE is a high-quality Charging Station designed and manufactured using effective solutions in the field of power electronics and technology based on a modern element base, using microcontroller signal processing technology, which ensures its high efficiency, functionality, and reliability. -
Page 7: Specifications
SINGLE OPERATING MANUAL 1.3 SPECIFICATIONS Charging mode, according to IEC 61851-1 Mode 3 Rated input voltage 1 / 3 phase(s), 230V / 400V Maximum permissible input voltage ±10% deviation, no more than Rated power supply frequency 50/60Hz Maximum permissible deviation of the ±0.2Hz... -
Page 8: Characteristics Of The Station Connectors
SINGLE OPERATING MANUAL 1.4 CHARACTERISTICS OF THE STATION CONNECTORS Type 1 (SAE-J1772) Charging station port Maximum output power 9.2kW 18.4kW Maximum charge current Maximum charge voltage 230V Cable length 6.5m Type 2 (Mennekes) Charging station port Maximum output power 22kW... -
Page 9: Charging Station Modifications
SINGLE OPERATING MANUAL 1.5 CHARGING STATION MODIFICATIONS Charging Station modifications can be with any one connector or socket. Moreover, the Charging Station can be produced for commercial or individual use. In the case of its commercial use, the Charging Station is equipped with a modem and to use it, you need to insert a SIM card. -
Page 10: Complete Set
SINGLE OPERATING MANUAL 2 COMPLETE SET Wall mounting Single Charging Station Operating Manual Mounting bracket Floor mounting Single Charging Station with pedestal Operating Manual Figure 1a – Appearance and dimensions of the Station for wall mounting... -
Page 11: Labelling And Marking
SINGLE OPERATING MANUAL Figure 1b – Appearance and dimensions of the Station for floor mounting 3 LABELLING AND MARKING The labeling and marking of the Charging Station is made on the nameplate located on the side panel of the Station case. -
Page 12: Setting-Up Procedures
SINGLE OPERATING MANUAL 4 SETTING-UP PROCEDURES 4.1 OPERATING RESTRICTIONS The Charging Station is designed exclusively for charging electric vehicles. Please charge only compatible e-vehicles. Failure to comply with the requirements for operation, technical maintenance, and repair described in this Manual excludes any liability of the Manufacturer in the case of malfunctions in the Station operation. - Page 13 SINGLE OPERATING MANUAL It is recommended to locate the Station under a canopy to protect it from direct exposure to precipitation and sunlight. For wall-mounted Charging Stations, a place should be prepared for attaching the bracket. When choosing the location of the Station, please keep in mind that there must be a distance of at least 0.5 meters to the...
- Page 14 SINGLE OPERATING MANUAL Figure 3 – Appearance and dimensions of the insert The dimensions of the pedestal foundation of the Charging Station are shown in Figure 4, the thickness of the plate is 5mm. Along with the preparation of the...
- Page 15 When laying the power cable, an AC circuit breaker should be installed between the Station and the mains. Depending on the Charging Station power and the number of connected phases, it is recommended to use a 2-pole (for single-phase connection), 4-pole (for three-phase connection) circuit breaker in the range from 16A to 80A.
-
Page 16: Connecting The Charging Station
• To an F-type socket (when using J1772 connector with 16A current limitation); • To socket CEE type 32A 400V; • To the terminal block as shown in Figure 6 (for the case using a 3-phase connection or only L1 for a single-phase connection). Figure 6 ATTENTION! THE FIRST CONNECTION THAT SHOULD BE PERFORMED IS THE GROUND WIRE TO THE GROUND BUS LABELED “PE”... -
Page 17: Intended Use
The display also shows data on software versions, a modem number, the Station number in Autoenterprise billing, a mobile network status, etc. The information shown on the display depends on the software version and may differ from version to version. -
Page 18: Connecting The Vehicle
SINGLE OPERATING MANUAL In standby mode, the display shows information about the status of the connectors. In the e-vehicle charging mode, the LCD displays information about charging time, voltage level, and current value. 5.2 CONNECTING THE VEHICLE 5.3 INDICATION OF SAFETY MEASURES The Charging Station operating system is powered from the mains through an additional circuit breaker. -
Page 19: Charging Station Maintenance
SINGLE OPERATING MANUAL 6 CHARGING STATION MAINTENANCE ATTENTION! All maintenance work should be carried out by the Manufacturer's representative or a qualified technician. Do not attempt to carry out maintenance work yourself, as this may result in electric shock and/or loss of functionality of the Charging Station. -
Page 20: Troubleshooting
SINGLE OPERATING MANUAL 7 TROUBLESHOOTING Malfunction, external Possible reason Troubleshooting method manifestations, and additional signs Replacing the GSM modem or Modem failure / SIM card checking the status of the SIM inoperative card Poor signal strength of the Loss of connection... -
Page 21: Storage
AUTOENTERPRISE.UA In order to quickly resolve the problem, it is necessary to report the Station modem number or the Station number in the Autoenterprise billing. 8 STORAGE The Charging Station should be stored in its original package until it is installed at the place of permanent use. -
Page 22: Acceptance Certificate
SINGLE OPERATING MANUAL If you have any further questions, please contact your supplier. 11 ACCEPTANCE CERTIFICATE CHARGING STATION PRODUCT NAME SINGLE ХХХХХХХХХХ DESIGNATION PRODUCTION SERIAL NUMBER manufactured and accepted in accordance with the mandatory requirements EN 61851-1, EN 61851-23 and found fit for service... - Page 23 SINGLE OPERATING MANUAL • actions by third parties or force majeure; • dismantling, maintenance, or repair carried out by a person who is not a representative of the manufacturing company; • changes in the product design, not agreed with the Manufacturer.
