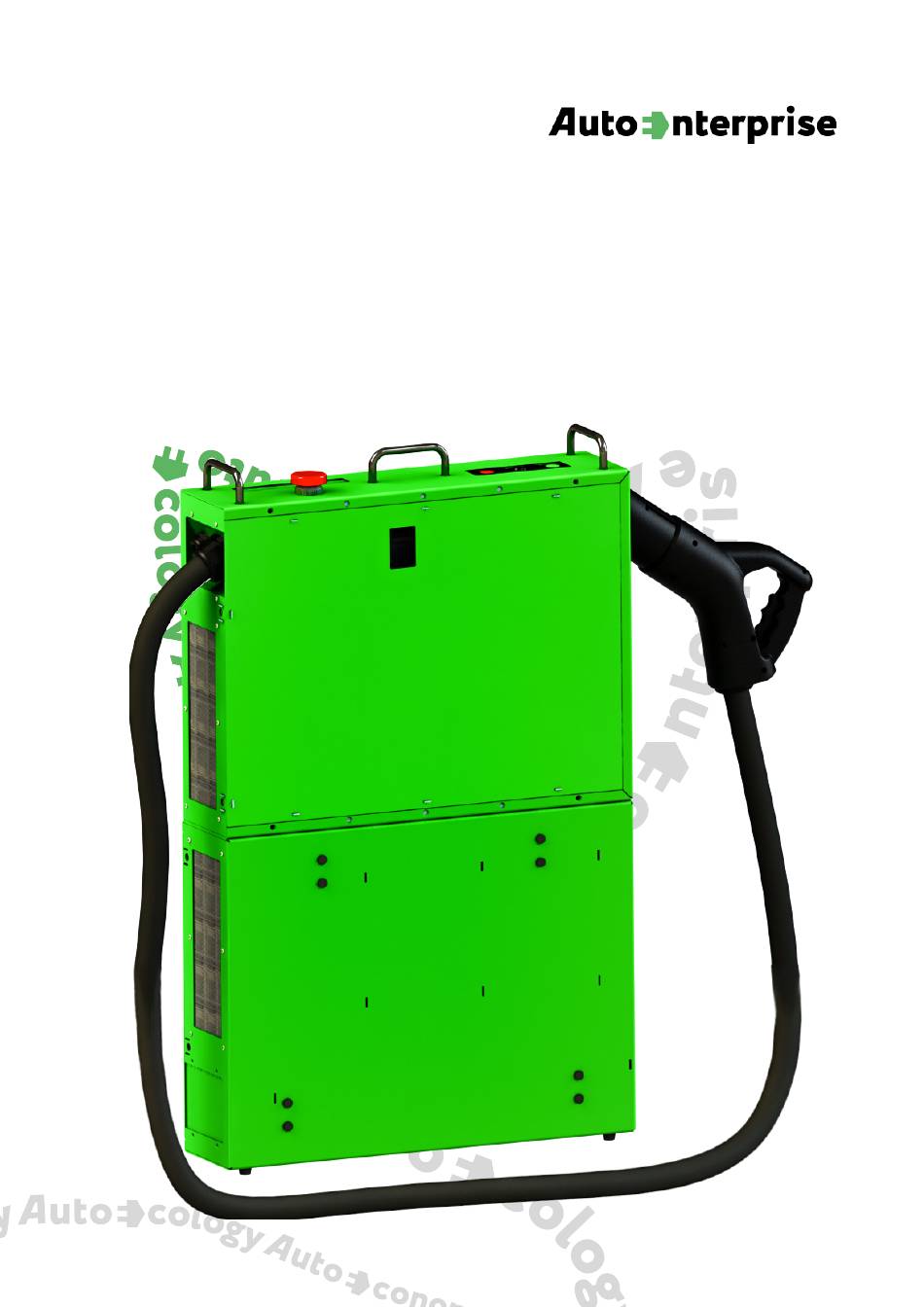

- Page 1 Instruction manual DC Travel Charger...
- Page 2 INSTRUCTION MANUAL « DC TRAVEL STATION » © Copyright This documentation with all illustrations is the intellectual property of Autoenterprise. All documentation is provided to the user for personal use only. This documentation may not be reproduced or provided to others without our written permission. Any violation of the law will be prosecuted.
-
Page 3: Table Of Contents
INSTRUCTION MANUAL « DC TRAVEL STATION » TABLE OF CONTENTS 1. Introduction ...................4 2. Key information ..................4 2.1 Information about the manual ................4 2.2 Warning signs . -
Page 4: Introduction
INSTRUCTION MANUAL « DC TRAVEL STATION » 1. INTRODUCTION I-STATION – is a high quality charging station (hereinafter referred to as «the complex»), which is made using the latest solutions in the field of power electronics and technology, based on the modern components combined with the microcontroller signal processing technology, which ensures high efficiency, functionality and reliability of the charger. -
Page 5: Liability And Warranty
Any software included in this equipment must only be used for the purposes for which it has been provided to the User by the Autoenterprise for which it is strictly prohibited to make any changes, conversions or copies (except for any necessary backups). -
Page 6: Disposal Information
INSTRUCTION MANUAL « DC TRAVEL STATION » 2.4 DISPOSAL INFORMATION Do not dispose of the charging complex together with household waste! Electronic devices must be disposed of in accordance with the local directives for the disposal of electronic and electrical waste. If you have any further questions, please contact your supplier. - Page 7 INSTRUCTION MANUAL « DC TRAVEL STATION » Input voltage deviation ±10 limits, %, max 50 Hz Nominal mains frequency CHAdeMO Output power 20/40 kWt Maximum current of the output cable 100 А Maximum connector voltage 550 V Cable length 6,5 m CCS Combo 1 Output power 20/40 kWt Maximum current of the output cable 100 А...
-
Page 8: Application Area
3.2 APPLICATION AREA The charger is designed exclusively for charging electric vehicles. For information about the materials, please contact Autoenterprise sales representative or contact the Autoenterprise technical support team The following sections should also be followed as part of the intended use: •... -
Page 9: Equipment Modifications
All signs, stickers and pictograms attached to the machine must be visible, legible and cannot be removed. Signs, labels or pictograms that have become damaged or illegible must be replaced immediately. Please contact AutoEnterprise to coordinate such questions. 3.4 GENERAL ELECTRICAL SAFETY INFORMATION Follow the safety instructions to avoid injury and material damage when working with the device. -
Page 10: Transportation
INSTRUCTION MANUAL « DC TRAVEL STATION » 4.2 TRANSPORTATION OF THE STATION WARNING There is a risk of injury from falling parts during transport, loading or unloading of the station. ATTENTION The charger may be damaged or destroyed if it is mishandled during transportation. - Page 11 INSTRUCTION MANUAL « DC TRAVEL STATION » The figure shows a variant of the station installation on the wall. To install the station on the wall, it is necessary to fix the mounting plate (the mounting dimensions of the plate are shown in the figure) using 4 anchor bolts, and then mount the charging station.
-
Page 12: Connecting The Charging Station
INSTRUCTION MANUAL « DC TRAVEL STATION » 4.4 CONNECTING THE CHARGING STATION Make sure that all internal components are properly secured after transportation. Check the quality of the connections of wires, loops, connectors. Tighten the terminals, bolt and screw connections, switching devices. The charger does not require special settings or adjustments before switching on. - Page 13 INSTRUCTION MANUAL « DC TRAVEL STATION » SIM-Card Slot Circuit Breakers The charging station is ready for use. Replace the mounting cover in its original position. Turn on external power. Cover screws The operating modes of the charging station are displayed on the LCD indicator, which also reflects: operating modes (readiness for charging, vehicle battery charge);...
-
Page 14: Storage
Connect the connector to the car, the charging process will start automatically. The illustrations show examples of the LCD display of the charging station under different operating modes. AutoEnterprise Download mobile app AE Charging Point +38 097 535 77 77 The «DC Output»... -
Page 15: Maintenance
INSTRUCTION MANUAL « DC TRAVEL STATION » 5. MAINTENANCE OF THE COMPLEX ATTENTION • Improper maintenance can result in serious injury or damage. For this reason, maintenance may only be carried out by authorised, trained personnel who are familiar with the product operation and strictly adhere to all safety instructions. - Page 16 Circuit breakers or RCD Restore the operation circuit charging system triggered breakers or RCDs of the charging complex Other malfunctions The charging complex does Contact the not provide the set electric «Autoenterprise» technical parameters for the EV support team battery charge...
-
Page 17: Disassembly
Always use suitable tools to disassemble the complex. Follow the specific disposal instructions TECH SUPPORT Contacts: 1. You can write an email to tech support using the contact page on our web-site. 2. You can call on numbers listed on the web-site. AUTOENTERPRISE.UA...
