INSTRUCTION MANUAL CHARGE COMPLEX « K » TABLE OF CONTENTS 1. Introduction ....................4 2. Key information..................4 2.1 Information about the manual ................4 2.2 Warning signs. -
Page 4: Introduction

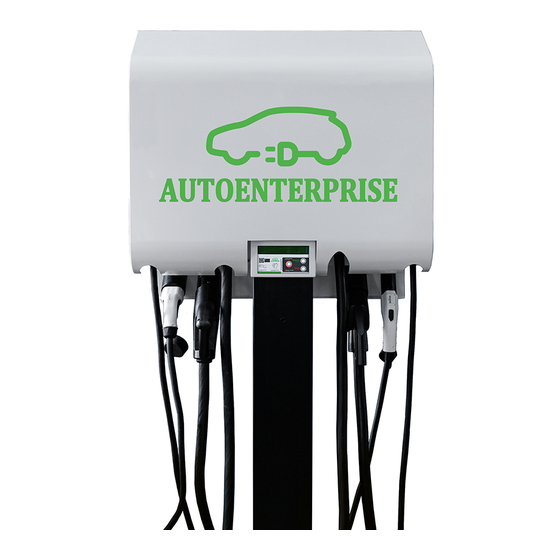

INSTRUCTION MANUAL CHARGE COMPLEX « K » 1. INTRODUCTION CHARGE COMPLEX « K » – is a high quality charging station (hereinafter referred to as «the complex»), which is made using the latest solutions in the field of power electronics and technology, based on the modern components combined with the microcontroller signal processing technology, which ensures high efficiency, functionality and reliability of the charger. -
Page 5: Liability And Warranty
Any software included in this equipment must only be used for the purposes for which it has been provided to the User by the Autoenterprise for which it is strictly prohibited to make any changes, conversions or copies (except for any necessary backups). -
Page 6: Disposal Information
INSTRUCTION MANUAL CHARGE COMPLEX « K » 2.4 DISPOSAL INFORMATION Do not dispose of the charging complex together with household waste! Electronic devices must be disposed of in accordance with the local directives for the disposal of electronic and electrical waste. If you have any further questions, please contact your supplier. -
Page 7: Application Area, Station Specifications
3.1 APPLICATION AREA The charger is designed exclusively for charging electric vehicles. For information about the materials, please contact Autoenterprise sales representative or contact the Autoenterprise technical support team The following sections should also be followed as part of the intended use: •... - Page 8 INSTRUCTION MANUAL CHARGE COMPLEX « K » 1 p. Output power, max. 60 kWh Maximum cable current 150A Maximum connector voltage 550V Cable length 6,5 m Type 1 1 p. Output power, max. 19 kWh Maximum cable current 80 A Maximum connector voltage 240V Cable length 6,5 m Type 2...
-
Page 9: Equipment Modifications
All signs, stickers and pictograms attached to the machine must be visible, legible and cannot be removed. Signs, labels or pictograms that have become damaged or illegible must be replaced immediately. Please contact AutoEnterprise to coordinate such questions. 3.4 GENERAL ELECTRICAL SAFETY INFORMATION Follow the safety instructions to avoid injury and material damage when working with the device. -
Page 10: Technical Specification Of The Complex
INSTRUCTION MANUAL CHARGE COMPLEX « K » 4. COMPLEX SPECIFICATIONS 4.1 CHARGING COMPLEX DIMENSIONS AND PARAMETERS FRONT VIEW SIDE VIEW The station is structurally designed as a monoblock mounted on a pillar and has the following control and management bodies: •... - Page 11 INSTRUCTION MANUAL CHARGE COMPLEX « K » CHARGE COMPLEX «K» Current Socket type Quantity Max power, kWh Max voltage, V А Type 1 (SAE J1772) Type 2 (Mennekes) CHAdeMO * CCS (Type 2) * CHARGING STATION MODIFICATIONS The charging station is available in the following configurations CHARGE COMPLEX «K»...
- Page 12 INSTRUCTION MANUAL CHARGE COMPLEX « K » The charging complex is designed for the installation of 1 «KEHUA 20» 3 DC modules. The emergency stop button is located at the bottom of the unit housing. When the emergency stop button is pressed in DC charging mode, the charging station control circuit is automatically deactivated and the red LED on the information display blinks continuously at a frequency of 2 times/second.
-
Page 13: Transportation Of The Complex
INSTRUCTION MANUAL CHARGE COMPLEX « K » The charging complex is designed for installing 4 DC modules of «PRE, 12 kW» model. The emergency stop button is located at the bottom of the unit housing. When the emergency stop button is pressed in DC charging mode, the charging station control circuit is automatically deactivated and the red LED on the information display blinks continuously at a frequency of 2 times/second. - Page 14 INSTRUCTION MANUAL CHARGE COMPLEX « K » The base is to be poured with concrete. The ground at the place of installation of the charging station must ensure high stability of the base. There should be no underground cables or pipes in the area around the foundation. The foundation usually settles for about a week.
-
Page 15: Complex Connection
INSTRUCTION MANUAL CHARGE COMPLEX « K » 4.4 COMPLEX CONNECTION Ensure that all internal components are properly secured after transportation. Check the quality of wire, loop, and connector connections. Check the tightening torque of terminals, bolts, screws, and switchgear. The charger does not require any special adjustment or tuning before it is put into operation. Before you connect the charger, make sure that: •... - Page 16 GSM network (signal strength, network status), vehicle authorization process. AutoEnterprise V:2.02.1642 M006335 In case of any error in the charging complex, to perform...
-
Page 17: Complex Storage
INSTRUCTION MANUAL CHARGE COMPLEX « K » 4.5 COMPLEX STORAGE Store the charger in a sealed container until it is assembled and installed. Charging complex storage conditions: • The storage area should be dry, free of dust, caustic materials, vapours and combustible materials. •... -
Page 18: Maintenance Of The Complex
INSTRUCTION MANUAL CHARGE COMPLEX « K » 5. MAINTENANCE OF THE COMPLEX ATTENTION • Improper maintenance can result in serious injury or damage. For this reason, maintenance may only be carried out by authorised, trained personnel who are familiar with the product operation and strictly adhere to all safety instructions. - Page 19 Circuit breakers or RCD Restore the operation circuit charging system triggered breakers or RCDs of the charging complex Other malfunctions The charging complex does Contact the not provide the set electric «Autoenterprise» technical parameters for the EV support team battery charge...
-
Page 20: Disassembly
Always use suitable tools to disassemble the complex. Follow the specific disposal instructions TECH SUPPORT Contacts: 1. You can write an email to tech support using the contact page on our web-site. 2. You can call on numbers listed on the web-site. AUTOENTERPRISE.UA...
