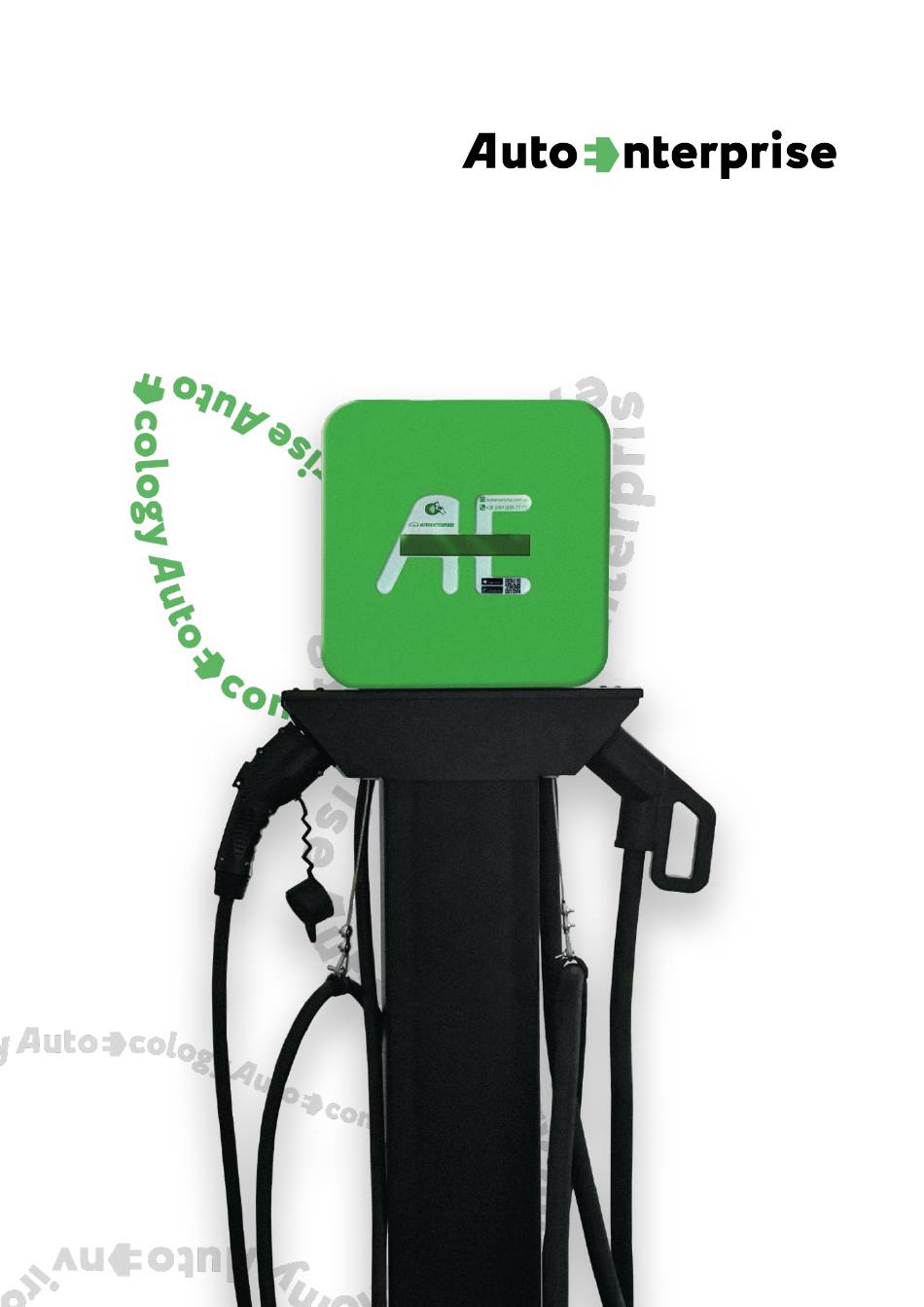

  • Page 1 Instruction manual «I-Station»...
  • Page 2 INSTRUCTION MANUAL « I-STATION » © Copyright This documentation with all illustrations is the intellectual property of Autoenterprise. All documentation is provided to the user for personal use only. This documentation may not be reproduced or provided to others without our written permission. Any violation of the law will be prosecuted.

  • Page 3: Table Of Contents

    INSTRUCTION MANUAL « I-STATION » TABLE OF CONTENTS 1. Introduction ...................4 2. Key information ..................4 2.1 Information about the manual ................4 2.2 Warning signs .

  • Page 4: Introduction

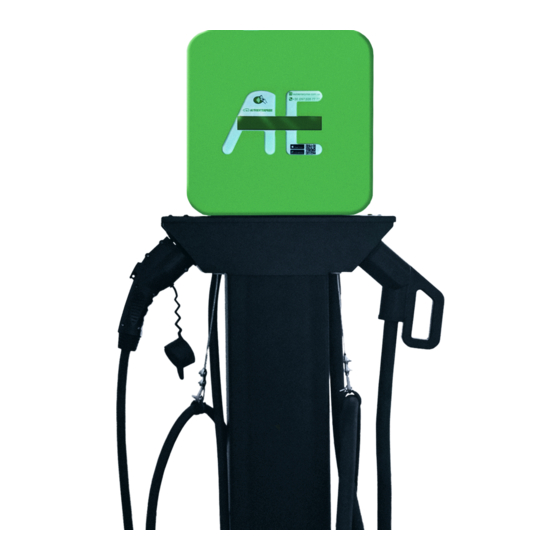

    INSTRUCTION MANUAL « I-STATION » 1. INTRODUCTION I-STATION – is a high quality charging station (hereinafter referred to as «the complex»), which is made using the latest solutions in the field of power electronics and technology, based on the modern components combined with the microcontroller signal processing technology, which ensures high efficiency, functionality and reliability of the charger.

  • Page 5: Liability And Warranty

    Any software included in this equipment must only be used for the purposes for which it has been provided to the User by the Autoenterprise for which it is strictly prohibited to make any changes, conversions or copies (except for any necessary backups).

  • Page 6: Manufacturer's Label

    INSTRUCTION MANUAL « I-STATION » 2.4 DISPOSAL INFORMATION Do not dispose of the charging complex together with household waste! Electronic devices must be disposed of in accordance with the local directives for the disposal of electronic and electrical waste. If you have any further questions, please contact your supplier.

  • Page 7: Application Area, Station Specifications

    3.1 APPLICATION AREA The charger is designed exclusively for charging electric vehicles. For information about the materials, please contact Autoenterprise sales representative or contact the Autoenterprise technical support team The following sections should also be followed as part of the intended use: •...
  • Page 8 INSTRUCTION MANUAL « I-STATION » Number of vehicles simultaneously connected to one Charging Station Access types RFID-card Smartphone app Chip-tag (extra option) Delivery contents Charging station, user manual Charging station dimensions 116х631х1938 mm The technical characteristics of the station shall be specified in separate specifications and may differ from those agreed upon by the parties.

  • Page 9: Equipment Modifications

    All signs, stickers and pictograms attached to the machine must be visible, legible and cannot be removed. Signs, labels or pictograms that have become damaged or illegible must be replaced immediately. Please contact AutoEnterprise to coordinate such questions. 3.4 GENERAL ELECTRICAL SAFETY INFORMATION Follow the safety instructions to avoid injury and material damage when working with the device.

  • Page 10: Dimensions, Connectivity

    INSTRUCTION MANUAL « I-STATION » 4. DIMENSIONS, STATION INSTALLATION 4.1 CHARGER DIMENSIONS AND PARAMETERS FRONT VIEW SIDE VIEW The station is structurally designed as a monoblock mounted on a stand and has the following control and management bodies: • Charging station in the case on a stand (optional - without a stand) - 1 pc;...
  • Page 11 INSTRUCTION MANUAL « I-STATION » CHARGING STATION SPECIFICATION Socket and cable type for connecting the station to the electric vehicle: I-STATION Current Socket type Quantity Max power, kWh Max voltage, V А Type 1 (SAE J1772) Type 2 (Mennekes) CHARGING STATION MODIFICATIONS...

  • Page 12: Transportation

    INSTRUCTION MANUAL « I-STATION » I-STATION - 3 Current Socket type Quantity Max power, kWh Max voltage, V А Type 2 (Mennekes) 2х63 4.2 TRANSPORTATION OF THE STATION WARNING There is a risk of injury from falling parts during transport, loading or unloading of the station.
  • Page 13 INSTRUCTION MANUAL « I-STATION » The charger does not require any special setup or adjustment before it is switched on. Before connecting the charger station to the grid, make sure that: • The power supply (input) cable on the mains side is de-energized by external disconnecting devices.

  • Page 14: Storage

    INSTRUCTION MANUAL « I-STATION » THE FIRST CONNECTION TO BE MADE IS THE GROUND WIRE TO THE GROUND BUSBAR MARKED «PE». DO NOT SWITCH ON THE CHARGER WITHOUT A CONNECTED GROUNDING! Non-compliance with this requirement may result in the energizing the charger body, electric shock damage to the service personnel and consumers, as well as in a failure of the charger.

  • Page 15: Maintenance

    INSTRUCTION MANUAL « I-STATION » 5. MAINTENANCE OF THE STATION ATTENTION • Improper maintenance can result in serious injury or damage. For this reason, maintenance may only be carried out by authorised, trained personnel who are familiar with the product operation and strictly adhere to all safety instructions.
  • Page 16 INSTRUCTION MANUAL « I-STATION » Name of malfunction, external manifestation and Probable cause Possible remedy additional signs Loss of communication with Modem failure Replacing the modem or the complex checking the status of the SIM card Bad location of the antenna...
