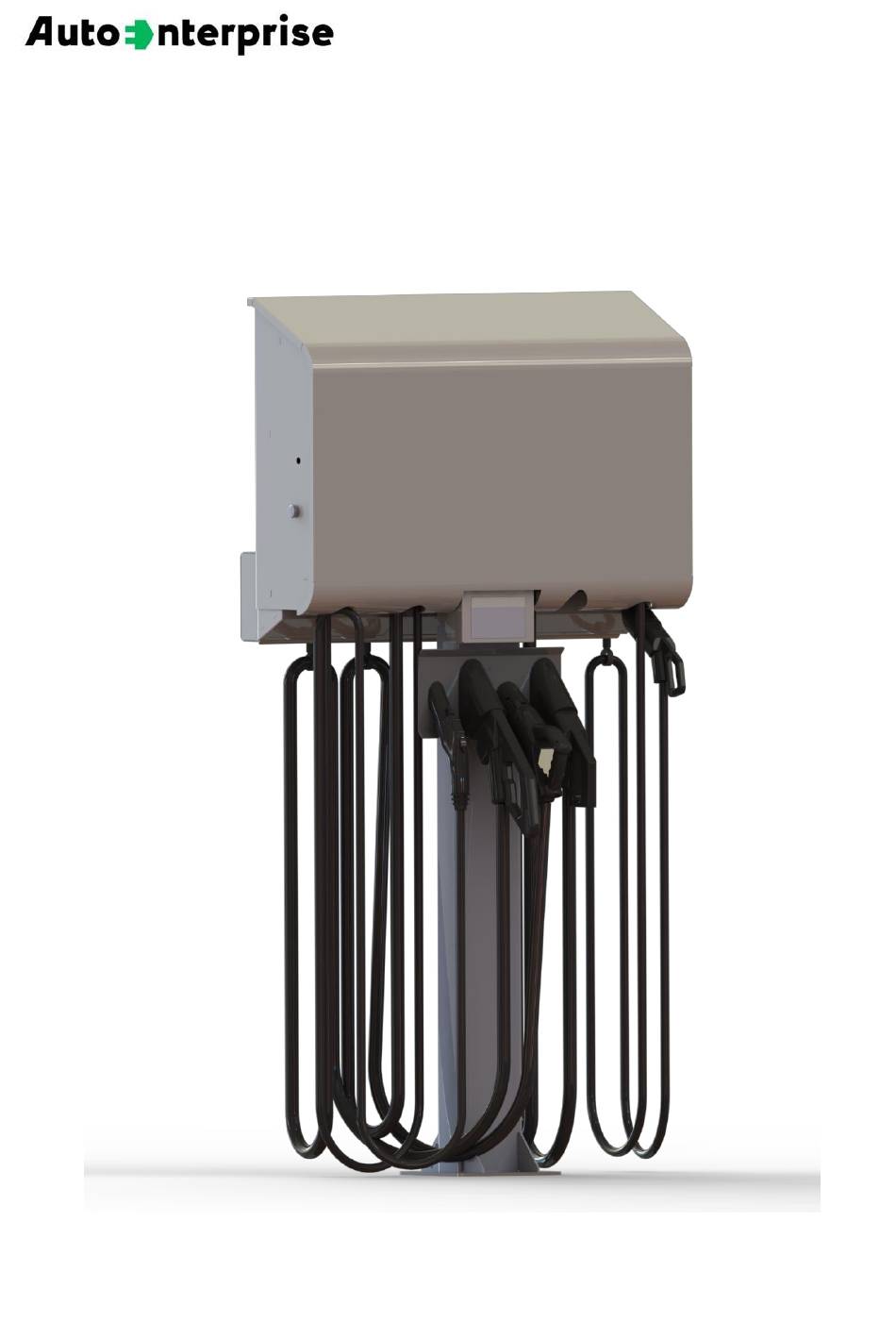

- Page 1 CHARGING STATION «WALL COMPLEX» User manual...
- Page 2 USER MANUAL WALL COMPLEX © Copyright This documentation with all illustrations is the intellectual property of PC "AE FACTORY". All documentation is provided to the user for personal use only. This documentation may not be reproduced or provided to others without our written permission. Any violation of the law will be prosecuted.
-
Page 3: Table Of Contents
USER MANUAL WALL COMPLEX CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....................... 4 1. GENERAL INFORMATION ..........................6 1.1 INTRODUCTION ............................6 1.2 FUNCTIONAL POSSIBILITIES ........................ 6 1.3 TECHNICAL CHARACTERISTICS ......................7 1.4 CONNECTORS CHARACTERISTICS ....................8 1.5 CHARGING COMPLEX MODIFICATIONS ..................10 2 PACKAGE ................................ -
Page 4: Important Safety Instructions
USER MANUAL WALL COMPLEX IMPORTANT SAFETY INSTRUCTIONS This operating manual includes the necessary sections of technical characteristics, maintenance rules, as well as safety instructions and recommendations for the operation of the station. Before starting work, it is necessary to carefully study all the rules and recommendations given in the instructions, and observe them during operation. - Page 5 USER MANUAL WALL COMPLEX Strict adherence to the safety procedures described in these operating instructions and special care when using the equipment are essential to prevent and reduce the likelihood of injury or damage to the equipment. The manufacturer is not responsible for any direct or indirect damages resulting from the use or work with the electrical circuits of the equipment or software described in this manual.
-
Page 6: General Information

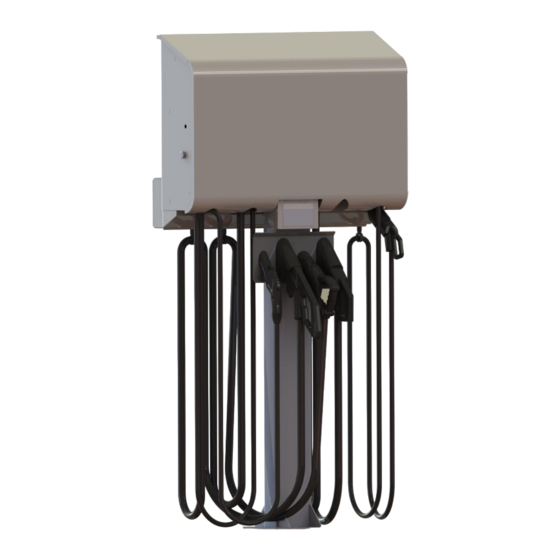

USER MANUAL WALL COMPLEX 1. GENERAL INFORMATION 1.1 INTRODUCTION WALL COMPLEX – is a charging station (charging complex) designed for safe and efficient charging of electric vehicles in the specially equipped places (car parks, offices, shopping malls, etc.). It can be installed indoors or outdoors. The charging complex (depending on the configuration) can simultaneously AC charging up from one to three electric vehicles and DC charging up from one to three electric vehicle (total amount of EV is four). -
Page 7: Technical Characteristics
USER MANUAL WALL COMPLEX 1.3 TECHNICAL CHARACTERISTICS Charging mode according to IEC 61851-1 Mode 3, Mode 4 Nominal input voltage 400 V ± 10%, 3 (TN-S) Nominal frequency 50 / 60 ± 0,2 Hz Maximum station power 30 kW – 225 kW •... -
Page 8: Connectors Characteristics
USER MANUAL WALL COMPLEX 1.4 CONNECTORS CHARACTERISTICS Type 1 (SAE-J1772) Charging connector Maximum power per socket 9,2 kW 18,4 kW Maximum current per socket 40 A 80 A Maximum socket voltage 230 V Cable length 6,5 m Type 2 (Mennekes) - Page 9 USER MANUAL WALL COMPLEX CCS (Type 1) Charging connector Maximum power per socket 100 kW 300 kW Maximum current per socket 200 A 300 A Maximum socket voltage 500 V 1000 V Cable length 5,5 m CCS (Type 2) Charging connector...
-
Page 10: Charging Complex Modifications
USER MANUAL WALL COMPLEX 1.5 CHARGING COMPLEX MODIFICATIONS The charging complex is available in various configurations, which are formed depending on the availability of connectors and the power of the DC-part of the station (30-60-90-120 kW). The power value of the charging station, depending on the configuration, is determined according to table 1. -
Page 11: Package
USER MANUAL WALL COMPLEX 2 PACKAGE EV charging station Wall Complex can be supplied in various package, depending on the installation method. Wall mounting EV charging station Wall Complex User manual Mounting bracket Anchor screw M8 Pedestal mounting EV charging station Wall Complex with pedestal... -
Page 12: Marking
USER MANUAL WALL COMPLEX Figure 1b. Station external view and station dimensions for pedestal mounting The station can be branded if it is specified in the contract with the customer. 3 MARKING The nameplate is located on the left side of the charging station enclosure. The nameplate specifies information such as the model, serial number and basic technical specifications. -
Page 13: Complex Installation
USER MANUAL WALL COMPLEX Follow the safety regulations to avoid injury and material damage when working with the complex. Before the station installation, you should review this manual carefully and consult with a licensed electrician, contractor, and trained installation expert to insure compliance with local building codes, safety standards and wiring regulations. - Page 14 USER MANUAL WALL COMPLEX Figure 3. Inserts external view and inserts dimensions The dimensions of the pedestal base are shown in Figure 4, the plate thickness is 8 mm. Along with the preparation of the foundation, it is necessary to ensure the laying of an electric power cable (not included in the delivery set).
- Page 15 USER MANUAL WALL COMPLEX Figure 5. Station foundation WARNING! Only qualified personnel should connect the power cable to the AC mains. It is recommended to select the cross-section of the power cable based on the power of the station (copper stranded conductor with a cross-section of 5×50 mm to 5×95 mm...
-
Page 16: Station Connecting
USER MANUAL WALL COMPLEX 4.3 STATION CONNECTING After transporting the charging complex, before installation, make sure that all internal elements are properly fixed and there are no mechanical damages. Check the quality of wire, loop, and connector connections. Check the tightening torque of terminals, bolts, screws, and switchgear. - Page 17 USER MANUAL WALL COMPLEX Figure 6. ATTENTION! THE FIRST CONNECTION THAT MUST BE MADE IS THE GROUND WIRE TO THE GROUND BUSBAR MARKED «PE». DO NOT SWITCH ON THE CHARGER WITHOUT A CONNECTED GROUNDING! Non-compliance with this requirement may result in energizing the charger body, electric shock damage to the service personnel and consumers, as well as in a failure of the charger.
-
Page 18: Operation
Information about the operating modes of the charging complex (the state of the connectors and the charging parameters) are displayed on the display. Also, the display shows data about software versions, modem number, station number in Autoenterprise billing, mobile network status, etc. -
Page 19: Connecting The Vehicle
USER MANUAL WALL COMPLEX The "DC Output" indicator flashes green quickly when the car is charging in DC Mode “CHAdeMO” / ”CCS” / “GB/T DC”. In this case the LCD display shows information about charging parameters. 5.2 CONNECTING THE VEHICLE... -
Page 20: Safety Measure
USER MANUAL WALL COMPLEX 5.3 SAFETY MEASURE In emergency situations, the charging complex disconnects the input power circuits using differential relays. The control system of the charging complex is powered from the mains through an additional circuit breaker. The output cable is connected via cable sleeve / cable glands. - Page 21 USER MANUAL WALL COMPLEX CAUTION! The use of explosive or flammable cleaning agents presents a fire or explosion hazard. Do not store flammable or explosive liquids near the charging station! WARNING! Charging station should always be powered off and disconnected from the power grid during the maintenance and repair.
-
Page 22: Troubleshooting
USER MANUAL WALL COMPLEX 7 TROUBLESHOOTING Failure mode Potential cause Remedy Modem failure / SIM card Replace the modem / checke the inoperative status of the SIM-card Lost connection Poor mobile signal strength / with server Modem antenna is out of order /... -
Page 23: Transportation
USER MANUAL WALL COMPLEX • During storage, the charging station must be protected from shocks. • Avoid extreme temperature fluctuations. • Storage temperature range: 0 °C to +40 °C (32 °F to 104 °F). • Humidity: < 85%. 9 TRANSPORTATION Charging station can be transported by all means of transport. -
Page 24: Address Of Manufacturer
Phone: +38 097 535 7777 12 LIMITED PRODUCT WARRANTY This Limited Product Warranty (“Warranty”) applies to the charging station Wall Complex (“Station”) purchased from manufacturer or one of its authorized distributors. Subject to the exclusions set forth below, manufacturer warrants that the Station will be free from defects for a period of one (1) year after the date of delivery manufacturer’s warehouse... - Page 25 USER MANUAL WALL COMPLEX • incorrect electrical, mechanical connection; • misuse or Station usage beyond its intended purpose; • modification or changes in the design of the product without written manufacturer approval; • incorrect installation, assembly/disassembly or relocation of the Station unless performed by manufacturer or authorized service personnel;...
