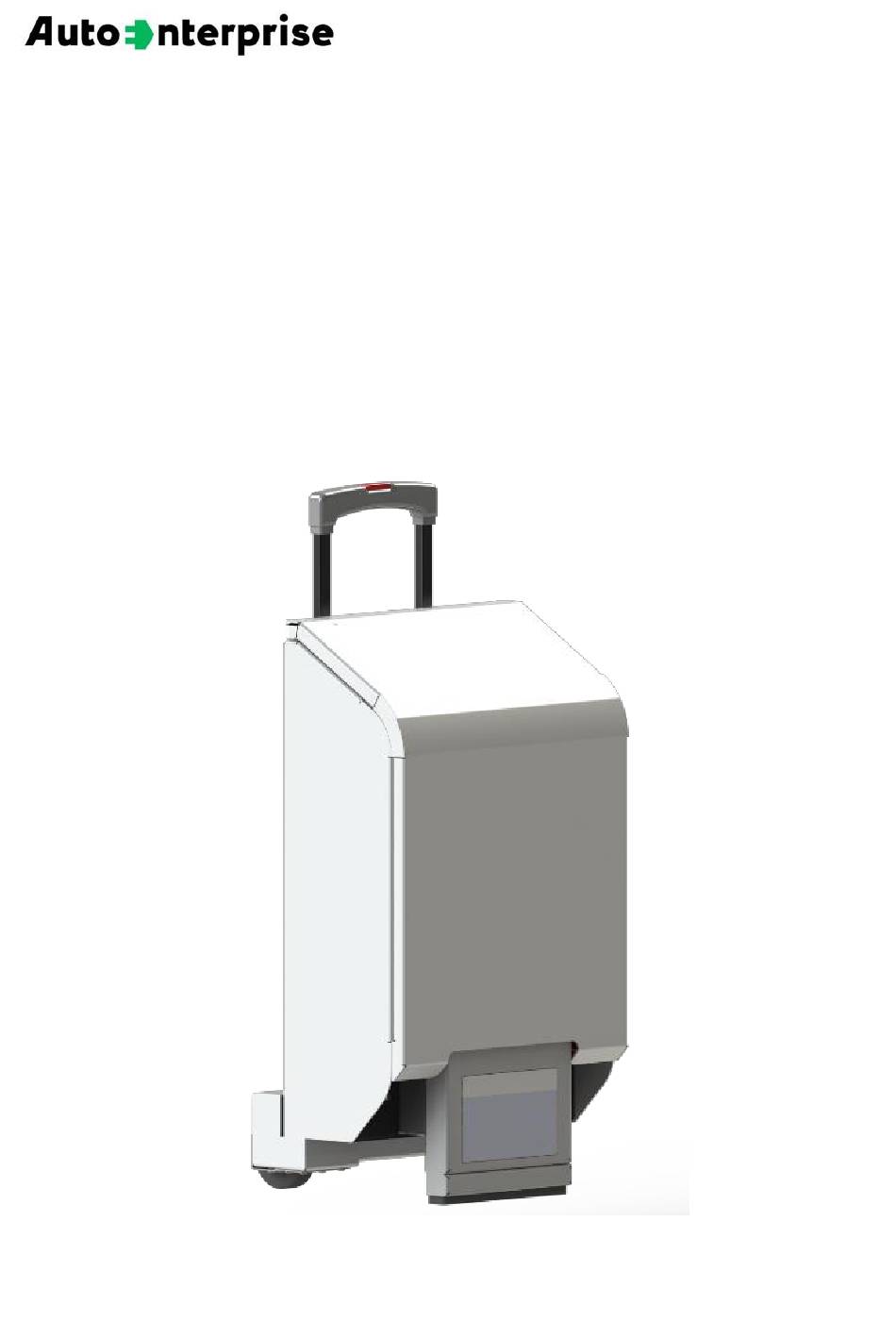

- Page 1 CHARGING STATION «TRAVEL CHARGER» User manual...
- Page 2 USER MANUAL TRAVEL CHARGER © Copyright This documentation with all illustrations is the intellectual property of PC "AE FACTORY". All documentation is provided to the user for personal use only. This documentation may not be reproduced or provided to others without our written permission. Any violation of the law will be prosecuted.
-
Page 3: Table Of Contents
USER MANUAL TRAVEL CHARGER CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....................... 4 1. GENERAL INFORMATION ..........................6 1.1 INTRODUCTION ............................6 1.2 FUNCTIONAL POSSIBILITIES ........................ 6 1.3 TECHNICAL CHARACTERISTICS ......................7 1.4 CONNECTORS CHARACTERISTICS ....................8 1.5 CHARGING STATION MODIFICATIONS ..................9 2 PACKAGE ................................. -
Page 4: Important Safety Instructions
USER MANUAL TRAVEL CHARGER IMPORTANT SAFETY INSTRUCTIONS This operating manual includes the necessary sections of technical characteristics, maintenance rules, as well as safety instructions and recommendations for the operation of the station. Before starting work, it is necessary to carefully study all the rules and recommendations given in the instructions, and observe them during operation. - Page 5 USER MANUAL TRAVEL CHARGER Strict adherence to the safety procedures described in these operating instructions and special care when using the equipment are essential to prevent and reduce the likelihood of injury or damage to the equipment. The manufacturer is not responsible for any direct or indirect damages resulting from the use or work with the electrical circuits of the equipment or software described in this manual.
-
Page 6: General Information

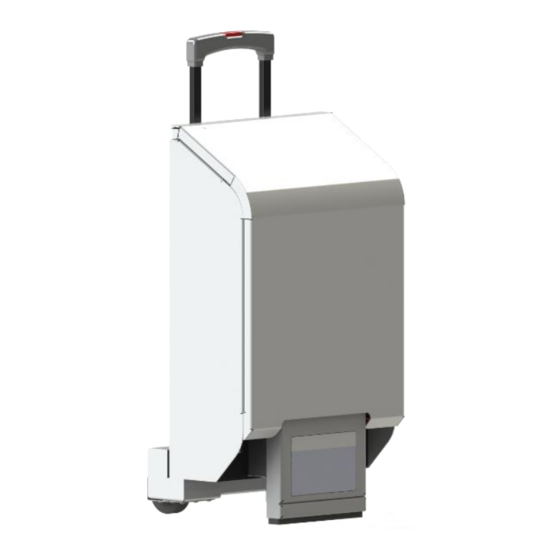

USER MANUAL TRAVEL CHARGER 1. GENERAL INFORMATION 1.1 INTRODUCTION TRAVEL CHARGER – is a DC charging station designed for safe and efficient charging of electric vehicles at home or at the specially equipped places (car parks, offices, shopping malls, etc.). It can be installed indoors or outdoors. The station can also be used while traveling. The compact design of the charger makes it easy to fit into the trunk of a car. -
Page 7: Technical Characteristics
USER MANUAL TRAVEL CHARGER 1.3 TECHNICAL CHARACTERISTICS Charging mode according to IEC 61851-1 Mode 4 Nominal input voltage 400 V ± 10%, 3 (TN-S) Nominal frequency 50 / 60 ± 0,2 Hz Maximum station power 30 kW / 40 kW Display LED-display (20×2 symbols) -
Page 8: Connectors Characteristics
USER MANUAL TRAVEL CHARGER 1.4 CONNECTORS CHARACTERISTICS CHAdeMO Charging connector Maximum power per socket 30 kW Maximum current per socket 100 A Maximum socket voltage 500 V Cable length 5,5 m CCS (Type 1) Charging connector Maximum power per socket... -
Page 9: Charging Station Modifications
The charging station is available in various configurations, which are formed depending on the connector type and mounting type. 2 PACKAGE EV charging station Travel Charger can be supplied in various package, depending on the installation method. Wall mounting EV charging station Travel Charger Adapter CEE-plug (5 pin, 63 A) –... -
Page 10: Marking
USER MANUAL TRAVEL CHARGER Figure 1а. Station external view and station dimensions for wall mounting Travel Charge V2 Figure 1а. Station external view and station dimensions for floor mounting 3 MARKING The nameplate is located on the charging station enclosure side panel. The nameplate specifies... -
Page 11: Installation
USER MANUAL TRAVEL CHARGER 4 INSTALLATION 4.1 OPERATING LIMITATIONS The charging station is designed exclusively for charging electric vehicles. Charging only compatible electric vehicles. Failure to comply with the requirements for operation, maintenance and repair, described in this manual, excludes any liability of the manufacturer in the event of malfunctions in the operation of the station. -
Page 12: Station Connecting
USER MANUAL TRAVEL CHARGER WARNING! Only qualified personnel can prepare the connection point for the charging station. The charging station is connected to a 400 V AC power supply network according to the TN-S scheme (L1 + L2 + L3 + N + PE). When connecting with a 4-wire cable, carry out the protective grounding with a separate wire. -
Page 13: Operation
Also, the display shows data about software versions, modem number, station number in Autoenterprise billing, mobile network status, etc. The information shown on the display depends on the software version and may differ from version to version. -
Page 14: Connecting The Vehicle
USER MANUAL TRAVEL CHARGER 5.2 CONNECTING THE VEHICLE 5.3 SAFETY MEASURE The output cable is connected via cable sleeve / cable glands. On the lower panel of the station there is an emergency stop button. When the emergency stop button is pressed, the electrical circuit that powers the vehicle's battery is automatically disconnected. -
Page 15: Maintenance
USER MANUAL TRAVEL CHARGER 6 MAINTENANCE WARNING! Improper maintenance can result in serious injury or equipment damage. The charging station can be maintained and repaired by qualified personnel only. CAUTION! The use of explosive or flammable cleaning agents presents a fire or explosion hazard. -
Page 16: Troubleshooting
USER MANUAL TRAVEL CHARGER All signs, stickers and pictograms placed on the station must be visible and readable. Marks, labels or pictograms that have been damaged or illegible must be replaced immediately. Please contact the manufacturer to agree on such issues. -
Page 17: Storage
USER MANUAL TRAVEL CHARGER 8 STORAGE The charging station is supplied in individual factory packaging. Remove all packaging before installing the station. STORAGE CONDITIONS: • The charging station must be stored in its original packaging. • The charging station should be stored in dry heated rooms, free of dust, corrosive and oily materials. -
Page 18: Fat Certificate
Phone: +38 097 535 7777 12 LIMITED PRODUCT WARRANTY This Limited Product Warranty (“Warranty”) applies to the charging station Travel Charger (“Station”) purchased from manufacturer or one of its authorized distributors. Subject to the exclusions set forth below, manufacturer warrants that the Station will be free from defects for a period of two (2) year after the date of delivery manufacturer’s warehouse... - Page 19 USER MANUAL TRAVEL CHARGER replacement / repair of components (to the manufacturer factory or any other repair location indicated by manufacturer). If the repair issue cannot be resolved remotely, Owner shall, at its own expense, ship the Product(s) to a Repair Centre, after receipt of respective instructions.
- Page 20 USER MANUAL TRAVEL CHARGER Manufacturer or its authorized distributors will not be liable for any indirect, incidental, special, punitive or consequential damages, even if manufacturer knew or should have known of the possibility of such damages. The cumulative liability of manufacturer or its authorized distributors for all claims whatsoever related to this station or the service will not exceed the price of this station.
