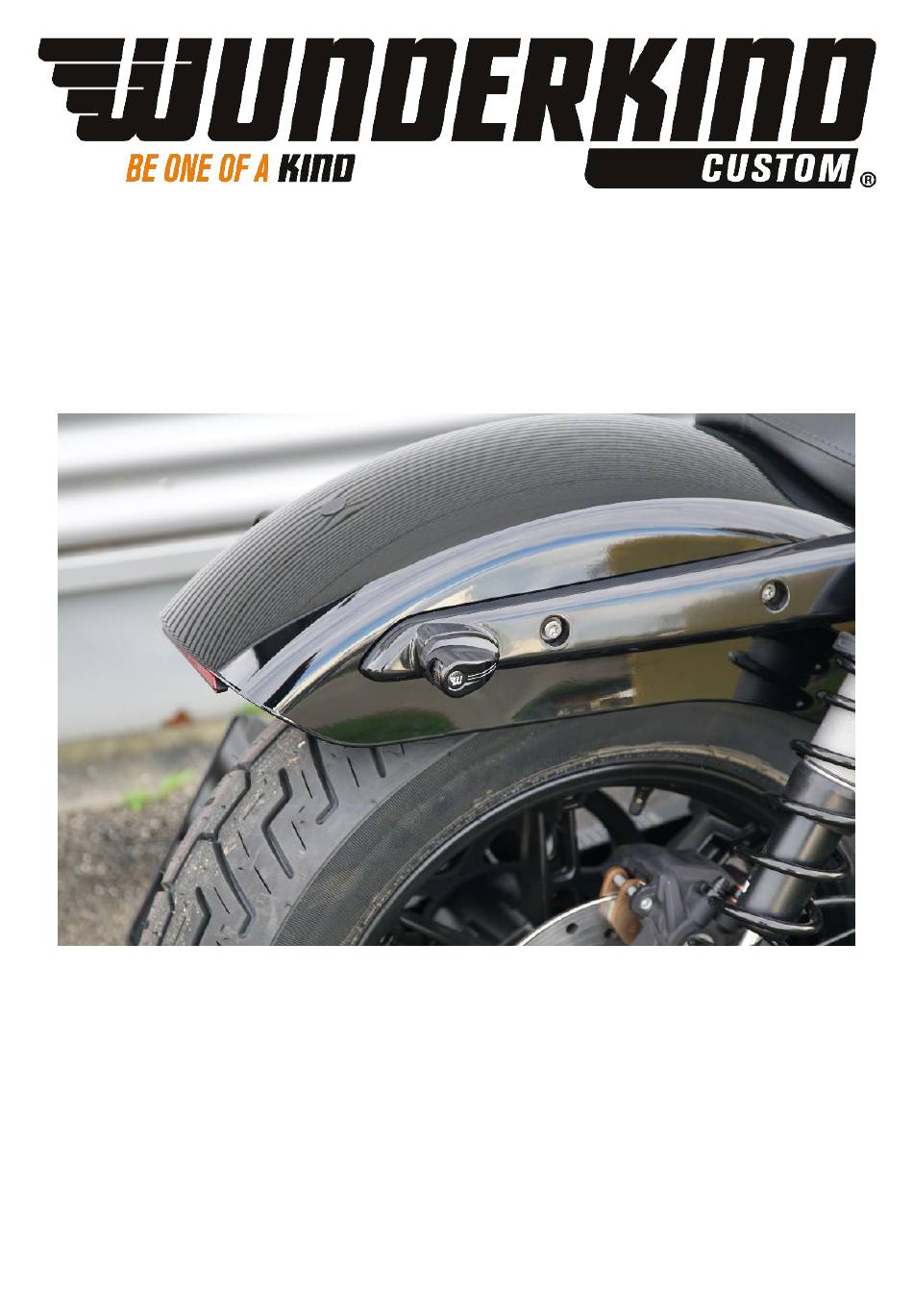

- Page 1 Rear indicator Installation and safety information Harley-Davidson Nightster from model year 2022 • www.wunderkind-custom.com ••• info@wunderkind-custom.com •...
- Page 2 Installation Manual Caution Important safety advice: Work undertaken on wheels and wheel axles poses a safety risk. This work may only be carried out by appropriately qualified personnel. Faulty work can have serious consequences and may pose a threat to life and health.
- Page 3 Installation Manual Content Preparation Installation: Park the vehicle safely. Remove the seat and both side covers. • Revision: 00 • 22/11/2022 • © ABM Fahrzeugtechnik GmbH Page 3 of 6...
- Page 4 Installation Manual Disconnect the plug connector of the indicators. Completely remove the left rear bracket of the fender. Remove the cable harness for the tail light from the holders. Unscrew the indicator from the bracket and detach the cable from the holders. Drill out the fixing hole to 8mm.
- Page 5 Installation Manual Attach the supplied indicator combinations to the bracket with an adapter, safety washer and screw. Connect the supplied two-core cable to the indicator. Attach the cable to the bracket with the original holders. Mount the bracket to the vehicle. Fix all removed parts on the left side.
- Page 6 Installation Manual Final check All electric wires must be laid in a manner which prevents them from bending or getting pulled during all spring deflection movements and which adequately protects them against rubbing. After completing the work, check that all components and screws are tight and functioning correctly.
