Summary of Contents for Wunderkind Custom 106680-F15

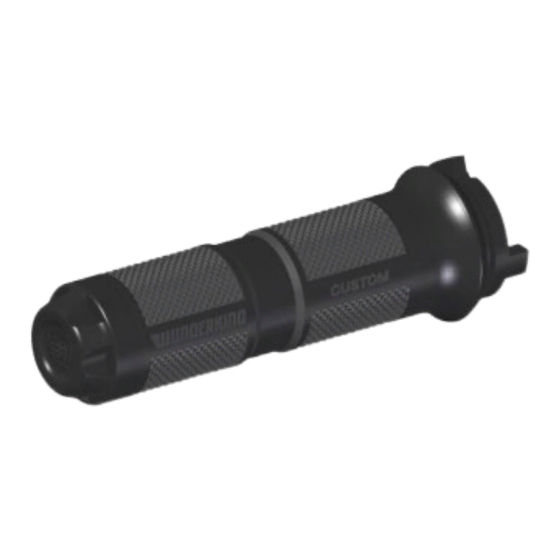

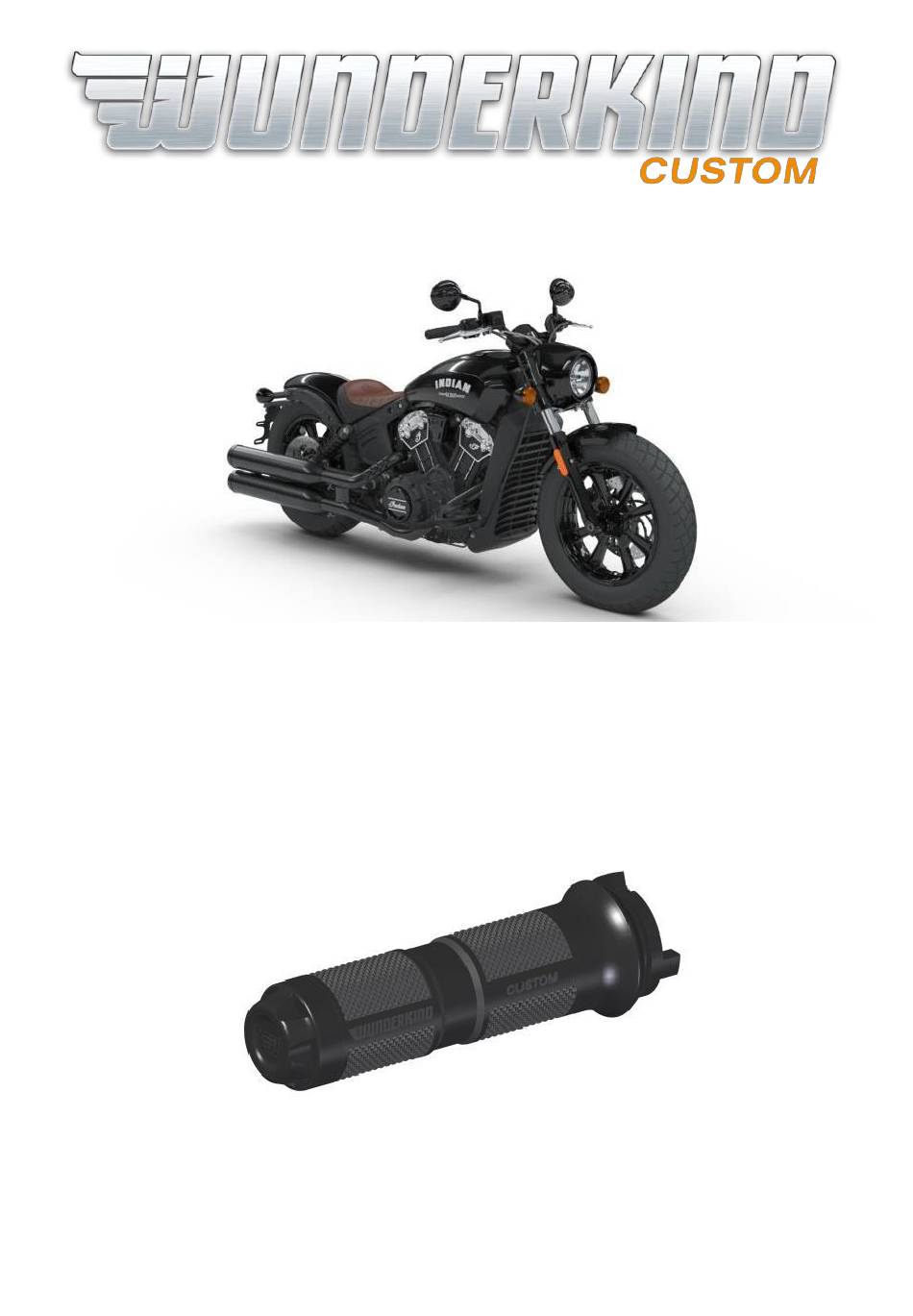

- Page 1 Installation and safety information Grips Indian Scout Bobber From model year 2018 • www.wunderkind-custom.com ••• info@wunderkind-custom.com •...
- Page 2 Installation manual for Indian Scout Bobber Caution Important safety advice: Working on motorcycles poses a safety risk. Some work may only be carried out by appropriately qualified personnel. Faulty work can have serious consequences and may pose a threat to life and health.
- Page 3 Installation manual for Indian Scout Bobber Content and recommended accessories: Special tool required? Modification time: approx. 15 min • Revision: 00 • 23/11/2017 • © ABM Fahrzeugtechnik GmbH Page 3 of 6...
- Page 4 Installation manual for Indian Scout Bobber Installation: Grips Remove the four screws of the right armature and unclip the front switch unit. Push the armature slightly forwards, unclip the original grip and remove completely. Clean handlebar. Apply some grease onto the handlebar in the throttle area.
- Page 5 Installation manual for Indian Scout Bobber Mount all removed parts of the right side in reverse order. Loosen the rubber grip on the left side using compressed air and remove. Clean handlebar. Slide the spacer onto the handlebar and attach from below with the thread pin.
- Page 6 Installation manual for Indian Scout Bobber Final check All electric wires must be laid in a manner which prevents them from bending or getting pulled during spring deflection movements and which adequately protects them against rubbing. After completing the work, check that all components and screws are tight and functioning correctly. Also check the rear wheel's freewheel and the functionality of the brake system.
