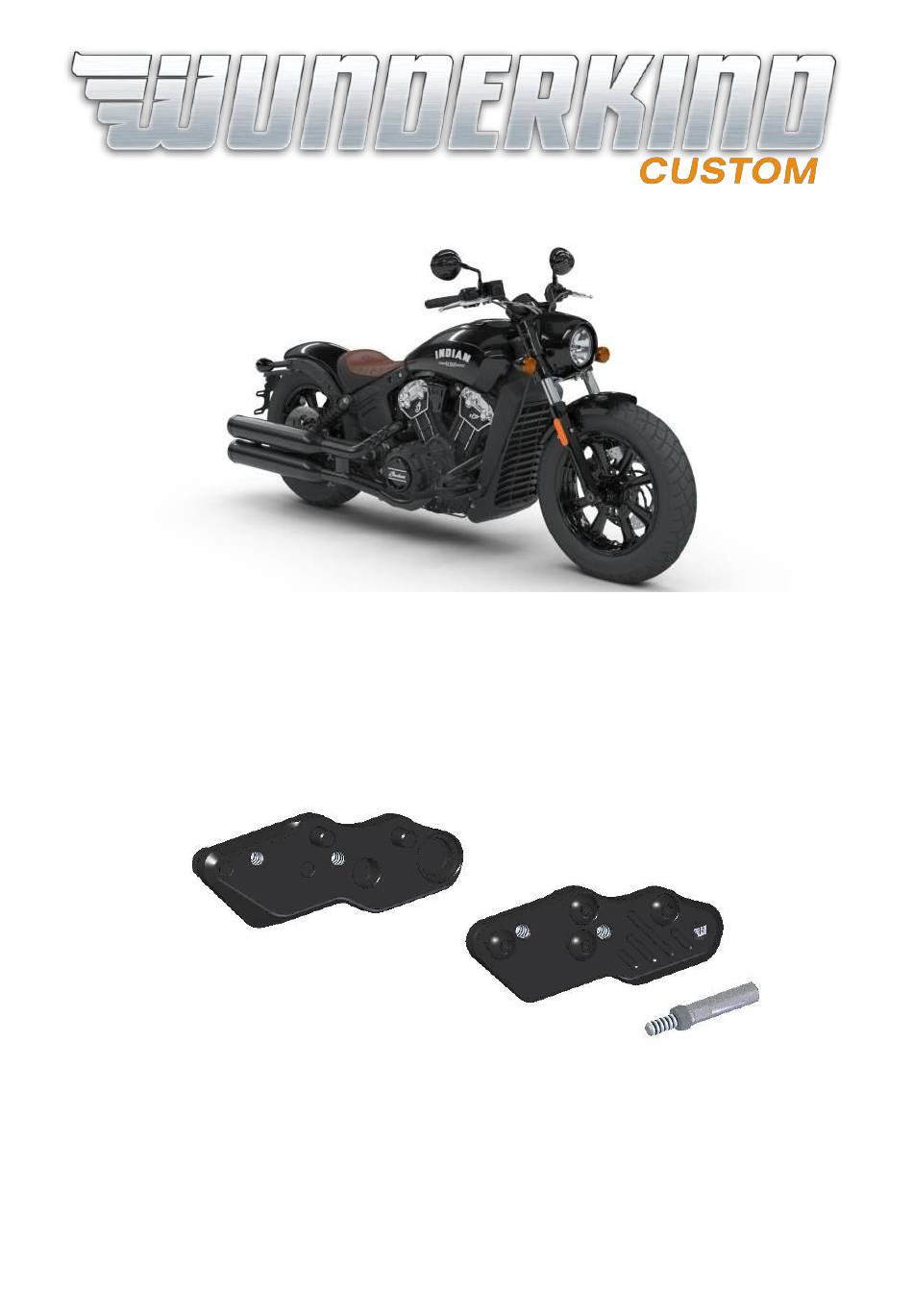

- Page 1 Installation and safety information Footrests' Forward Kit Indian Scout Bobber From model year 2018 • www.wunderkind-custom.com ••• info@wunderkind-custom.com •...
- Page 2 Installation manual for Indian Scout Bobber from model year 2018 Caution Important safety advice: Working on motorcycles poses a safety risk. Some work may only be carried out by appropriately qualified personnel. Faulty work can have serious consequences and may pose a threat to life and health.
- Page 3 Installation manual for Indian Scout Bobber from model year 2018 Content • Revision: 00 • 03/10/2020 • © ABM Fahrzeugtechnik GmbH Page 3 of 8...
- Page 4 Installation manual for Indian Scout Bobber from model year 2018 Brake side: Place the vehicle on an even surface. Caution: Make sure that the motorbike is positioned securely. Cover manifold and exhaust with a cloth or towel. Loosen both screws of the original footrest and place the complete unit on the side.
- Page 5 Installation manual for Indian Scout Bobber from model year 2018 Remove the cable tie holder. Push the valve rubber guide out of the bracket. Run the brake line between the filter and holder as shown. Reinsert the valve into the retaining bracket. Attach the brake lines with a cable tie.
- Page 6 Installation manual for Indian Scout Bobber from model year 2018 Mount the original footrest on the desired position using the screws provided. Use thread-locking fluid (medium strength). Tightening torque 30 Nm Gear side: Loosen both counter nuts of the shift linkage. Remove the front fixing screw on the reversing lever.
- Page 7 Installation manual for Indian Scout Bobber from model year 2018 Loosen both screws of the original footrest unit and place it on the side. Screw the left baseplate to the frame with the screws provided. Use thread-locking fluid (medium strength). Tightening torque 30 Nm Attach the footrest unit to the desired position using the screws provided.
- Page 8 Installation manual for Indian Scout Bobber from model year 2018 Final check All electric wires must be laid in a manner which prevents them from bending or getting pulled during spring deflection movements and which adequately protects them against rubbing. After all the work has been completed, make sure you check the complete electrical system.
