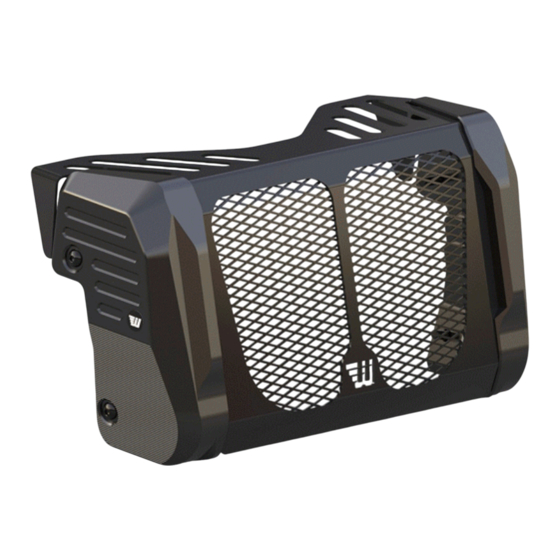

Cover oil cooler for bmw r 18 from model year 2020

Advertisement

Cover oil cooler
Installation manual and safety information
for
BMW R 18
From model year 2020
• www.wunderkind-custom.com ••• info@wunderkind-custom.com •

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 107045-F15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wunderkind Custom 107045-F15

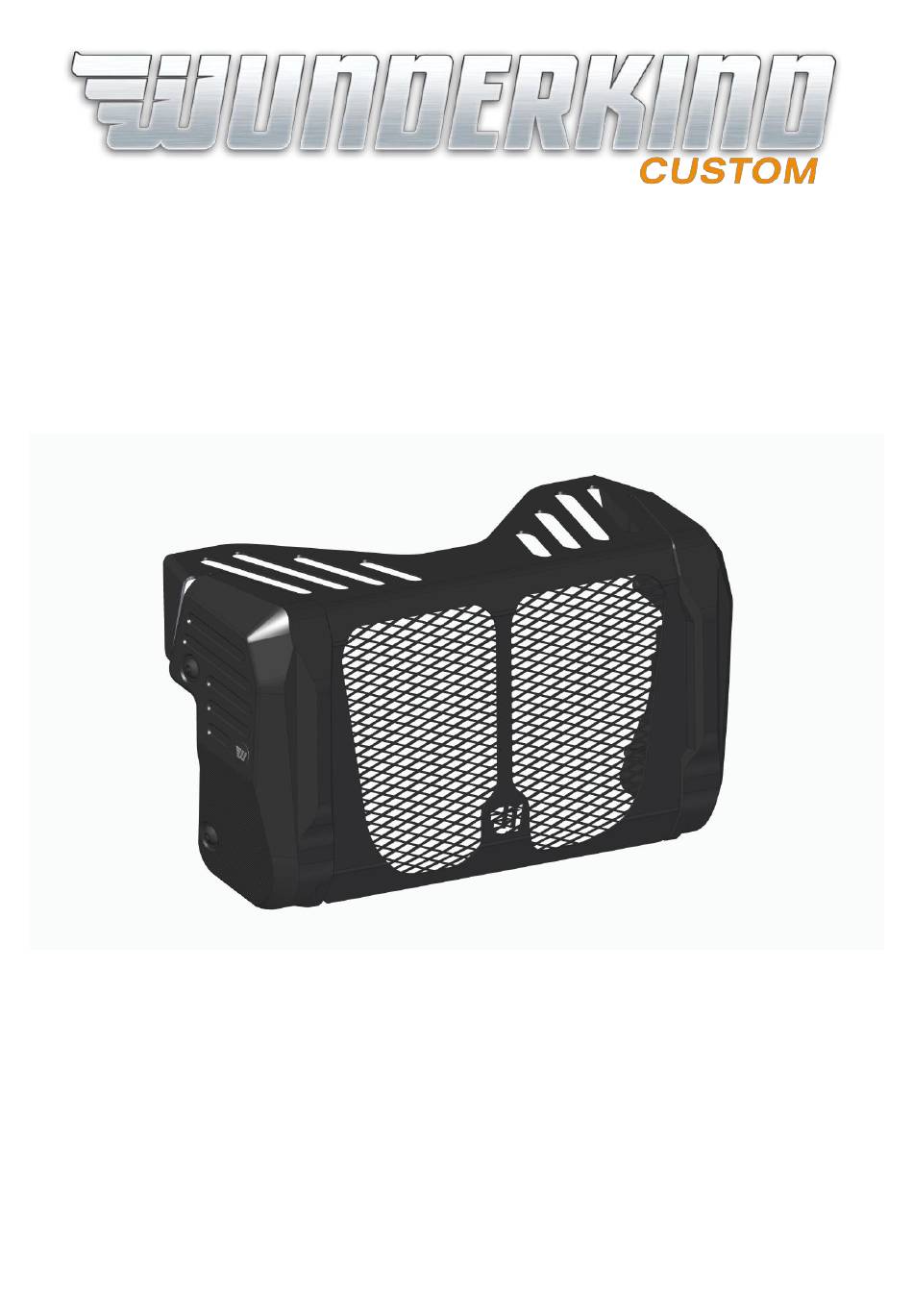

  • Page 1 Cover oil cooler Installation manual and safety information BMW R 18 From model year 2020 • www.wunderkind-custom.com ••• info@wunderkind-custom.com •...
  • Page 2 Installation manual for BMW R 18 from 2021 Caution Important safety advice:  Work undertaken on wheels and wheel axles poses a safety risk. This work may only be carried out by appropriately qualified personnel. Faulty work can have serious consequences and may pose a threat to life and health.
  • Page 3 Installation manual for BMW R 18 from 2021 • Revision: 00 • 19/01/2022 • © ABM Fahrzeugtechnik GmbH Page 3 of 7...
  • Page 4 Installation manual for BMW R 18 from 2021 Park the vehicle safely. Loosen the four screws of the cooler cover. Remove the plastic covering. Place the plate onto a clean surface. Stick two adhesive strips from above onto the edge of the plate.
  • Page 5 Installation manual for BMW R 18 from 2021 Stick the two pins into the notches of the brackets (see image). Insert the plate into the two brackets and attach firmly. Make sure that the holes are centered above the threads. If necessary, re-bend the plate slightly.
  • Page 6 Installation manual for BMW R 18 from 2021 Cut the mesh of the safety guard at the mark using a side cutter. Push the four screws provided through the mesh… … and screw them to the brackets. Use thread-locking fluid (medium strength). Clean the oil cooler.
  • Page 7 Installation manual for BMW R 18 from 2021 Attach the cover with the four screws provided according to manufacturer's specifications. Final check  The fender must not collide with other components on the vehicle, not even when fully loaded and over the entire spring travel. ...
