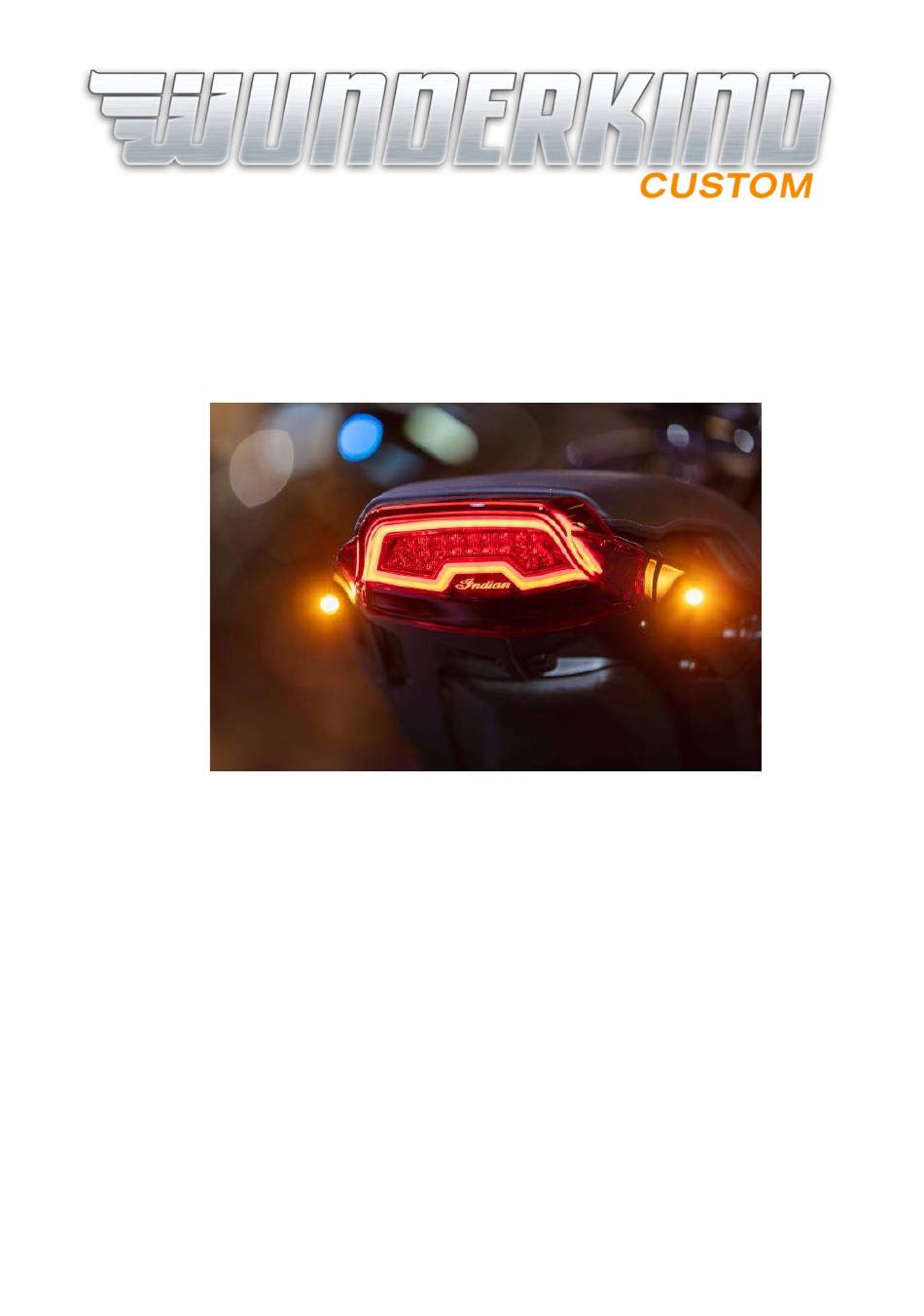

- Page 1 Installation and safety information LED rear indicator FTR 1200 S from 2019 • www.wunderkind-custom.com ••• info@wunderkind-custom.com •...
- Page 2 Installation manual for LED rear indicator FTR 1200 S from 2019 Caution Important safety advice: Working on motorcycles poses a safety risk. Some work may only be carried out by appropriately qualified personnel. Faulty work can have serious consequences and may pose a threat to life and health.
- Page 3 Installation manual for LED rear indicator FTR 1200 S from 2019 Installation: Disconnect the battery. Remove and unplug both rear indicators. Remove seat and both handles. Lay the cable harness for the indicators under the seat to the tail light.
- Page 4 Installation manual for LED rear indicator FTR 1200 S from 2019 Guide the cables of the indicator over or through the rear the frame (drilling Ø 4 mm). Connect the indicators and resistors supplied..according to the diagram (see last page).
- Page 5 Installation manual for LED rear indicator FTR 1200 S from 2019 Screw the seat on. Attach the indicators and handles ..with the original screws and washers provided. CAUTION: After installation, the proper functioning of the vehicle must be checked! •...
- Page 6 Installation manual for LED rear indicator FTR 1200 S from 2019 • Revision: 01 • 08.04.2020 • © ABM Fahrzeugtechnik GmbH Page 6 of 6...
