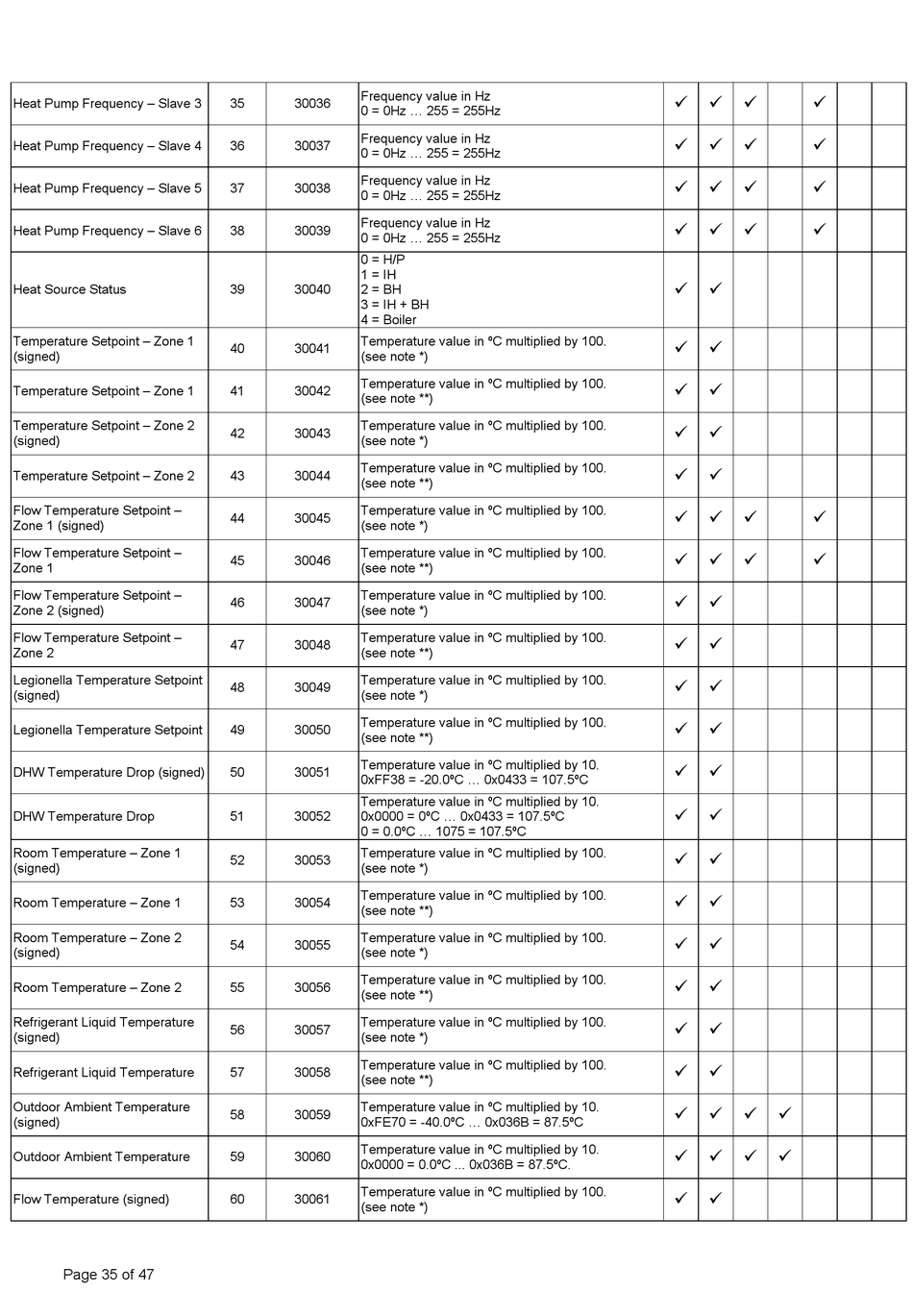

Procon MelcoBEMS MINI Installation Manual page 39

Heat Pump Frequency – Slave 3
Heat Pump Frequency – Slave 4
Heat Pump Frequency – Slave 5
Heat Pump Frequency – Slave 6
Heat Source Status
Temperature Setpoint – Zone 1
(signed)
Temperature Setpoint – Zone 1
Temperature Setpoint – Zone 2
(signed)
Temperature Setpoint – Zone 2
Flow Temperature Setpoint –
Zone 1 (signed)
Flow Temperature Setpoint –
Zone 1
Flow Temperature Setpoint –
Zone 2 (signed)
Flow Temperature Setpoint –
Zone 2
Legionella Temperature Setpoint
(signed)
Legionella Temperature Setpoint
DHW Temperature Drop (signed)
DHW Temperature Drop
Room Temperature – Zone 1
(signed)
Room Temperature – Zone 1
Room Temperature – Zone 2
(signed)
Room Temperature – Zone 2
Refrigerant Liquid Temperature
(signed)
Refrigerant Liquid Temperature
Outdoor Ambient Temperature
(signed)
Outdoor Ambient Temperature
Flow Temperature (signed)
Page 35 of 47
Frequency value in Hz
35 30036
0 = 0Hz ... 255 = 255Hz
Frequency value in Hz
36 30037
0 = 0Hz ... 255 = 255Hz
Frequency value in Hz
37 30038
0 = 0Hz ... 255 = 255Hz
Frequency value in Hz
38 30039
0 = 0Hz ... 255 = 255Hz
0 = H/P
1 = IH
39 30040 2 = BH
3 = IH + BH
4 = Boiler
Temperature value in ºC multiplied by 100.
40 30041
(see note *)
Temperature value in ºC multiplied by 100.
41 30042
(see note **)
Temperature value in ºC multiplied by 100.
42 30043
(see note *)
Temperature value in ºC multiplied by 100.
43 30044
(see note **)
Temperature value in ºC multiplied by 100.
44 30045
(see note *)
Temperature value in ºC multiplied by 100.
45 30046
(see note **)
Temperature value in ºC multiplied by 100.
46 30047
(see note *)
Temperature value in ºC multiplied by 100.
47 30048
(see note **)
Temperature value in ºC multiplied by 100.
48 30049
(see note *)
Temperature value in ºC multiplied by 100.
49 30050
(see note **)
Temperature value in ºC multiplied by 10.
50 30051
0xFF38 = -20.0ºC ... 0x0433 = 107.5ºC
Temperature value in ºC multiplied by 10.
51 30052 0x0000 = 0ºC ... 0x0433 = 107.5ºC
0 = 0.0ºC ... 1075 = 107.5ºC
Temperature value in ºC multiplied by 100.
52 30053
(see note *)
Temperature value in ºC multiplied by 100.
53 30054
(see note **)
Temperature value in ºC multiplied by 100.
54 30055
(see note *)
Temperature value in ºC multiplied by 100.
55 30056
(see note **)
Temperature value in ºC multiplied by 100.
56 30057
(see note *)
Temperature value in ºC multiplied by 100.
57 30058
(see note **)
Temperature value in ºC multiplied by 10.
58 30059
0xFE70 = -40.0ºC ... 0x036B = 87.5ºC
Temperature value in ºC multiplied by 10.
59 30060
0x0000 = 0.0ºC ... 0x036B = 87.5ºC.
Temperature value in ºC multiplied by 100.
60 30061
(see note *)
   
   
   
   
 
 
 
 
 
   
   
 
 
 
 
 
 
 
 
 
 
 
 
   
   
 
