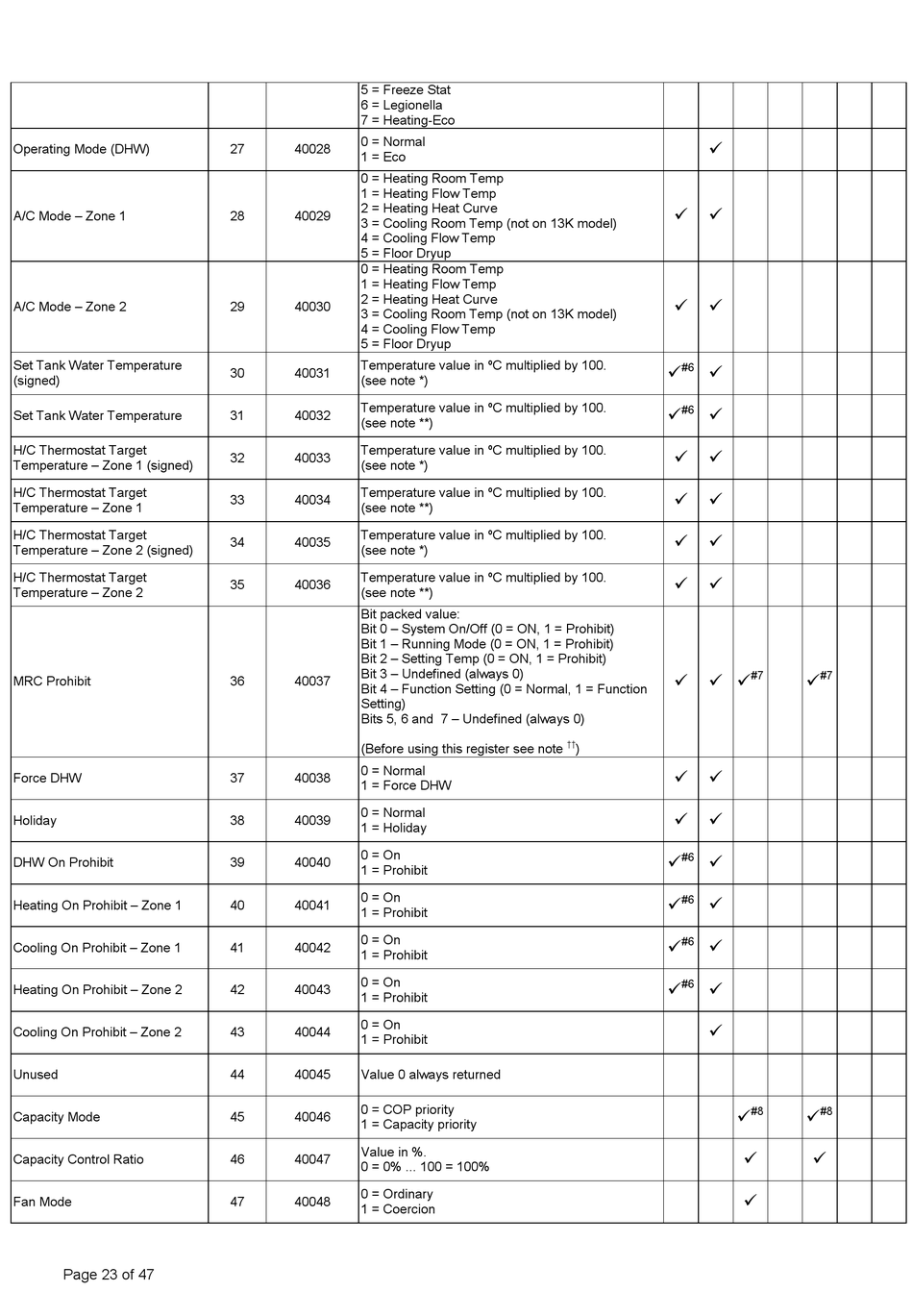

Procon MelcoBEMS MINI Installation Manual page 27

Operating Mode (DHW)
A/C Mode – Zone 1
A/C Mode – Zone 2
Set Tank Water Temperature
(signed)
Set Tank Water Temperature
H/C Thermostat Target
Temperature – Zone 1 (signed)
H/C Thermostat Target
Temperature – Zone 1
H/C Thermostat Target
Temperature – Zone 2 (signed)
H/C Thermostat Target
Temperature – Zone 2
MRC Prohibit
Force DHW
Holiday
DHW On Prohibit
Heating On Prohibit – Zone 1
Cooling On Prohibit – Zone 1
Heating On Prohibit – Zone 2
Cooling On Prohibit – Zone 2
Unused
Capacity Mode
Capacity Control Ratio
Fan Mode
Page 23 of 47
5 = Freeze Stat
6 = Legionella
7 = Heating-Eco
0 = Normal
27 40028
1 = Eco
0 = Heating Room Temp
1 = Heating Flow Temp
2 = Heating Heat Curve
28 40029
3 = Cooling Room Temp (not on 13K model)
4 = Cooling Flow Temp
5 = Floor Dryup
0 = Heating Room Temp
1 = Heating Flow Temp
2 = Heating Heat Curve
29 40030
3 = Cooling Room Temp (not on 13K model)
4 = Cooling Flow Temp
5 = Floor Dryup
Temperature value in ºC multiplied by 100.
30 40031
(see note *)
Temperature value in ºC multiplied by 100.
31 40032
(see note **)
Temperature value in ºC multiplied by 100.
32 40033
(see note *)
Temperature value in ºC multiplied by 100.
33 40034
(see note **)
Temperature value in ºC multiplied by 100.
34 40035
(see note *)
Temperature value in ºC multiplied by 100.
35 40036
(see note **)
Bit packed value:
Bit 0 – System On/Off (0 = ON, 1 = Prohibit)
Bit 1 – Running Mode (0 = ON, 1 = Prohibit)
Bit 2 – Setting Temp (0 = ON, 1 = Prohibit)
Bit 3 – Undefined (always 0)
36 40037
Bit 4 – Function Setting (0 = Normal, 1 = Function
Setting)
Bits 5, 6 and 7 – Undefined (always 0)
(Before using this register see note
0 = Normal
37 40038
1 = Force DHW
0 = Normal
38 40039
1 = Holiday
0 = On
39 40040
1 = Prohibit
0 = On
40 40041
1 = Prohibit
0 = On
41 40042
1 = Prohibit
0 = On
42 40043
1 = Prohibit
0 = On
43 40044
1 = Prohibit
44 40045 Value 0 always returned
0 = COP priority
45 40046
1 = Capacity priority
Value in %.
46 40047
0 = 0% ... 100 = 100%
0 = Ordinary
47 40048
1 = Coercion

 
 
#6
 
#6
 
 
 
 
 
  
††
)
 
 
#6
 
#6


#6


#6
 


#7 #7

#8 #8

 

