ASSEMBLY INSTRUCTIONS
Quadro A
Need help!
Boardroom table
Call us on
1300 527 665
Size: 3200mm x 1100mm
F
STEP 04
TOP VIEW
STEP 05
F
F
F

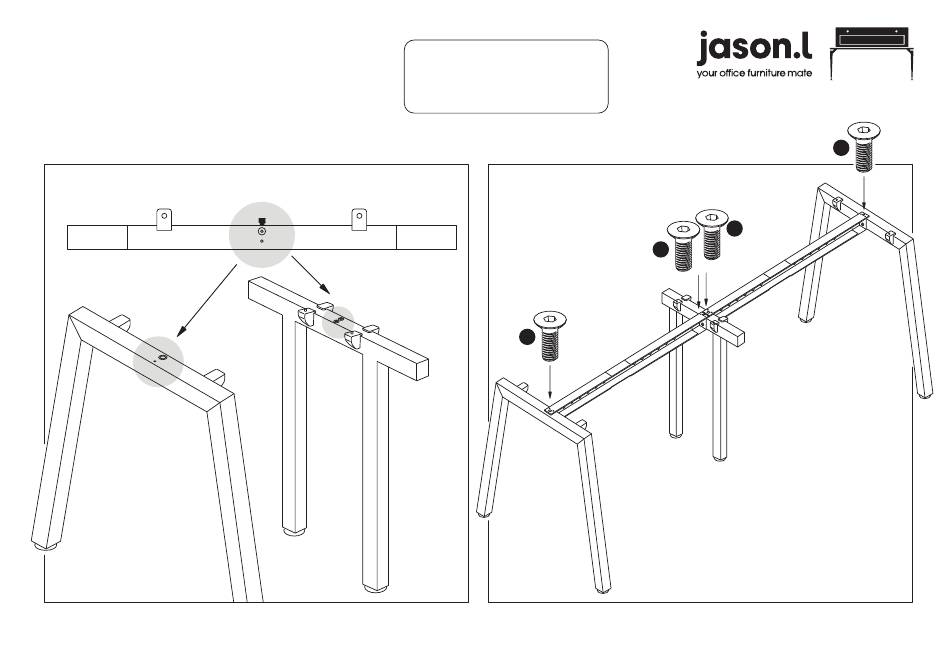

Attach beam (D) to legs (B) and Connector frame (C)
Frame looks like this. Using Allen Key, attach beam (D) with Socket (F)
using nut insert in legs. See point attached
Page 5 of 6
