TRASSIR TR-D7251WDIR2W User Manual

Specification
Model TR-D7251WDIR2W
Image sensor 1/2.8" CMOS 5МP
Resolution 5MP(2592x1920) 4MP(2560x1440)
3MP(2304x1280) 2MP(1920x1280)
Frame rate 5MP/4MP/3MP/2MP@25fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode Mechanical ICR
Sensitivity 0.003Lux (F1.8)
IR range up to 20 m
Lens (mm)
Field of view (horiz./vert.) 91˚ / 66˚
Axes setting
Pan: 0˚-360˚
Tilt: 0˚-90˚
Rotation: 0˚-30˚
WDR Real WDR (120dB)
Digital Noise Reduction
Video compression Н.265+ / Н.265 / H.264+ / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
1 in / 1 out
Motion sensor PIR-sensor
Wi-Fi
Corridor mode
IVS
Power PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 3.5W
PoE: 4.1W
Casing material
Dimensions (mm) 60 x 99 x 32.8
Net/Gross weight (g)
Working temperature -10°C ... +50°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8
3D DNR
2.4 Ghz
Yes
Yes
3
Plastic
95 / 220
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D7251WDIR2W

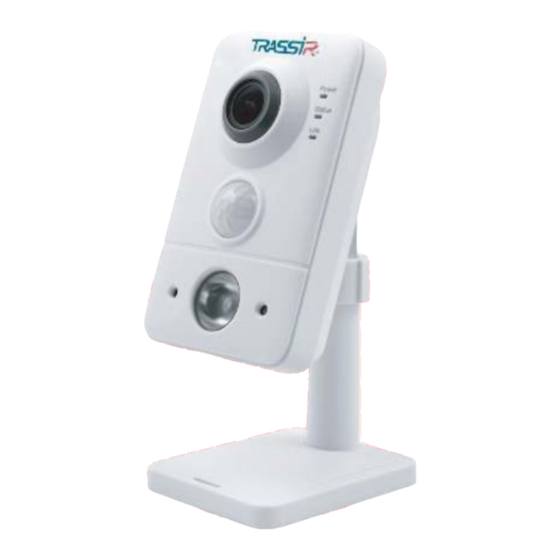

Indoor Cube Wireless camera
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
