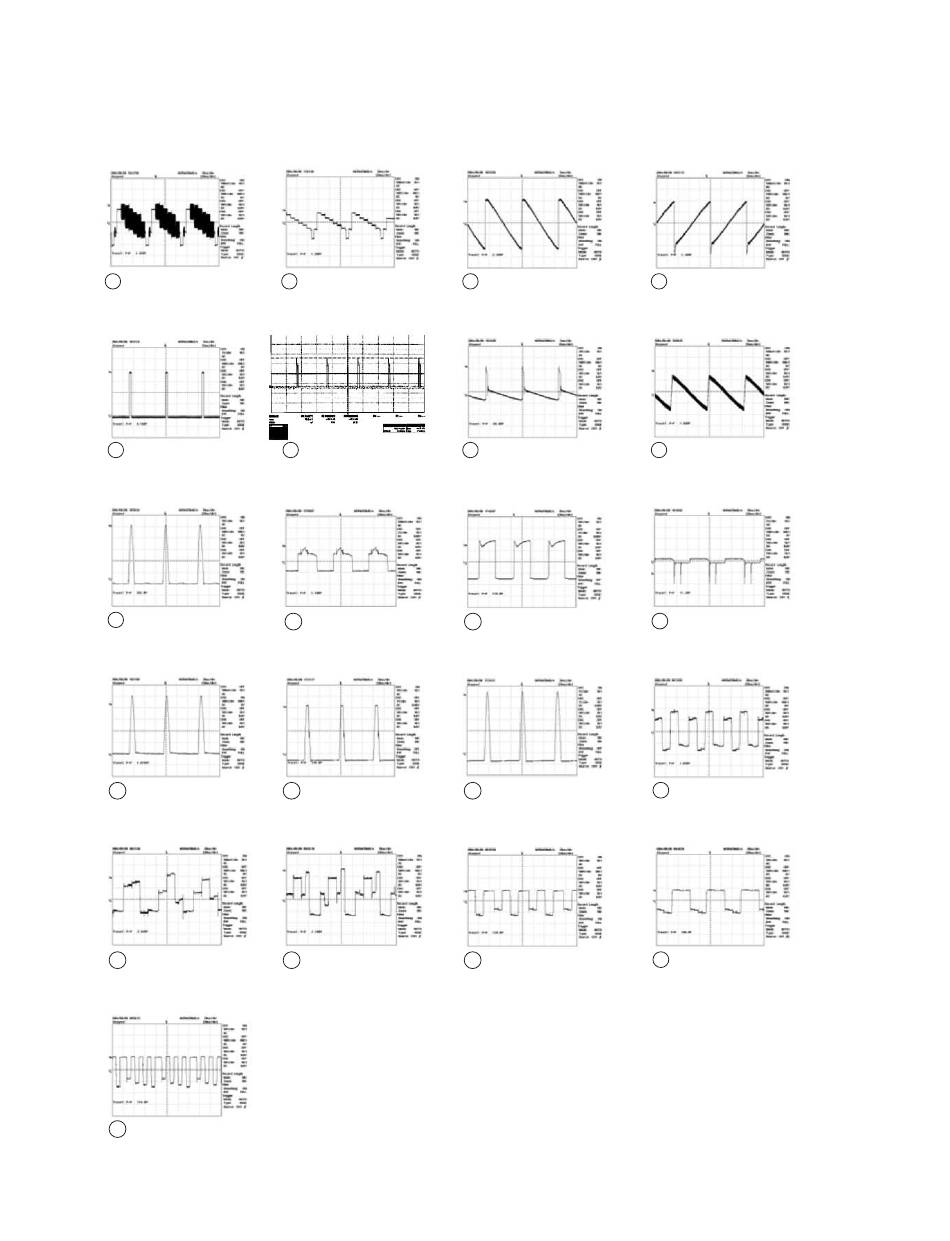

E Market 29L-FG5RU Service Manual 29L-FG5RU TV WAVEFORM
[1] WAVEFORM
Horizontal Rate
1
Vp - p = 2.02 V
Vertical Rate
5
Vp - p = 4.26 V
Horizontal Rate
9
Vp - p = 262.0 V
Horizontal Rate
13
Vp - p = 1.024 kV
Horizontal Rate
17
Vp - p = 2.04 V
Horizontal Rate
21
Vp - p = 134.0 V
WAVEFORMS
Horizontal Rate
2
Vp - p = 1.30 V
Vertical Rate
6
Vp - p = 29.40 V
Horizontal Rate
10
Vp - p = 262.0 V
Horizontal Rate
14
Vp - p = 248.0 V
Horizontal Rate
18
Vp - p = 2.10 V
9 – 1
Vertical Rate
3
Vp - p = 2.26 V
Vertical Rate
7
Vp - p = 52.70 V
Horizontal Rate
11
Vp - p = 178.0 V
Horizontal Rate
15
Vp - p = 31.20 V
Horizontal Rate
19
Vp - p = 120.0 V
29CTF05BS
Vertical Rate
4
Vp - p = 2.40 V
Vertical Rate
8
Vp - p = 1.80 V
Horizontal Rate
12
Vp - p = 11.20 V
Horizontal Rate
16
Vp - p = 1.84 V
Horizontal Rate
20
Vp - p = 106.0 V
