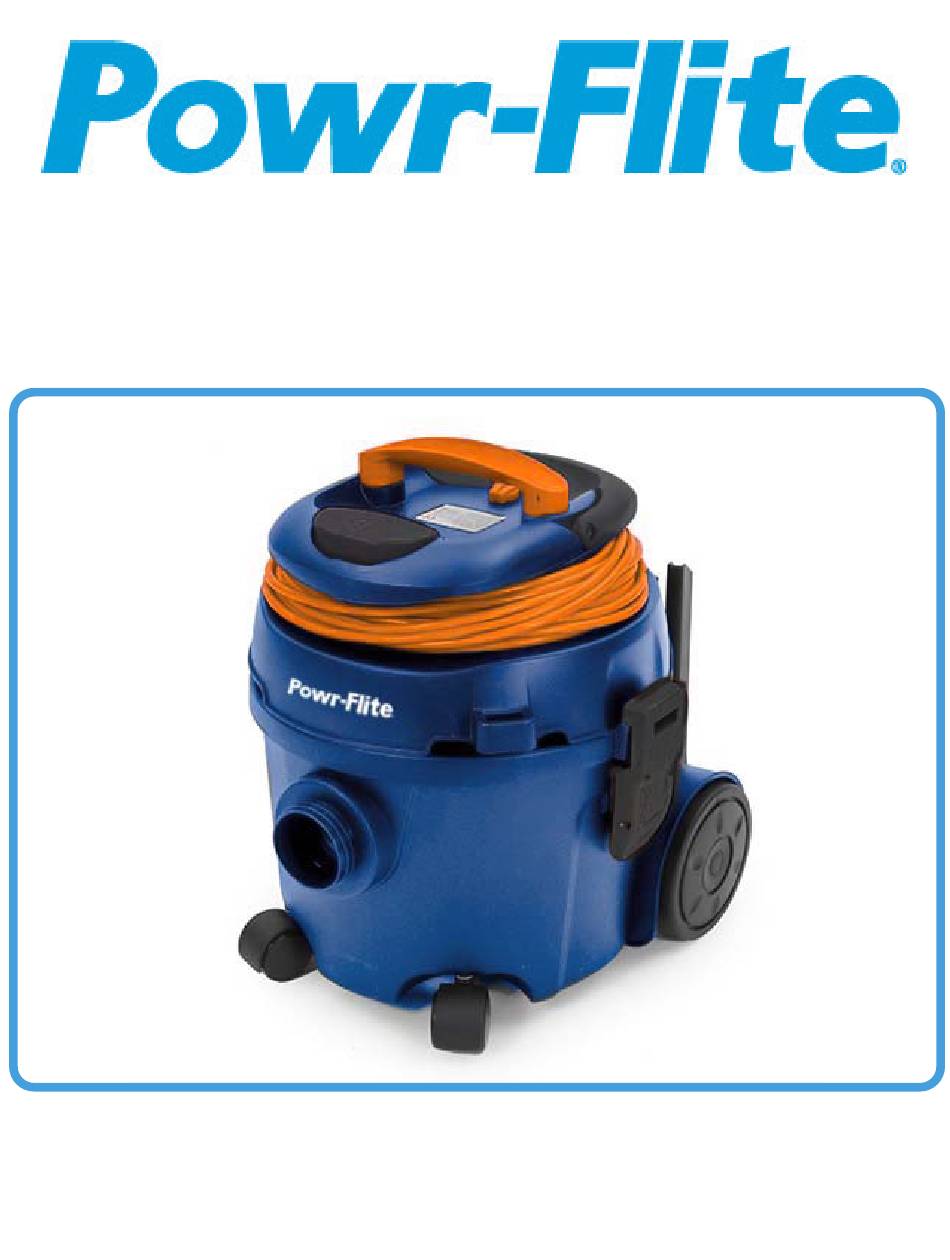

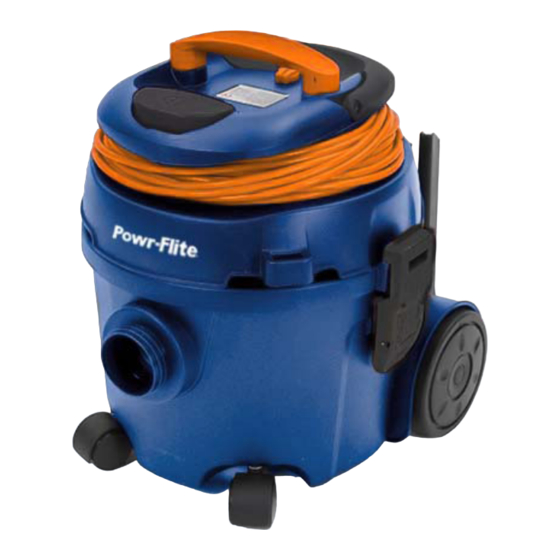

- Page 1 Newton Canister Vacuum Operations and Maintenance Manual For Commercial Use Only PV610-Q10-U...
-
Page 2: Table Of Contents
CONTENTS Getting Started Introduction Warranty Grounding Instructions Important Safety Instructions Technical Specifications Box Contents Template Operations Transport Storage Maintenance Recommended Spares & Accessories Fault Diagnosis... -
Page 3: Introduction
Your new Powr-Flite unit is a high quality, precision-made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. Please safeguard the original receipt/invoice given at the time of purchase. -
Page 4: Grounding Instructions
GROUNDING INSTRUCTIONS DANGER: Improper use of the grounding plug can result in a risk of electric shock. WARNING! Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT Read and understand this owner’s manual and all labels on the unit before operating. Safety is a combination of common sense,staying alert, and knowing how your unit works. Use this unit only as described in this manual. - Page 6 IMPORTANT SAFETY INSTRUCTIONS State of California Proposition 65 Warnings WARNING: This product contains one or more chemicals known to the state of California to cause cancer. WARNING: This product contains one or more chemicals known to the state of California to cause birth defects or other reproductive harm. Intended Use Do NOT modify this unit in any way or adapt it for any other use.
-
Page 7: Technical Specifications
SPECIFICATIONS Model Product Code PV610-Q10-U Voltage AC (~)/ Frequency V/Hz 115/60 Construction Class Vacuum Motor Power 1200 Filtration 3-stage (w/ H13 Filter Bag) Airflow Rate l/s/cfm 30.5/65 Water lift mm/inches 2529/100 Capacity litres/gallons 10/2.6 Productivity Rate m²/h/sq.ft./hr 232/2497 Sound pressure level dB(A) Sound power level dB(A) -
Page 8: Box Contents
BOX CONTENTS Upon initial receipt of unit, open box and ensure all parts are included as shown below. NEED PICTURE(S) OF BOX CONTENTS... - Page 9 OPERATING INSTRUCTIONS...
- Page 10 OPERATING INSTRUCTIONS...
- Page 11 OPERATING INSTRUCTIONS...
- Page 12 OPERATING INSTRUCTIONS...
- Page 13 OPERATING INSTRUCTIONS...
- Page 14 OPERATING INSTRUCTIONS...
- Page 15 OPERATING INSTRUCTIONS...
-
Page 16: Transport
TRANSPORTING THE MACHINE • Take extreme care when moving the machine up or down steps or stairs. • Incorrect lifting techniques may result in personal injury. We advise that the manual handling regulations are followed. Carefully wrap the power cord and store in dry indoor location. -
Page 17: Recommended Spares & Accessories
RECOMMENDED SPARES & ACCESSORIES Item Part No. F9 Rinseable Filter X6101 25 Pack HEPA Filter Bags X6100 Hose X6102 Telescopic wand X6103 Floor tool X6104 Dusting Brush and Crevice Tool X6105 Basket Filter X6107... -
Page 18: Fault Diagnosis
FAULT DIAGNOSIS The following simple checks may be performed by the operator. If the machine is still not working, please contact your local Service Agent: Trouble Reason Remedy Machine is not working Lack of voltage/electrical supply Check fuse *, power cord, plug and socket outlet Loss of vacuum suction Dust bag full. - Page 19 NOTES...
- Page 20 NOTES...
- Page 21 Powr-Flite 3101 Wichita Court Ft. Worth, TX 76140-1755 Phone: 817-551-0700 WWW.POWR-FLITE.COM Record of Purchase Serial Number: Purchase Date: Dealer: Phone Number: P-OMPV610-Q10-U 10/2022...
