Summary of Contents for Audiovox Mobile VIDEO PROV1022

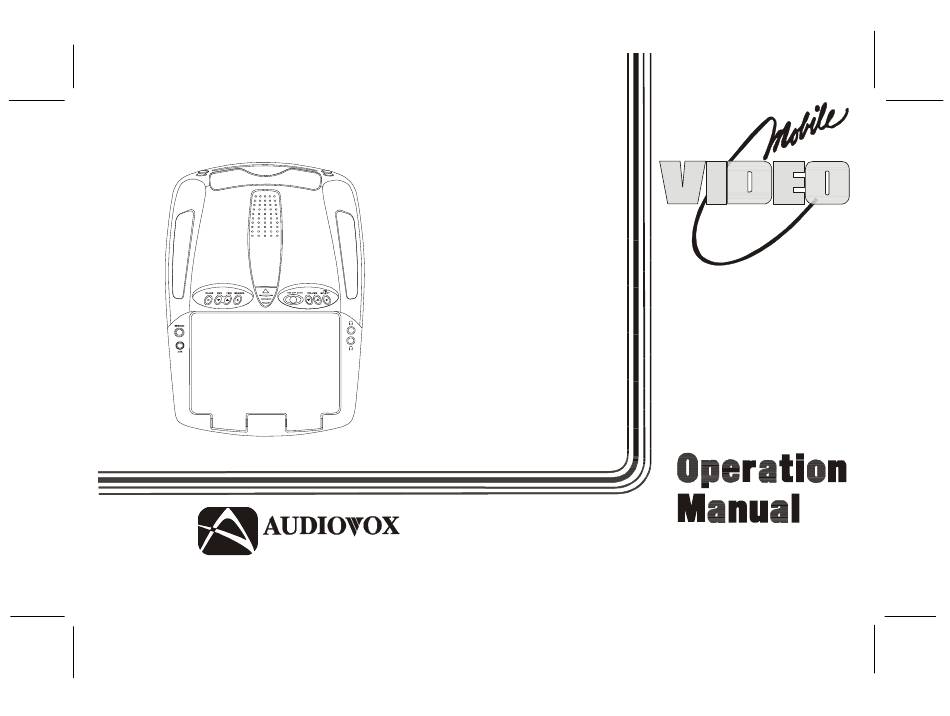

- Page 1 VOD705 PROV1022 / PROV1022 S / PROV1021 P DVD PLAYER WITH DROP-DOWN VIDEO TV/MONITOR ® ELECTRONICS CORP . 128-7178 128-7178 Release Date 14/Jul/04 1 of 30...
-
Page 2: Important Notice
Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”... -
Page 3: Safety Precaution
Features Congratulations on your purchase of the Audiovox PROV1022 / PROV1022 S / PROV1022 P DVD Player • • • • • 10.2” TFT Active Matrix Color LCD Monitor with Drop-Down Video monitor/TV. The PROV1022 / PROV1022 S / PROV1022 P has been designed to •... -
Page 4: Controls And Indicators Diagram
Controls and Indicators Diagram 128-7178 4 of 30... - Page 5 Main Function Descriptions 1. DVD Disc insertion slot – For loading Disc. 11. AUTO PROGRAM Button – Allows the user to scan and store active TV stations into memory. 2. POWER Button – Bright red when system is on dim when off.
- Page 6 It is also used to make picture adjustments in the picture select mode. Note : Audiovox recommends the use of the Audiovox HP275 Headphones when using wired headphones. 21. Three position Dome Light Switch •...
-
Page 7: Remote Control Operation
3) Align the cover tabs with the remote control and press down until the cover clicks. The remote control will operate the PROV1022 / PROV1022 S / PROV1022 P and most Audiovox VCP’s. It is not a universal remote control and will not control equipment from other manufacturers. 128-7178... - Page 8 Remote Control Function Descriptions Function control is available on the unit and the remote control 1. POWER Button* Press this button to turn the PROV1022 / PROV1022 S / PROV1022 P on. Press the button again to turn the PROV1022 / PROV1022 S / PROV1022 P off. 2.
- Page 9 6. Channel Up ( ) Button* Use this button to increase the channel number to the desired channel and to scroll upward in menu options. 7. MUTE Button Press this button to mute the audio. Pressing the button again restores the sound to the previously set level. 8.
-
Page 10: Display Button
13. DISPLAY Button Press to display DVD Disc current information. Press DISPLAY button DVD Player Perform Once Display current TITLE & CHAPTER Twice Display current SUBTITLE 3 times Display current AUDIO language & channel 4 times Display current ANGLE 5 times Display A-B current status 6 times Display REPEAT current status... - Page 11 17. REV ( ) Button* Allows the user to search in a backward direction at 2,4, 6 and 8 times the normal speed for DVD. Allows the user to activate the video tape rewind search mode for VCP. 18. FWD ( ) Button* Allows the user to search in a forward direction at 2,4, 6 and 8 times the normal speed for DVD.
-
Page 12: Setup Button
25. Channel Down ( ) Button* Use this button to decrease the channel number to the desired channel and to scroll downward in the menu options. 26. SETUP Button Allows the user to select the DVD player’s setup options (Display, OSD Language, Defaults, Parental Control, Password, Exit Setup). - Page 13 30. VOLUME UP (+) Button* Use this button to raise the volume level of the wired headphone jacks. This button is also used to make picture adjustments in the picture select mode. Note: The volume buttons will not affect the volume of wireless headphones or a wired FM modulator. When using these devices the volume must be adjusted with the wireless headphone volume control or with your radio’s volume control (see page 17, Headphones, or page 18, Wired FM Modulator).
- Page 14 MENU Button Function for TV MODE PROV1022/PROV1022S/ PROV1022P Menu Display Monitor Mode (DVD,AV,AUX) M E N U S EL E C T VID E O S EL E C T VID E O D V D S ET P IC T U R E M O D E S EL EC T V O L U M E A U X...
- Page 15 Direction of adjustment item MENU in DVD, AV1, AUX Item Right Button Left Button Enter Button Condition SELECT VIDEO To DVD mode To TV mode To AV1 mode To AUX mode SET PICTURE CONTRAST Decrease the contrast Increase contrast for To Contrast mode for soft color vivid color...
-
Page 16: Overhead Dome Lights
Turning the PROV1022 / PROV1022 S / PROV1022 P On or Off 1. Sliding the screen release lock in the direction of the arrow will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. The internal friction will hold the screen in position while the system is in use. -
Page 17: Remote Sensor
Accessories Wireless Headphones The PROV1022 / PROV1022 S / PROV1022 P includes a built-in infrared transmitter for use with Audiovox wireless headphones (P/N IR2CHS). The volume can then be adjusted using the controls on each headset. The wireless headphones must be used within a line of sight from the transmitter, as infrared transmissions, like visible light travel only in a straight line. - Page 18 Wired Headphones There are two 1/8” headphone jacks on the PROV1022 / PROV1022 S / PROV1022 P that can be used with any standard wired stereo headphones. These jacks are controlled by the volume up / down buttons on the PROV1022 / PROV1022 S / PROV1022 P and the remote control.
-
Page 19: Dvd Basics
DVD Basics To get the optimum use out of the DVD section, make sure you read this section completely. Regional Coding Both the DVD player and DVD’s are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. -
Page 20: Settings And Adjustments
Settings and Adjustments This chapter describes how to set and how to adjust using the on-screen DVD SETUP menu. Using the Setup Menu Using the setup display, you can do the initial setup, adjust the picture display ratio (16:9 or 4:3) and set the various outputs. - Page 21 Settings for Display Press the SETUP button and select Display. The DISPLAY SETUP allows you to adjust screen setting (aspect ratio) Press and then use the ( )buttons to select the appropriate settings. 4:3 / PS This displays the wide picture on the screen with a portion of the left &...
- Page 22 Settings for Parental (Parental Control) This section of the SETUP Menu allows user to control the content of movie playback from G to Adult. The Parental Control function allows you to limit viewing to your preference. 1. Use the buttons to select from: G (Children) PG 13 NC-17...
-
Page 23: New Password
Settings for Password (Parental Control Password) Press the SETUP button and select PASSWORD. The PASSWORD SETUP allows you to change the parental control password. Press and then press Enter. OLD PASSWORD Input the old password or the default password (4 digits) NEW PASSWORD Input a new password (4 digits) using numeric buttons CONFIRM PASSWORD... -
Page 24: Playing Audio Cds
Playing Audio CDs When playing an audio CD, the DISPLAY Banner appears automatically. It displays the current track and the amount of the time for that track playing, the total amount of time on the disc and the current time running on the disc. Press the DISPLAY button on the remote to display the DISPLAY Banner. -
Page 25: Playing Mp3 Discs
Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. - Page 26 Selecting Folders and Songs When an MP3 disc is inserted in the player, the Smart Nav screen appears automatically. You can change folders and songs through Smart Nav. The DVD player plays the songs in order they were burned on to the disc. 1.
-
Page 27: Troubleshooting
Troubleshooting PROBLEM SOLUTION PROBLEM SOLUTION • • Check the condition of the vehicle’s Make sure your DVD player is Poor in vehicle No sound or radio antenna. connected properly. Make sure all radio reception distorted sound • Verify that the antenna is fully raised. cables are securely inserted into the (FM modulator •... - Page 28 SOLUTION PROBLEM Picture is • The disc might be damaged. Try distorted another disc. • It is normal for some distortion to appear during forward or reverse scan. No forward or • Some discs have sections that reverse scan prohibit rapid scanning or title and chapter skip.
-
Page 29: Replacement Parts
Replacement Parts Specifications Remote Control 136B3447 LCD Backlighting Edge Light Tube Resolution 800 x 480 Pixels 1,152,000 Operation Temperature 32 -140º F (0 - 60º C) Storage Temperature -4 - 176º F (-20 - 80º C) Backlight life 10,000 Hours Video Display System NTSC / PAL Headphone Audio Output... - Page 30 Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
