Audiovox D1500B Owner's Manual

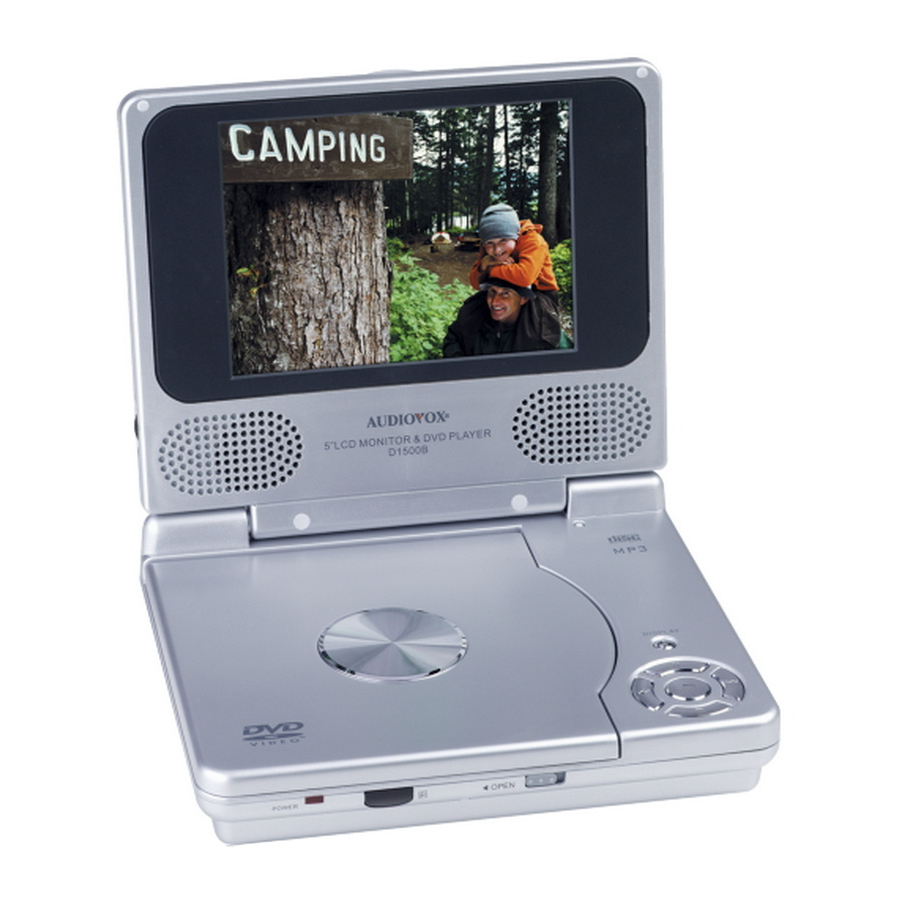

Portable 5" lcd monitor and dvd player
Hide thumbs

Advertisement

Quick Links

Download this manual
PORTABLE 5" LCD MONITOR AND DVD PLAYER
D1500B
D1500B
D1500B
D1500B
D1500B
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the D1500B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiovox D1500B

Summary of Contents for Audiovox D1500B

  • Page 1 PORTABLE 5" LCD MONITOR AND DVD PLAYER D1500B D1500B D1500B D1500B D1500B...
  • Page 2 Notice: This Product incorporates copyright protection technology that is pro- tected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights own- ers. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited view- ing uses only unless otherwise authorized by Macrovision Corporation.
  • Page 3 A. Introduction Thank you for choosing the D1500B portable DVD player. The main features include a 5" Screen (4:3 aspect ratio) Liquid Crystal Display (LCD) monitor and a DVD player. The unit applies the latest state of the art electronics and is designed for use in hotels, offices, vehicles or your home.
  • Page 4 heavy on the unit. To ensure proper ventilation and proper operation, never cover or block the slots and openings with a cloth or other material. Keep the unit away from an open flame such as fire, candle etc. It is hazardous to replace the battery incorrectly. Replace the battery only with the same or equivalent type, in order to protect the environmnent, please dispose of the battery prop- erly.
  • Page 5 C. Contents 1. 1 x 5’’ LCD Monitor & DVD Player Combination 2. 1 x AC to DC Adapter 3. 1 x Remote Control with battery (CR2025) 4. 1 x Rechargeable Battery 5. 1 x DC Power Adapter 6. 1 x Instruction Manual 7.
  • Page 6 E. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 2) 1) LCD Panel Shut Off Switch 2) Display Button 3) Pause Button 4) Skip+ Button 5) Play Button 6) Skip- Button 7) Stop Button 8) Brightness +/- Control Figure 2 9) DC 12V Input Jack 10) AV Out Jack...
  • Page 7 19) Play Button F. Loading and Playing a Disc a. After connecting power to the unit, power on DVD player by sliding the power switch to the on position. The power indicator will light. b. Open the disc tray by pressing the OPEN button and place a disc into the tray with the label side facing up.
  • Page 8 G. Setup Press ‘SETUP’ to display the Main screen of the Setup Menu on the screen. Press ‘SETUP’ again to exit the Setup Menu and the unit will resume it’s last playback mode. 1) Press “SETUP”, the ‘Language Setup Page’ will be displayed on the screen.
  • Page 9 b).Select ‘Audio’ using the UP/DOWN button, and then press the RIGHT button to enter the submenu. Choose the Audio Language you de- sire using the UP/DOWN button and then press ENTER to confirm the setting. Press the LEFT button to return. Audio Language Screen Display c).Select ‘Subtitle’...
  • Page 10 4). Press the left button to return to the main menu. Select ‘Screen Setup’ using the UP / DOWN button, then press ENTER to enter the screen setup page. a. Select ‘TV Display’ using the UP/DOWN button, then press RIGHT to enter the submenu.
  • Page 11 3).Press the left button to return to the main menu. Select “Custom Set- up” using the UP/DOWN button, then press the ENTER button to access the custom setup page. a. Select ‘Parental’ using the UP/DOWN button, then press RIGHT to enter the submenu.
  • Page 12 c. Select ‘Default’ using the UP/DOWN button, then press RIGHT to en- ter the submenu. Press ENTER to make all of the settings return to the factory preset mode. NOTE: The parental setting is not affected by the default reset function.
  • Page 13 H. Basic Operation POWER OPEN PLAY PAUSE STOP NEXT PREVIOUS FORWARD REVERSE LEFT/RIGHT/UP/DOWN ENTER NUMBERS MENU 1/ALL REPEAT A-B REPEAT DISPLAY SUBTITLE AUDIO ZOOM SETUP Turn the unit on/off Remove/load the disc Start Play/Execute item or setting Still Picture (1 time) Stop at the present playing point (2 times) Stop playing Go to the next chapter, track or scene dur- ing play back...
  • Page 14 I. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu.
  • Page 15 c. Press ‘DISPLAY’ a third time to display the Elapsed Time for the chapter. The heading will disappear automatically in 3 seconds. Chapter Elapsed Time Screen Display d. Press ‘DISPLAY’ a fourth time to display the Remaining Time for the chapter. The heading will disappear automatically in 3 seconds. Chapter Remaining Time Screen Display e.
  • Page 16 2. SUBTITLE During disc playback press ‘SUBTITLE’ to select the subtitle language you desire*, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are mul- tiple languages press ‘SUBTITLE’ again to select another subtitle lan- guage.
  • Page 17 3. AUDIO During playback press ‘AUDIO’ to select the audio language you de- sire*, with the current Audio Channel Number (1) and the total number of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automatically if the ‘AUDIO’...
  • Page 18 5. A-B REPEAT During playback press ‘A-B’ once to set the Starting Point A. A-B Repeat Starting Point Screen Display Press ‘A-B’ a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B.

  • Page 19: All Repeat

    6. 1/ALL REPEAT a. During playback press ‘1/ALL REPEAT’ once to repeatedly play the current chapter. Chapter Repeat Screen Display b. During playback press ‘1/ALL REPEAT’ again to repeatedly play the current title. c. During playback press ‘1/ALL REPEAT’ a third time to repeat whole disc.
  • Page 20 d. Press ‘1/ALL REPEAT’ a fourth time, to cancel the repeat function and resume normal playback. Repeat Off Screen Display K. Playing Audio CDs When playing an audio CD the track and playback time information will automatically be displayed. Pressing the display button will change the displayed information.

  • Page 21: Using The Repeat Feature

    c. Press ‘DISPLAY’ a second time and Total Remain appears along with the current track playing and the total time left. d. Press ‘DISPLAY’ a third time and Display Off appears. The disc information will no longer be displayed. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF.
  • Page 22 CD-R /RW discs that have been encoded in MP3 format are compatible with this system. Insert a MP3 CD, the DVD player will initialize the disc and the directory (folder) will be displayed.
  • Page 23 Use the ( NEXT ) button to move to the next song. Press the (PREVIOUS) button to move to the beginning of the previous song. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: •...
  • Page 24 M. Playing JPG file 1) Load the JPG Disc into the tray and JPEG playback starts automatically. 2) To select individual JPEGs press the menu button to display folders and a list of the JPEGs contained within. 3) To select a folder highlight the desired folder on the left side and press “ENTER“.
  • Page 25 N. Connecting to a TV or another monitor ( Refer to Figure 4) You can also connect the DVD player to a TV to enjoy high quality stereo sound and picture on another monitor as follows: Connect one end of the audio/video cable’s black (1/8” plug) plug into the unit’s AV Out jack, and connect the other end to the AUDIO...
  • Page 26 Please fully charge the battery prior to first use. NOTE: When the DVD player is used for the first time ensure that the battery has been charged for at least eight hours prior to connecting it to the DVD player.
  • Page 27 airtight container with desiccant or other dehumidifying agent. Each full recharge takes approximately five-hours and one full charge can provide power to the player for approximately 2 hours. During recharge, the red indicator will stay on. Once fully recharged, the red light will turn off. At this point you may remove the wall plug and stop charging.
  • Page 28 4. Push the battery towards the rear of the player until it locks into position. The lock position is indicated by a click. The unit will fit snugly to the player. 5. Push the battery plug into the DVD player DC input jack. Installing the DVD Player Battery Removing the Battery Pack: 1.

  • Page 29: 90-Day Limited Warranty

    90 DAY LIMITED WARRANTY Applies to Audiovox Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 30 © 2004 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 128-7212A...
