Audiovox AVXMTG 10U Operation Manual

10-inch roof-mount dvd player with dvd/cd/mp3 system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

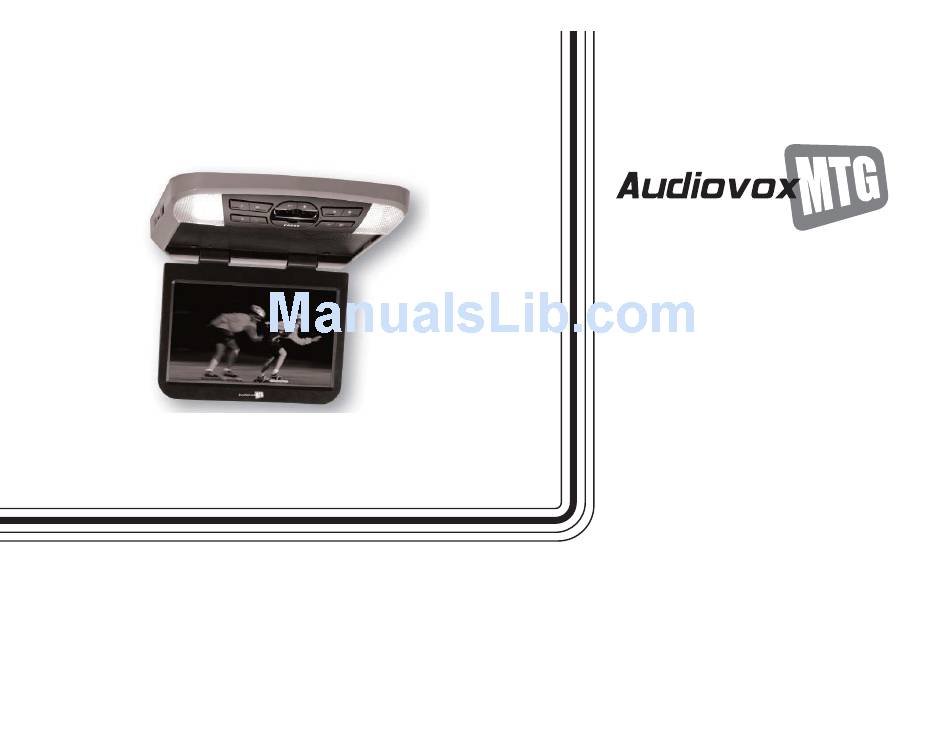

10
-Inch Roof-Mount DVD Player
3
With DVD/CD/MP
SYSTEM
10U
AVXMTG
OPERATION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVXMTG 10U and is the answer not in the manual?

Questions and answers

Related Manuals for Audiovox AVXMTG 10U

Summary of Contents for Audiovox AVXMTG 10U

  • Page 1 -Inch Roof-Mount DVD Player With DVD/CD/MP SYSTEM AVXMTG OPERATION MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Notices ............................2 Congratulations .............................. 3 Features ................................3 Controls and Indicators Diagram ......................4 Remote Control Operation ........................6 DVD Basics ...............................10 Loading and Playing Discs ........................12 Settings and Adjustments........................12 Playing JPG Files ............................16 Playing MP3 Files ............................17 Source Features ............................18 Troubleshooting ............................20 Specifi...

  • Page 3: Important Notices

    System adjustments can be accomplished using the remote control, while seat-belts remain fastened. Enjoy your AUDIOVOX entertainment system but remember that the safety of all passengers remains the number one priority.

  • Page 4: Congratulations

    CONGRATULATIONS Congratulations on your purchase of the AUDIOUVOX AVXMTG10U DVD player with Drop-Down Video/Monitor. The AVXMTG10U player has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow in order to familiarize yourself with the product to ensure that you obtain the best results from your equipment.

  • Page 5: Controls And Indicators Diagram

    CONTROLS AND INDICATORS DIAGRAM 1. Dome Lights - Provides additional interior illumination. Front View 2. SOURCE (S) Button - Press this button to select one of the sources: DVD, AV IN, CARD, USB. 2 3 4 5 6 7 8 9 10 11 12 1 3.
  • Page 6 1. DVD Disc insertion Slot - For loading and removing disks. Turn the unit on Side Views before loading a disc. Insert a disc with the label facing up towards the headliner. The player will load a disc when a disc is inserted. 2.

  • Page 7: Remote Control Operation

    REMOTE CONTROL OPERATION Battery Installation Before attempting to operate your remote control, install the battery as described below: 1. Using your fi nger, press the tab (1) down in the direction of the arrow. 2. Slide the battery holder (2) out in the direction of the arrow. 3.
  • Page 8 Remote Control Functional Description 1. POWER ( ) Button - Press this button to turn the unit ON and OFF. 2. NUMBER Buttons - Press to enter the numbers 0 to 9 for selection of CD tracks, DVD chapters or password setting. 3.
  • Page 9 Remote Control Functional Description 11. MUTE Button - Press this button to mute the audio for wireless FMM. 12. DAY/NIGHT Button- This control toggles the unit between “ DAY” and “NIGHT” LCD illumination modes. In the “DAY” mode, the LCD backlight intensity is at maximum.
  • Page 10 Remote Control Functional Description „ 21. STOP ( ) Button - Press this button to stop playback. 22. SOURCE Button - Press to select the source menu (DVD/AV1/CARD/USB). 23. SCAN FORWARD/CURSOR ( ) Button - Scan forward at 2, 4, 8, 16, and 32 times speed.

  • Page 11: Dvd Basics

    DVD BASICS To get the optimum use out of the DVD player, please read this section. DVD Region Code The DVD player is preset to a region code at the factory depending on where the unit is sold. DVDs are also coded by region. These region codes must match in order for the disc to play.

  • Page 12: Disc Compatibility

    Types of Discs Your System Will Play Your system will play the following types of discs: • DVD disc - DVD discs that contain video. • Audio discs - Audio CDs that contain musical or sound content only. • MP3 discs - A disc that contains audio fi les (for example, a CD-R with downloaded MP3 fi les). This unit is capable of playing most recordable DVD formats.

  • Page 13: Loading And Playing Discs

    LOADING AND PLAYING DISCS 1. Press the Screen Release (PRESS) button to unlock the LCD screen. The LCD screen will drop down slightly. 2. Pivot the screen downward until a conformable viewing angle is reached. The hinge friction will hold the screen in position while the unit is in use. 3.
  • Page 14 General Setup Page Menu TV Display This item allows you to set the screen display format. - - General Setup Page - - TV Display Wide Normal/PS Optional Settings: Normal/PS, Normal/LB, Wide Angle Mark Normal/LB The default setting is Wide. TV Type NTSC Wide...
  • Page 15 General Setup Page Menu (continued) OSD Language This item allows you to choose an On Screen Display menu language. - - General Setup Page - - TV Display Wide Optional Settings: English, Spanish, French, Italian Angle Mark The default setting is English. TV Type NTSC English...
  • Page 16 Preference Page Menu Audio This item allows you to select an audio language for DVD playback. The audio language depends on the - - Preference Page - - Audio English information available on each disc. Subtitle French Optional Settings: English, Spanish, French, Italian. Disc Menu Spanish Parental...

  • Page 17: Playing Jpg Files

    Preference Page Menu (continued) Default This item allows you to reset all settings to the original factory settings. Select this item and press the “OK” button. - - Preference Page - - Audio Note: This function does not reset the Parental level to the original factory setting. Subtitle Disc Menu Parental...

  • Page 18: Playing Mp3 Files

    PLAYING MP3 FILES MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on a DVD player. The DVD player plays the songs in the order they were burned on to the disc.

  • Page 19: Source Features

    SOURCE FEATURES 1. Press the “SOURCE” button on the unit or remote control. The following menu will appear on the screen: AV IN CARD 2. Press the “ ” or “ ” cursor button to choose an item. 3. Press the “OK” button. Last Memory for the DVD mode: If the unit is turned off...
  • Page 20 Overhead Dome Lights The Dome Lights integrated into the unit are controlled by a three position slide switch. Sliding the switch to the ON position will turn the light ON. The OFF position will prevent the lights from turning ON with the vehicle interior lighting. The AUTO position will allow the lights to turn ON and OFF with the vehicle interior lighting.

  • Page 21: Troubleshooting

    TROUBLESHOOTING Problem Solution IR remote is inoperative. 1. Verify that the batteries in the remote are fresh. 2. Verify that the infrared remote sensor is not obstructed. Disc will not play or wrong region is 1. Insert a disc with the label side facing up towards the headliner. displayed.
  • Page 22 Problem Solution Picture is distorted. 1. The disc might be damaged, try another disc. 2. It is normal for some distortion to appear during forward or reverse scan.

  • Page 23: Specifi Cations

    SPECIFICATIONS Type: TFT Active Matrix LCD Screen Resolution: 800 x 480 pixels (RGB) Operation Temperature: 32 to 131 °F (0 to 55 °C) Storage Temperature: -4 to 158 °F(-20 to 70 °C) Backlight: Power Source: 12 VDC Video Display System: NTSC/PAL Headphone Audio Output: 0.05W @ 32 ohms...

  • Page 24: Notes

    NOTES...
  • Page 25 NOTES...
  • Page 26 Applies to Movies To Go Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 27 © 2010 AUDIOVOX,150 Marcus Blvd. Hauppauge, NY 11788 128-8901...
  • Page 28 -Inch Roof-Mount DVD Player With DVD/CD/MP SYSTEM AVXMTG INSTALLATION GUIDE...
  • Page 29 TABLE OF CONTENTS Important Notices ............................2 Materials Included in this Package ..................... 3 Removing and Installing Snap On Covers ..................4 General Vehicle Installation Approach ..................... 7 Connecting the Dome Lights ......................10...

  • Page 30: Important Notices

    System adjustments can be accomplished using the remote control, while product. seat-belts remain fastened. Enjoy your AUDIOVOX entertainment system but remember that the safety of all passengers remains the number one priority. An LCD panel and/or video monitor used for television reception, video or...

  • Page 31: Materials Included In This Package

    MATERIALS INCLUDED IN THIS PACKAGE 1. 10” LCD Overhead Monitor with DVD player (1 pc) 2. 6 Pin Power Harness (1 pc) 3. 2 Pin Power / Wire Harness with Choke (1 pc) 4. 3 RCA Jack Pigtail (1 pc) 5.

  • Page 32: Removing And Installing Snap On Covers

    REMOVING AND INSTALLING SNAP-ON COVERS Preparation Place the unit on a soft surface to avoid damaging the plastic. Materials Required Shroud Screen Cover Pry Tool 10” Overhead LCD Monitor with DVD Player Disconnecting the Screen Cover “C” “B” “A” “C” 1.
  • Page 33 Installing the Screen Cover “D” “D” “D” “D” 1. Open the LCD screen. 2. Hook the two tabs “D” at the bottom edge of the screen cover into the notches on the bottom edge of the LCD screen. 3. Snap the opposite side of the screen cover over the hinges.. Disconnecting the Shroud “E”...
  • Page 34 Installing the Shroud “F” “F” “F” Expanded view 1. Open the LCD screen. 2. Slide the shroud over the unit. The shroud will snap into place at locations “F”.

  • Page 35: General Vehicle Installation Approach

    GENERAL VEHICLE INSTALLATION APPROACH 1. Decide upon the system confi guration and options that will be installed. 2. Review all manuals to become familiar with electrical requirements and hookups. 3. Decide upon the mounting locations of all components and the method of mounting. 4.
  • Page 36 GENERAL VEHICLE INSTALLATION APPROACH Installing Unit to Roof Roof Roof Support Headliner Mounting Bracket Self-drilling Screws Video Unit M5 Screw...
  • Page 37 GENERAL VEHICLE INSTALLATION APPROACH *Optional Relay Box Signal Harness To Dome Lights See “Connecting 6 Pin the Dome Lights” Power Harness 2 Pin Power Wire Harness with Choke AV IN 3 RCA Jack Pigtail...

  • Page 38: Connecting The Dome Lights

    CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply voltage to the interior lights to turn them on. Negative switched systems apply ground to illuminate the bulbs. To determine which system you have, you must locate the wires at the dome light.
  • Page 39 Positive Switched Dome Lighting To 6 pin Red/black-Lamp on constant connector Black/red-Lamp common +12 VDC on Monitor Purple/brown-Lamp Auto constant +12 VDC Factory Door Ajar Switch or Body Control Computer...
  • Page 40 Negative Switched Dome Lighting Red/black-Lamp on To 6 pin Black/red-Lamp common connector Purple/brown-Lamp Auto constant +12 VDC constant +12 VDC Factory Door Ajar Switch or Body Control Computer...
  • Page 41 © 2010 AUDIOVOX,150 Marcus Blvd. Hauppauge, NY 11788 128-8902...
