Propane tank not included
AA battery needed, not included
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER
This appliance complies with "ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.

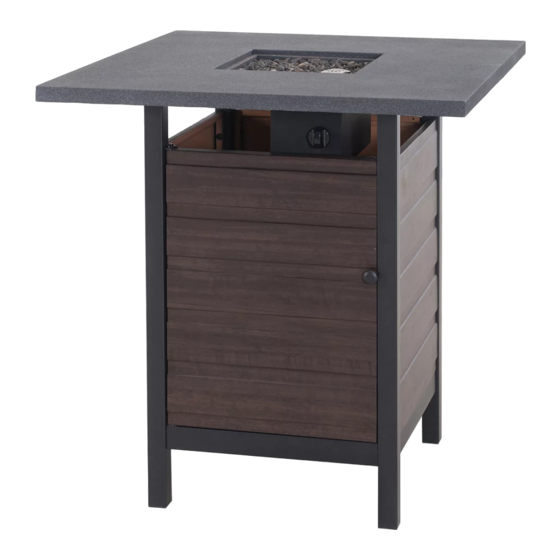

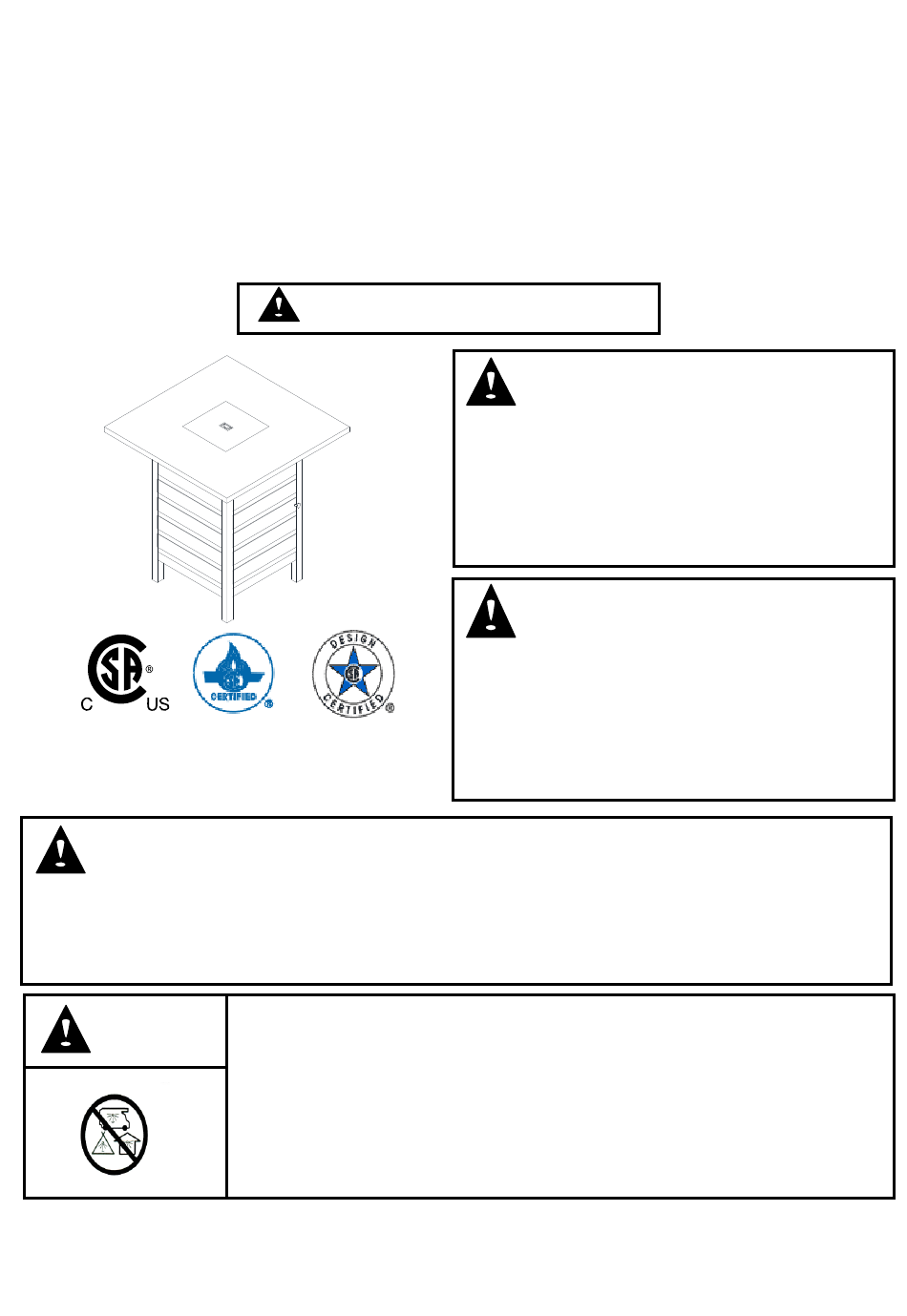

Bayshore High Fire Pit Table
ASSEMBLY INSTRUCTION
Item#
L-BS1173SST-D-T
SKU#
WARNING: For Outdoor Use Only.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
810367858
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
1 of 14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy L-BS1173SST-D-T
Summary of Contents for Sunjoy L-BS1173SST-D-T
- Page 1 Bayshore High Fire Pit Table ASSEMBLY INSTRUCTION Item# L-BS1173SST-D-T SKU# 810367858 WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 2: Table Of Contents
We would like to hear from you with any comments or suggestions. In the continental U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 from 8:00 am EST to 8:00 pm PST Monday to Friday. You can also send us an email to biglots@sunjoygroup.com... -
Page 3: Specification
SPECIFICATION Product name Bayshore High Fire Pit Table Model NO. L-BS1173SST-D-T Rated Heat Output 26,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.57 mm Gas Supply Pressure Max.250 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION ... - Page 4 gas leak. Have the appliance inspected annually by a qualified service person. The pressure regulator and hose assembly provided with the appliance must be used. replacement part must be the same as the part specified by manufacturer. The assembly of LP-gas and leak checking please refer to the “Gas connection”...
-
Page 5: Expanded View
EXPANDED VIEW 5 of 14... -
Page 6: Parts List
Parts List Description Description Gas Rack P20701A01108 P20801A01108 Table Top Panel P12301A01098 P21109A01097 Bowl Leg 3 P22001A01108 P11115A01108 Back Panel Door P21212A01097 P20908A01097 Lava rock Leg 1 1(1KG) P99903A01903 P11113A01108 Leg 2 P11114A01108 Hardware Bag Part Number Description Image M6*25 H02025C11 Bolt H12001C11... -
Page 7: Installation
INSTALLATION Installation will be much easier by two or more people. Step1: Fix the two leg 1 (E) to back panel (D) by bolt (AA) and flat washer (BB). Step 2: Fix the one leg 2 (F) and leg 3 (J) to the door (K) by bolt (AA) and flat washer (BB). 7 of 14... - Page 8 Step 3: Fix the two panels (H) to the gas rack (G) by bolt (AA) and flat washer (BB). Step 4: Fix the assembled back panel (D) to the two panels (H) by bolt (AA) and flat washer (BB). 8 of 14...
- Page 9 Step 5: Fix the assembled door (K) to the two panels (H) by bolt (AA) and flat washer (BB). Step 6: Fix the bowl (C) to the table top (B) by bolt (DD) and flat washer (BB). 9 of 14...
- Page 10 Step 7: Fix the assembled table body to the table top by bolt (CC) and flat washer (BB) as the above picture showed. Step 8: Turn over the fire pit table and put the lava rock into the bowl. Put the lid onto the table top.
-
Page 11: Location
LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 12: Operation
Fig.7 Fig 7 Fig 8 OPERATION: LEAK TEST !!!WARNING!!! Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak check must be performed whenever the gas cylinder is replaced. ... -
Page 13: Storage And Maintenance
While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. NOTE: The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7. -
Page 14: Trouble Shooting
Clogged or dirty burner Clean burner ports ports If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866) 578-6569). LIMITED WARRANTY: Subject to the conditions set out below, this product is warranted to the original purchaser to be free from... - Page 15 30 minutes. It is rare that any crackling will happen on the first use, this is simply precaution. For technical assistance or questions, call Sunjoy Group at 1(866) 578-6569 from 8:00AM EST to 8:00PM PST Monday to Friday or email to biglots@sunjoygroup.com or visit www.sunjoyonline.com for...
