Propane tank not included
AA battery needed, not included
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER
This appliance complies with "ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.

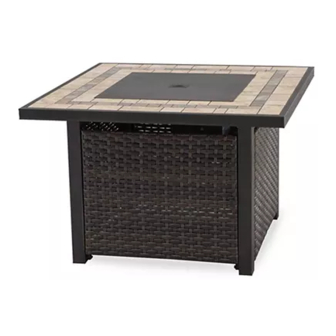

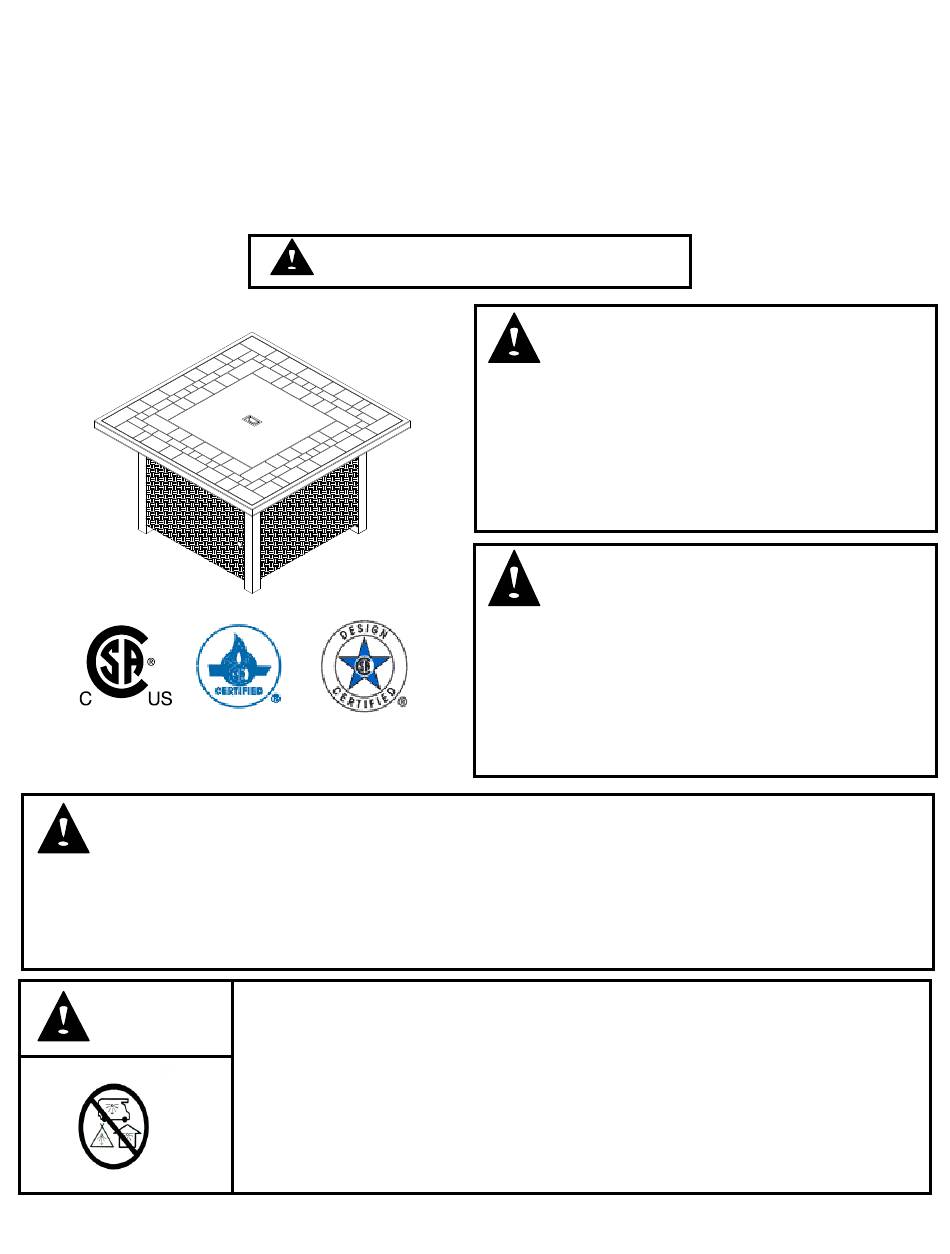

Augusta Tile Top Fire Pit Table
Assembly Instruction
L-FT1101PST-B
Item#
SKU# 810367905
WARNING: For Outdoor Use Only.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
1 of 15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy L-FT1101PST-B
Summary of Contents for Sunjoy L-FT1101PST-B
- Page 1 Augusta Tile Top Fire Pit Table Assembly Instruction L-FT1101PST-B Item# SKU# 810367905 WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 2: Table Of Contents
We would like to hear from you with any comments or suggestions. In the continental U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 from 8:00 am EST to 8:00 pm PST Monday to Friday. You can also send us an email to biglots@sunjoygroup.com... -
Page 3: Specification
SPECIFICATION Product name SONOMA TILE TOP FIRE PIT TABLE Model NO. L-FT1101PST-B Rated Heat Output 35,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.9mm Gas Supply Pressure Max.250 PSI IMPORTANT SAFETY INFORMATION AND PRECAUTION When the appliance is for connection to a fixed piping system, the installation must conform with local codes, or in the absences of local codes with the National Fuel Gas Code, ANSI Z223.1/NFPA54;... - Page 4 gas leak. Have the appliance inspected annually by a qualified service person. The pressure regulator and hose assembly provided with the appliance must be used. replacement part must be the same as the part specified by manufacturer. The assembly of LP-gas and leak checking please refer to the “Gas connection” on page 11 and “Leak Test”...
-
Page 5: Expanded View
EXPANDED VIEW 5 of 15... -
Page 6: Parts List
Parts List Description Description Ignition Wire P20708A01142 P99002B07002 Table Top Battery Box P12313A01142 P99001C07001 Fire Bowl Pressure Regulator P20212A01098 P99001D07001 Side Panel 1 Thermocouple P21122A01142 P99002E04000 Rear Panel Control Valve P21215A01142 P99001F04000 Shelf Control Knob P20804A01142 P99001G07001 Door Corrugated pipe P20915A01142 P99002H02000 Side Panel 2... -
Page 7: Installation
Hardware Bag Description Image M6x15 Bolt H01015C11 M6x30 Bolt H01030C11 M6x15 Screw H09015C11 M6 Washer H12001C11 Wrench H00001C12 If you want to replace the parts listed, please contact Customer Service Center: 1-866-578-6569 INSTALLATION Installation will be much easier with two or more people. Step 1: Attach side panel 1 (D) and side panel 2 (H) to shelf (F) by bolt (BB) and flat washer (DD) as Fig 1-1 and Fig 1-2 showed. - Page 8 Step 2: Attach side panel 1(D) and side panel 2 (H) to door (G) by bolt (BB) and flat washer (DD) as Fig 2 showed. (Note: Please make sure door should be assembled close to shelf (F).) Step 3: Attach side panel 1(D) and side panel 2 (H) to rear panel (E) by bolt (BB) and flat washer (DD) as Fig 3 showed.
- Page 9 Step 4: Put the Table Top (B) and fire bowl (C) upside down, connect them with Bolt (CC) and Washer (DD). (Note: Before this step, please take out the foam in the carton and put it underneath the table top to avoid surface abrasion.) Step 5: Attach the assembled frame to table top (B) by bolt (AA) and washer (DD).
- Page 10 Step 6: The Lava Rock (H1) should be put in the bottom of the fire bowl (C) and come up just as high as the fire ring. Step 7: Put the lid (A) on the Table Top (B) 10 of 15...
-
Page 11: Location
LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 12: Operation
Fig 8 OPERATION: LEAK TEST !!!WARNING!!! Do not use an open flame to A leak check must be performed whenever the gas cylinder is replaced. 1. Make sure the control knob is in the “OFF” position. 2. -
Page 13: Storage And Maintenance
While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. NOTE: The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7. -
Page 14: Trouble Shooting
Clogged or dirty burner Clean burner ports ports If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866) 578-6569). LIMITED WARRANTY: Subject to the conditions set out below, this product is warranted to the original purchaser to be free from... - Page 15 It is rare that any crackling will happen on the first use, this is simply precaution. For technical assistance or questions, call Sunjoy Group at 1(866) 578-6569 from 8:00AM EST to 8:00PM PST Monday to Friday or email to biglots@sunjoygroup.com or visit www.sunjoyonline.com for more information or assistance.
