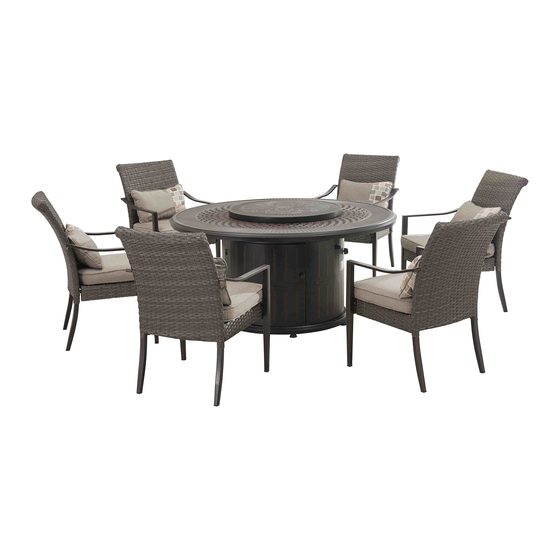

Sunjoy L-DN1377SAL-A Assembly Intruction
Hide thumbs Also See for L-DN1377SAL-A:

Advertisement

Quick Links

Propane tank not included
AA battery needed, not included
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other appliance.
DANGER
This appliance complies with "ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.
Made In China

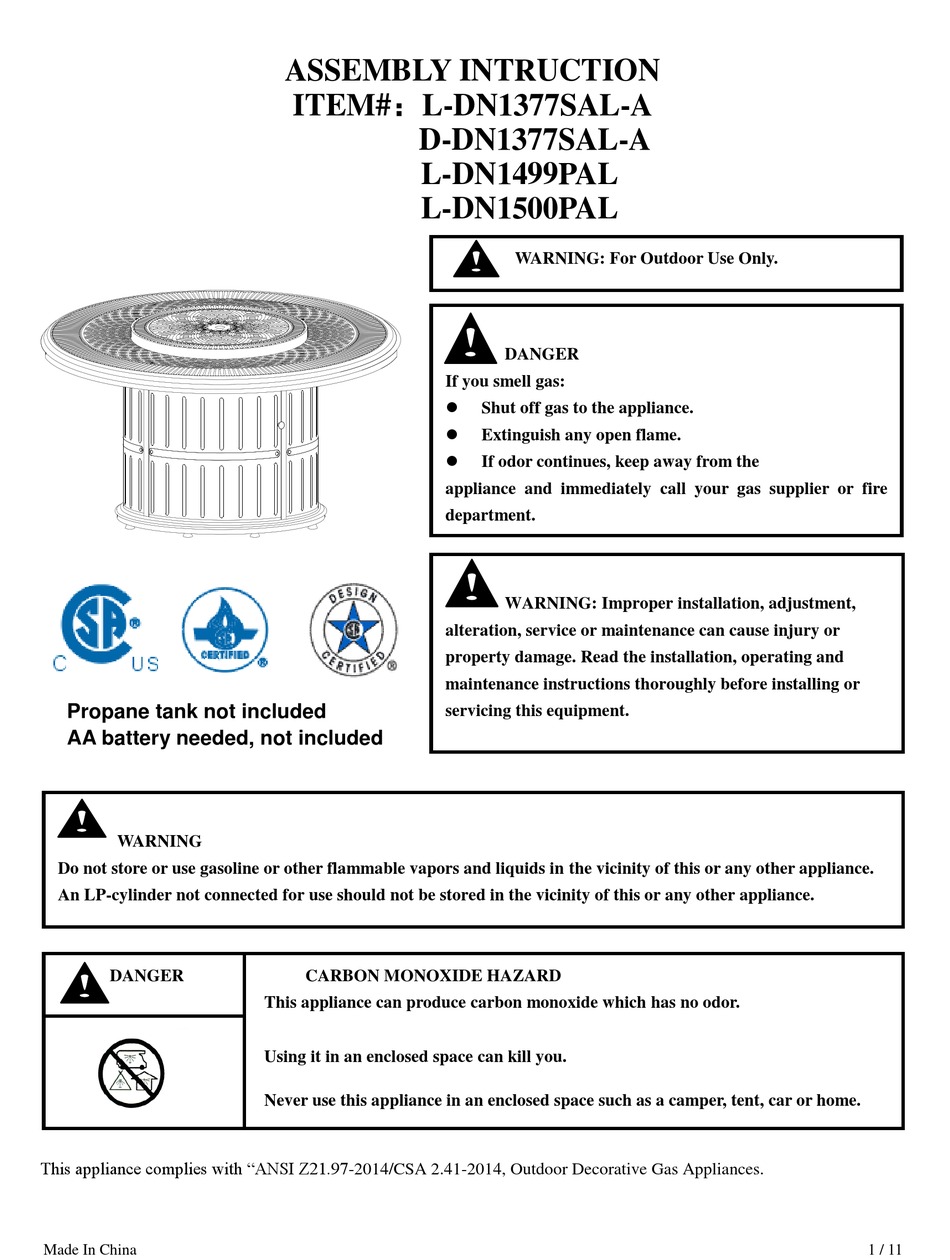

ASSEMBLY INTRUCTION
ITEM#:L-DN1377SAL-A
D-DN1377SAL-A
L-DN1499PAL
L-DN1500PAL
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car or home.
WARNING: For Outdoor Use Only.
DANGER
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, keep away from the
appliance and immediately call your gas supplier or fire
department.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury or
property damage. Read the installation, operating and
maintenance instructions thoroughly before installing or
servicing this equipment.
1 / 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-DN1377SAL-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy L-DN1377SAL-A

  • Page 1 ASSEMBLY INTRUCTION ITEM#:L-DN1377SAL-A D-DN1377SAL-A L-DN1499PAL L-DN1500PAL WARNING: For Outdoor Use Only. DANGER If you smell gas:  Shut off gas to the appliance.  Extinguish any open flame.  If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS ………………………………………………………………………………….. General information ……………………………………………………………………………………….. Specifications …………………………………………………… Important safety information and precaution ……………………………………………………………………………………….. Expanded view ………………………………………………………………………………………………. Parts list …………………………………………………………………………………………… Installation ………………………………………………………………………………………………. Location …………………………………………………………………………………………………... Set up …………………………………………………………………………………………. Gas connection ………………………………………………………………………………………………. Operation ……………………………………………………………………………………………... Leak check ………………………………………………………………………………………………… Ignition 9-10 ……………………………………………………………………………. Storage and Maintenance 10-11 ……………………………………………………………………………………...
  • Page 3: Specifications

    SPECIFICATIONS Model NO. L-DN1377SAL-A/D-DN1377SAL-A/ L-DN1499PAL Rated Heat Input 50,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 2.18mm Gas Supply Pressure Max.250 PSI IMPORTANT SAFETY INFORMATION AND PRECAUTION  When the appliance is for connection to a fixed piping system, the installation must conform with local codes ,or in the absences of local codes with the National Fuel Gas Code, ANSI Z223.1/NFPA54;...
  • Page 4 the same as the part specified by manufacturer.  The assembly of LP-gas and leak checking, please refer to the “Gas connection” on page 8 and “Leak Test” on page 9.  Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or prevent clothing ignition.
  • Page 5: Expanded View

    EXPANDED VIEW Made In China 5 / 11...
  • Page 6: Parts List

    PARTS LIST Label Part Number Description DN1499XXX01 Lazy Susan DN1499XXX02 Table Top DN1499XXX03 Main Body DN1499XXX04 Base LPSBLSH41 Cullet (Tempered Glass) 1 (4.1KG) DN1499XXX05 Armor Plate Screen DN1499XXX06 Windshield 1 DN1499XXX07 Windshield 2 LPDHZXY1L07 Ignition Wire LPDHQ2W35D27 Battery Box LPKGXN01 Control Knob LPFB14WB14HXD Control Valve...
  • Page 7: Installation

    INSTALLATION Installation will be much easier with two or more people. Fig 1: Put Table Top (B) on Main Body (C), then use Bolt (AA) to lock them from the bottom up. Fig 2: Put Lazy Susan (A) on Table Top (B). If you want to replace any of the parts listed, please contact Customer Service Center: 1-866-578-6569.
  • Page 8: Location

    LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. NOTE: Do not place this appliance on grass or dirt area.
  • Page 9: Operation

    OPERATION LEAK TEST !!!WARNING!!!  Do not use an open flame to check for leaks.  Do not smoke during testing.  Do not test indoors.  A leak check must be performed whenever the gas cylinder is replaced. Make sure the control knob is on the “OFF” position. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over tightening it.
  • Page 10: Storage And Maintenance

    STORAGE AND MAINTENANCE To obtain the best performance from your appliance, you must perform the following storage and maintenance activities on a regular basis:  Allow at least 35 minutes for the appliance to cool down after use, before disconnecting and removing the gas cylinder.
  • Page 11: Limited Warranty

    LIMITIED WARRANTY Subject to the conditions set out below, this product is warranted to the original purchaser to be free from defects in workmanship and materials for twelve (12) months from the date of purchase.  Satisfactory proof of the purchase date must be furnished at the time of notification of the defect for any claim under the warranty to be enforceable.
