WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER
This appliance complies with "ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.

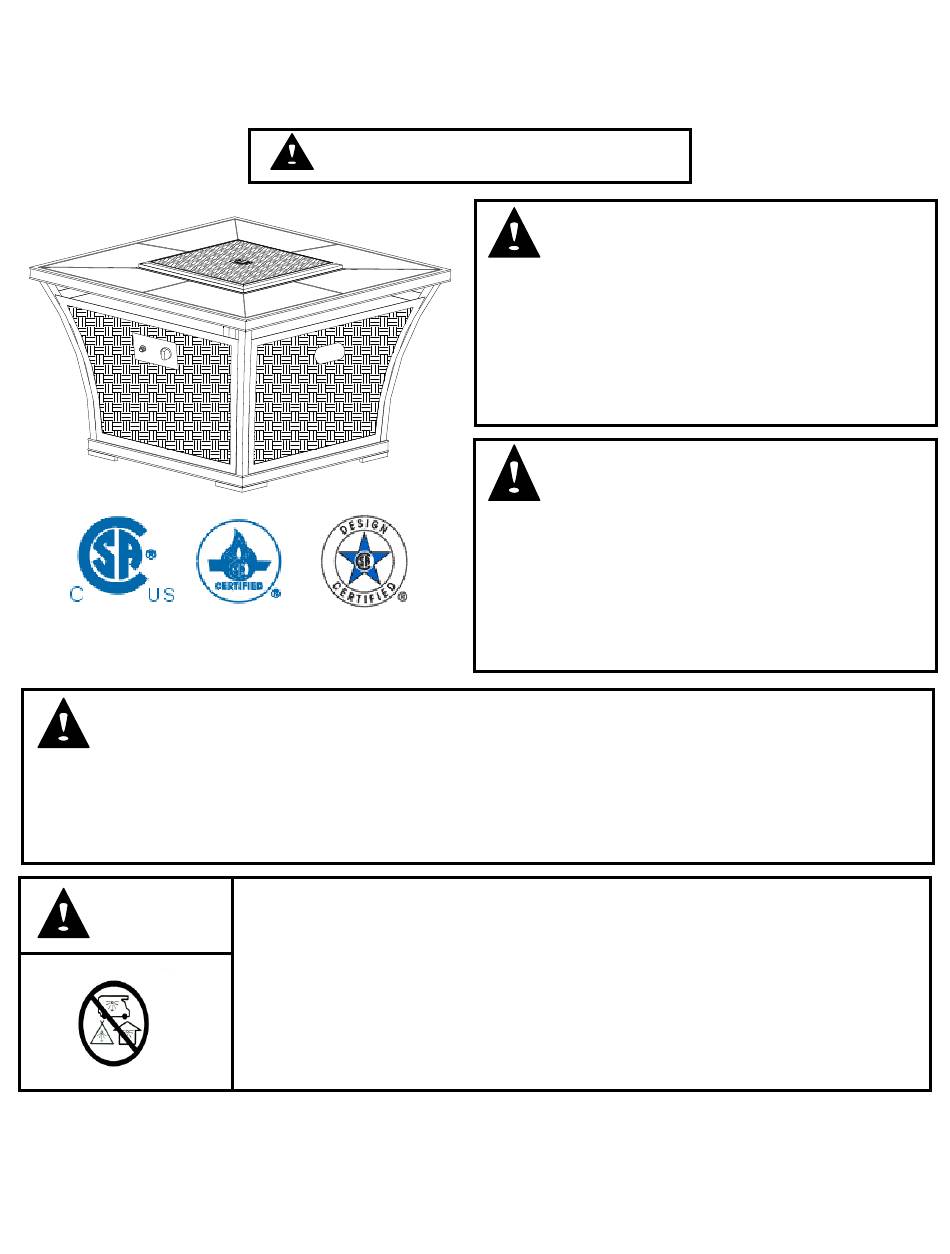

OWNER'S MANUAL
Item# L-DN1308SCO
WARNING: For Outdoor Use Only.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
1 of 11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy Fant L-DN1308SCO
Summary of Contents for Sunjoy Fant L-DN1308SCO
- Page 1 OWNER’S MANUAL Item# L-DN1308SCO WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 2: Table Of Contents
TABLE OF CONTENTS General information …………….…….………………….………………..………….…… 2 Specification……….……………………………………….……………….……….……… 3 Important safety information and precaution……………….….….….….…….…… 3-4 Expanded view……………………………………………………….……….……..……… 5 Parts list……………………….………………………….…………………………….……6 Installation………………………….………………………..………………….…….………7 Location……………………………………………………………………….…….…….….. 8 Set up……………………………………………………………….…………….……...…… 8 Gas connection ………………………………….……………….……………….……… 8-9 Operation……………………………………………………………….……………...…….. 9 Leak check………………………………………………………….…………………...…… 9 Ignite lighting………………………………………………………….…………………. 9-10 Storage and Maintenance………………………………………….……....… 10-11 Trouble shooting ………………………………………………...….………………..…... -
Page 3: Specification
SPECIFICATION Product name Fant Fire Pit Model NO.: L-DN1308SCO Rated Heat Input 38,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.75mm Gas Supply Pressure Max.250 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION ... - Page 4 The pressure regulator and hose assembly provided with the appliance must be used. replacement part must be the same as the part specified by manufacturer. The assembly of LP-gas and leak checking, please refer to the “Gas connection” on page 8 and “leak Test”...
-
Page 5: Expanded View
EXPANDED VIEW 5 of 11... -
Page 6: Parts List
Parts List Description Cover Table Base Door Cullet (Tempered Glass) 1 (2.5KG) Armor Plate Screen Windshield 2 Windshield 1 Ignition Wire Battery Box Control Knob Control Valve Pressure Regulator Nozzle Subassembly Thermocouple Nozzle Support Bar Burner Fire Bowl If you want to replace the parts listed, please contact Customer Service Center: 1-866-578-6569. 6 of 11... -
Page 7: Location
LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 8: Operation
Fig 6 OPERATION LEAK TEST !!!WARNING!!! Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak check must be performed whenever the gas cylinder is replaced. 1- Make sure the control knob is on the “OFF”... -
Page 9: Storage And Maintenance
NOTE: While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. The flame can be identified by the following figure. Y ELLO W T IP H IG H B LU E LO W Correct Flame BLUE Incorrect Flame... -
Page 10: Trouble Shooting
Permanent installation and repair should be done by a qualified service person. The appliance should be inspected annually by a qualified service person. TROUBLE SHOOTING PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURES —See “If you smell gas:” on front —Gas leak Gas odor cover of manual —Check all gas connections... -
Page 11: Cleaning And Maintenance
damage arising from the installation or operation of the product and/or the failure of any part for any reason. There are no other express or implied warranties, except for those stipulated herein. This warranty gives specific rights and the original purchaser may have additional rights and remedies in law. ...
