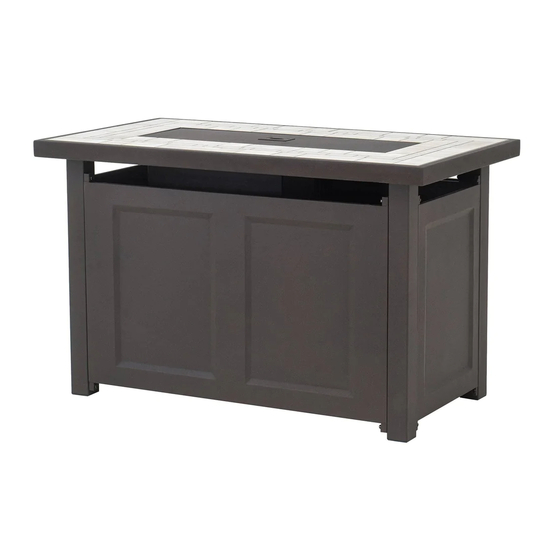

Del Rio Tile Top Fire Pit Table
Propane tank not included
AA battery needed, not included
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER
This appliance complies with "ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.

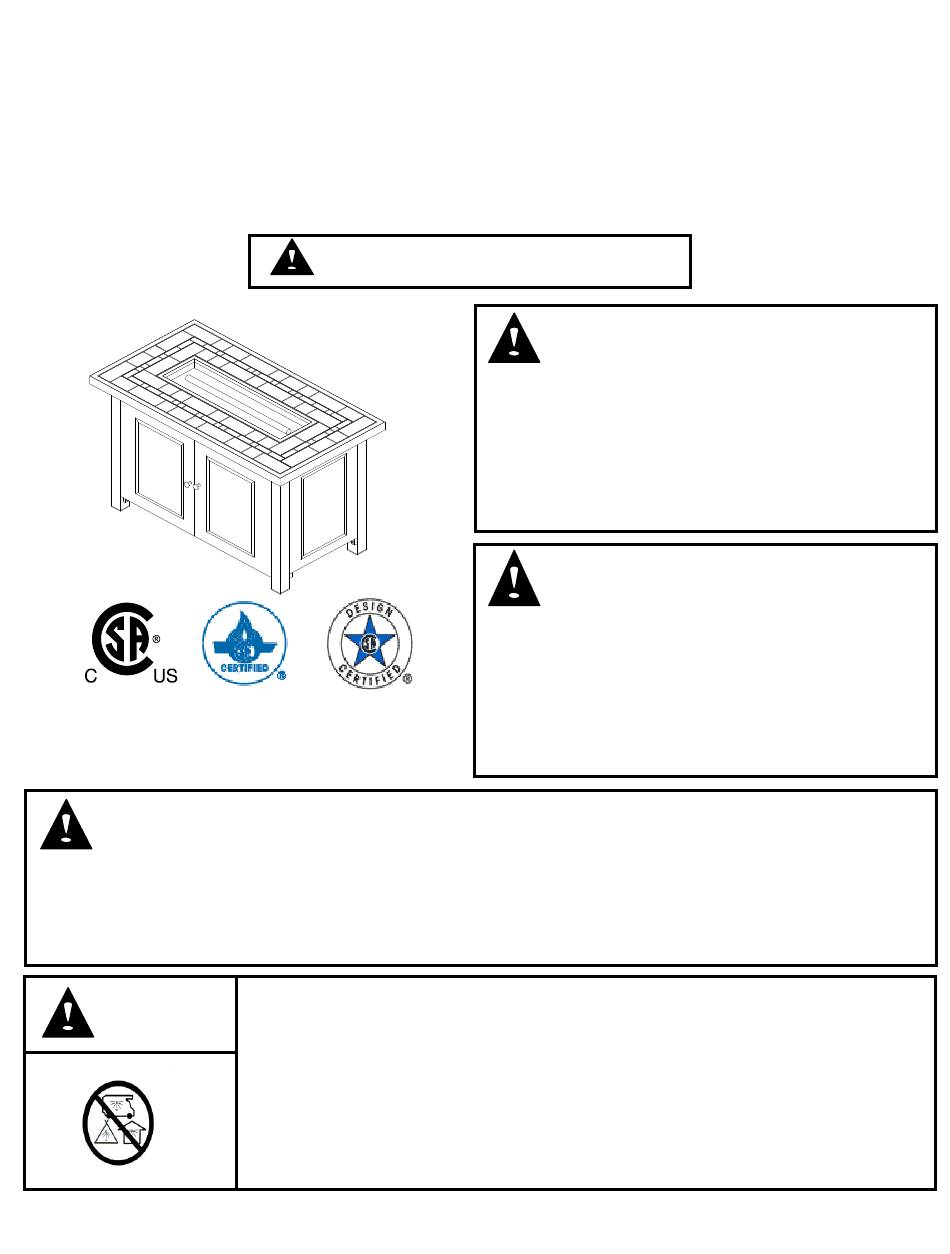

Assembly Instruction
Item# L-FT1097PST-B
SKU# 810325096
WARNING: For Outdoor Use Only.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
1 of 16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy L-FT1097PST-B
Summary of Contents for Sunjoy L-FT1097PST-B
- Page 1 Del Rio Tile Top Fire Pit Table Assembly Instruction Item# L-FT1097PST-B SKU# 810325096 WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 2: Table Of Contents
We would like to hear from you with any comments or suggestions. In the continental U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 from 8:00 am EST to 8:00 pm PST Monday to Friday. You can also send us an email to biglots@sunjoygroup.com... -
Page 3: Specification
SPECIFICATION Product name Del Rio Tile Top Fire Pit Table Model NO. L-FT1097PST-B Rated Heat Output 30,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.74mm Gas Supply Pressure Max.250 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION ... - Page 4 gas leak. Have the appliance inspected annually by a qualified service person. The pressure regulator and hose assembly provided with the appliance must be used. The replacement part must be the same as the part specified by manufacturer. The assembly of LP-gas and leak checking please refer to the “Gas connection” on page 12 and “leak Test”...
-
Page 5: Expanded View
EXPANDED VIEW 5 of 16... -
Page 6: Parts List
Parts List Description Description Handle P20707A01142 P90007A01142 Table Top Ignition Wire P12312A01142 P99002B07002 Fire Bowl Battery Box P20211A01098 P99001C07001 Leg 1 Pressure Regulator P31413A01142 P99001D07001 Leg 2 Thermocouple P31414A01142 P99002E04000 Leg 3 Control Valve P31415A01142 P99001F04000 Leg 4 Control Knob P31416A01142 P99001G07001 Rear Panel... -
Page 7: Installation
Hardware Bag Description Image M6*15 Bolt H01015C11 M6*30 Bolt H01030C11 M6*15 Screw H09015C11 M6 Flat Washer H12001C11 M5x10 Bolt H01010B11 Wrench H00001L12 If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569. INSTALLATION Installation will be much easier by two or more people. Step1：Attach handle (I) to door (G) by bolt (EE) and tighten as Fig 1 showed. - Page 8 Step 2： Attach leg 2 (D2) and leg 4 (D4) to door (G) by bolt (BB) and flat washer (DD) and tighten as Fig 2 showed. (Note: The two holes on the Door (G) should face downward.) Step 3: Attach leg 1 (D1) and leg 3 (D3) to rear panel (E) by bolt (BB) and flat washer (DD) and tighten.
- Page 9 Step 4: Attach the assembled door (G) and rear panel (E) to shelf (F) by bolt (BB) and flat washer (DD) at the leg 3 (D3) and leg 4 (D4) as Fig 4-1 showed. Attach shelf (F) to door (G) and rear panel (E) by bolt (AA) and flat washer (DD) at the holes on the lower end of door and rear panel as Fig 4-2 showed.
- Page 10 Step 6: Put the table top (B) and Bowl (C) upside down. Attach the fire bowl (C) to table top (B) by bolt (CC) and flat washer (DD). (Note: Before this step, please take out the foam in the carton and put it underneath the table top to avoid surface abrasion.) Step 7: Attach the assembled frame to table top (B) by bolt (AA) and flat washer (DD) at leg 1/2/3/4 (D1/D2/D3/D4).
- Page 11 Step 8: The Lava Rock (H1) should be put in the bottom of the Fire Bowl (C) and come up just as high as the fire ring. Step 9: Put the lid (A) onto the table top (B). Then the assembly is finished. 11 of 16...
-
Page 12: Location
LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 13: Operation
Fig.7 Fig 7 Fig 8 OPERATION: LEAK TEST !!!WARNING!!! A leak check must be performed whenever the gas cylinder is replaced. 1. Make sure the control knob is in the “OFF” position. 2. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over tightening. -
Page 14: Storage And Maintenance
While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. NOTE: The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7. -
Page 15: Trouble Shooting
This warranty does not cover commercial use. Please do not return this product to the store. For technical assistance on assembly or replacement parts call Sunjoy Group at 1(866) 578-6569 from 8:00 AM EST to 8:00 PM PST or email biglots@sunjoygroup.com... - Page 16 It is rare that any crackling will happen on the first use, this is simply precaution. For technical assistance or questions, call Sunjoy Group at 1(866) 578-6569 from 8:00AM EST to 8:00PM PST Monday to Friday or email to biglots@sunjoygroup.com or visit www.sunjoyonline.com for more information or assistance.
