WARNING: For Outdoor Use Only.
Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Propane cylinder required (not included)
WARNING
Do not store or use gasoline, or other flammable vapors and liquids, in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
DANGER
This appliance complies with "ANSI Z21.97-2017/CSA 2.41-2017, Outdoor Decorative Gas Appliances.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
For Outdoor Use only. Not for Commercial Use.

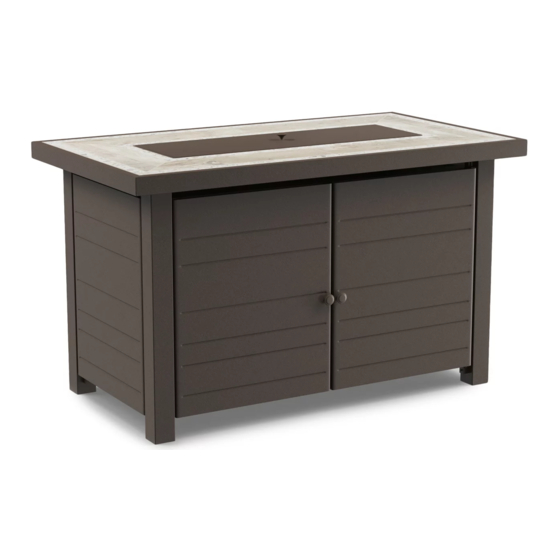

Lakewood Fire Pit Table
Assembly Instruction
Item# L-FT1374PST
SKU# 810411250
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area immediately
4. After leaving the area, call your gas supplier or fire
followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
DANGER
FIRE OR EXPLOSION HAZARD
department.
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury, or death.
WARNING: If the information in this manual is not
1 of 20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy Lakewood L-FT1374PST
Summary of Contents for Sunjoy Lakewood L-FT1374PST
- Page 1 Lakewood Fire Pit Table Assembly Instruction Item# L-FT1374PST SKU# 810411250 WARNING: For Outdoor Use Only. INSTALLER: Leave this manual with the Installation and service must be performed by a appliance. qualified installer, service agency, or the gas CONSUMER: Retain this manual for supplier.
-
Page 2: Table Of Contents
Keep this manual to consumer for installer and consumer future reference/use. We would like to hear from you with any comments or suggestions. In the continental U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 at any time. You can also send us an email to biglots@sunjoygroup.com... -
Page 3: Specification
SPECIFICATION Lakewood Fire Pit Table Product name Model NO. L-FT1374PST Rated Heat Output 30,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.74mm Gas Supply Pressure Max.250 PSI Min.25 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION ... - Page 4 gas leak. Have the appliance inspected annually by a qualified service person. The pressure regulator and hose assembly provided with the appliance must be used. The replacement part must be the same as the part specified by manufacturer. The assembly of LP-gas and leak checking please refer to the “Gas connection” on page “leak Test”...
-
Page 5: Expanded View
EXPANDED VIEW 5 of 20... -
Page 6: Parts List
Parts List Label Part Number Description Part Image P90016A01182 Handle P20718A01182 P22005A01178 Fire bowl P23004A01182 Table top P22322A01182 Leg1 P22323A01182 Leg2 P22324A01182 Leg3 P22325A01182 Leg4 P21231A01182 Back panel P21148A01182 Side panel P20925A01182 Panel P20810A01182 Cylinder rack P99903D01002 Lava rock P23401A01002 Chain 6 of 20... - Page 7 Hardware Pack Label Part Number Description Part Image Bolt M6*15 H02015C11 Bolt M6*30 H02025C11 Bolt M4*15 H09015A11 Bolt M6*15 H09015C11 Flat washer H19001C11 Wrench M6 H00001C12 If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569. 7 of 20...
-
Page 8: Installation
INSTALLATION 8 of 20... - Page 9 9 of 20...
- Page 10 10 of 20...
- Page 11 11 of 20...
- Page 12 12 of 20...
- Page 13 13 of 20...
- Page 14 14 of 20...
- Page 15 15 of 20...
-
Page 16: Location
LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface. -
Page 17: Operation
OPERATION: LEAK TEST !!!WARNING!!! Do not use an open flame to check for leaks. Do not smoke during testing. Do not test indoors. A leak check must be performed whenever the gas cylinder is replaced. ... -
Page 18: Storage And Maintenance
While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. NOTE: The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7. -
Page 19: Trouble Shooting
Clogged or dirty burner Clean burner ports ports If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866) 578-6569). LIMITED WARRANTY: Subject to the conditions set out below, this product is warranted to the original purchaser to be free from... - Page 20 It is strongly recommended that you cover the fire pit table when not in use with the metal cover plate. If left uncovered, moisture may be present and can cause the lava rock to pop again but will subside after it burns for 30 minutes. (Use the protective wire mesh screen over your lava rock and burner) It is rare that any crackling will happen on the first use, this is simply a precaution. For technical assistance or questions, call Sunjoy Group at 1(866) 578‐6569 any time or email to biglots@sunjoygroup.com or visit www.sunjoyonline.com for more information or assistance. 20 of 20...
