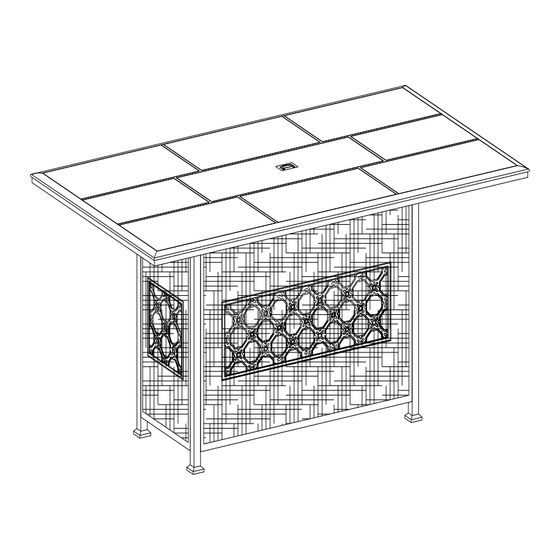

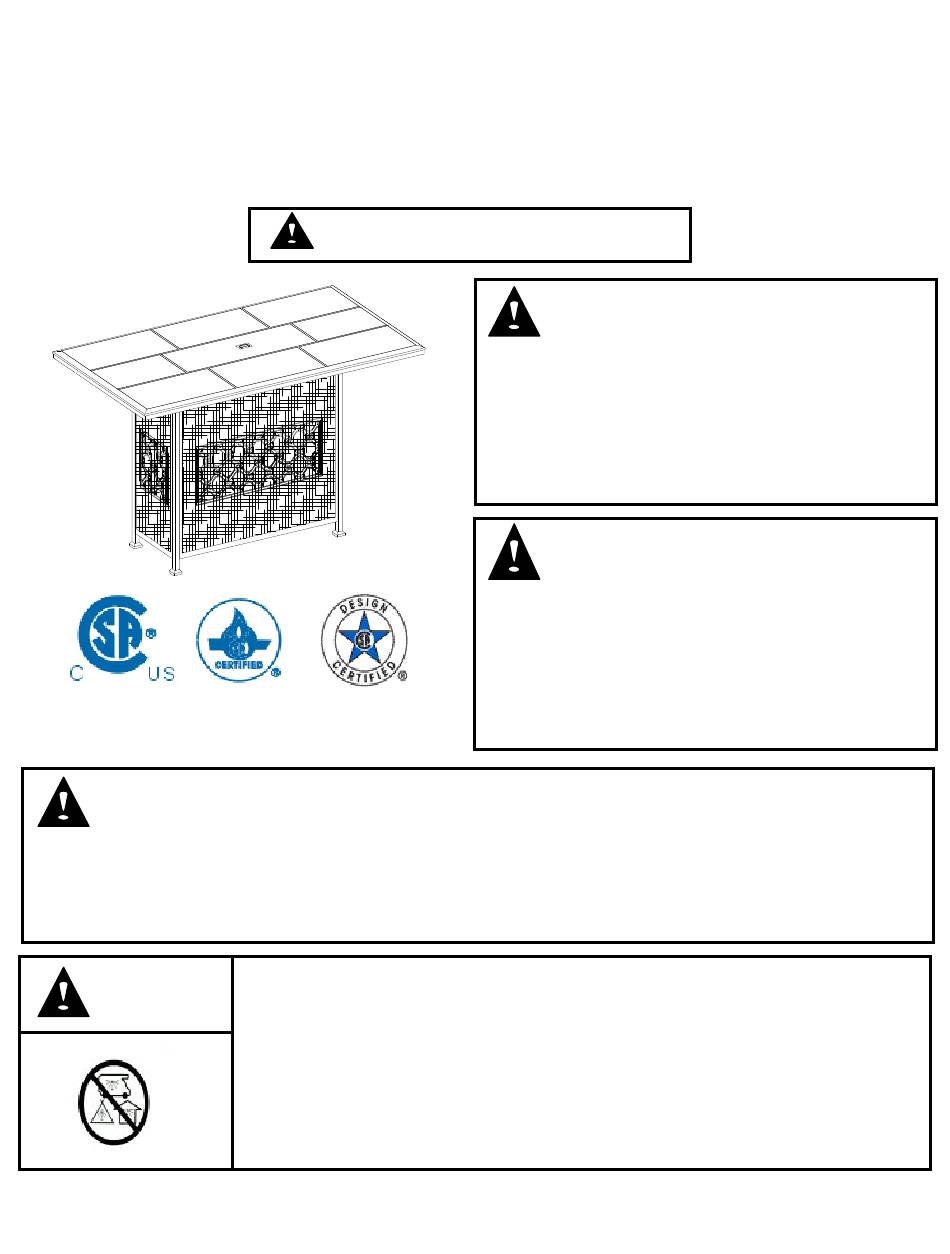

Stoneridge Fire Pit High Dining Table
Propane tank not included
AA battery needed, not included
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected for use should not be stored in the vicinity of this or any other
appliance.
DANGER
This appliance complies with "ANSI Z21.97-2014/CSA 2.41-2014, Outdoor Decorative Gas Appliances.
Assembly Instruction
L-DN1773SST-D-T
Item#
WARNING: For Outdoor Use Only.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
1 of 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stoneridge L-DN1773SST-D-T and is the answer not in the manual?

Questions and answers

Related Manuals for Sunjoy Stoneridge L-DN1773SST-D-T

Summary of Contents for Sunjoy Stoneridge L-DN1773SST-D-T

  • Page 1 Stoneridge Fire Pit High Dining Table Assembly Instruction L-DN1773SST-D-T Item# WARNING: For Outdoor Use Only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.

  • Page 2: Table Of Contents

    We would like to hear from you with any comments or suggestions. In the continental U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 from 8:00 am EST to 8:00 pm PST Monday to Friday. You can also send us an email to Biglots@sunjoygroup.com...

  • Page 3: Specification

    SPECIFICATION Stoneridge Fire Pit High Dining Table Product name Model NO. L-DN1773SST-D-T Rated Heat Output 38,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.9mm Gas Supply Pressure Max.250 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION ...
  • Page 4 gas leak. Have the appliance inspected annually by a qualified service person.  The pressure regulator and hose assembly provided with the appliance must be used. replacement part must be the same as the part specified by manufacturer.  The assembly of LP-gas and leak checking please refer to the “Gas connection” on page 10 and “Leak Test”...

  • Page 5: Expanded View

    EXPANDED VIEW 5 of 13...

  • Page 6: Parts List

    Parts List Description Description Armor Plate Screen Table top Ignition Wire Fire Bowl Battery Box Table panel 1 Pressure Regulator Table panel 2 Thermocouple Side panel Control Valve Door Control Knob Door handle Corrugated pipe Gas-jar frame Burner Lava rock 1 (4KG) Windshield Hardware Pack...

  • Page 7: Installation

    INSTALLATION Installation will be much easier by two or more people. Step 1: Insert the round column of the table panel 1(D1) into the hole of the side panel (E)， then attach table panel 1 (D1) to side panel (E) by bolt (AA) and flat washer (BB) as showed in Fig 1.
  • Page 8 Step 3: Put the Table Top (B) and Bowl (C) upside down, connect them with bolt (EE) and flat washer (BB). Step 4: Attach the door (F) and side panel (E) to the table top (B) by bolt (AA) and flat washer (BB). (Note: When installing the fire bowl, please make sure the bowl (C) with control panel should face the door (F)).
  • Page 9 Step 6: Put the Lid (A) on the Table Top (B) Step 7: The lava rock (H) should be put in the bottom of the Fire Bowl (C) and come up just as high as the fire ring. 9 of 13...

  • Page 10: Location

    LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface.

  • Page 11: Operation

    Fig.7 Fig 8 OPERATION: LEAK TEST !!!WARNING!!!    A leak check must be performed whenever the gas cylinder is replaced.  1. Make sure the control knob is in the “OFF” position. 2. Make sure the gas cylinder is correctly and securely connected to the pressure regulator, without over tightening.

  • Page 12: Storage And Maintenance

    While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. NOTE: The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7.

  • Page 13: Trouble Shooting

    Clogged or dirty burner Clean burner ports ports If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866) 578-6569. LIMITED WARRANTY: Subject to the conditions set out below, this product is warranted to the original purchaser to be free from...
