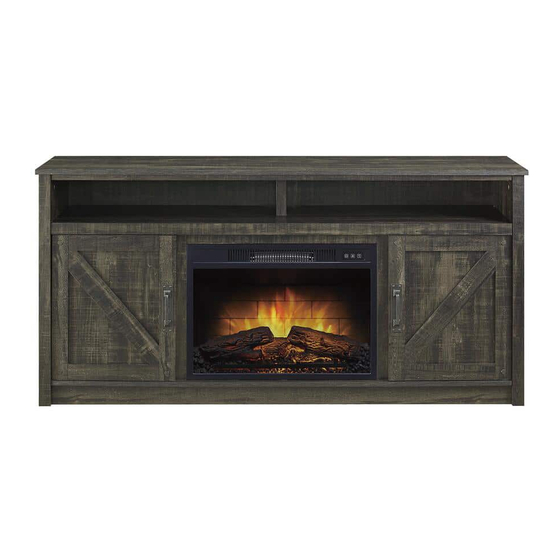

Farmstead 60" Fireplace Console
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Model # WSF60FM23R-AO
# WSF60FM23R-PD
ADULT ASSEMBLY REQUIRED
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our website www.whalenfurniture.com
Or e-mail your request to:
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2020-03-05
1-866-942-5362
parts@whalenfurniture.com
Rev. 0001-A
LOT NUMBER:
DATE PURCHASED: /
/
Advertisement
Related Manuals for Whalen Farmstead WSF60FM23R-AO
Summary of Contents for Whalen Farmstead WSF60FM23R-AO
- Page 1 LOT NUMBER: DATE PURCHASED: / Farmstead 60" Fireplace Console Model # WSF60FM23R-AO # WSF60FM23R-PD ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.
-
Page 2: Special Note
M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Farmstead 60" Fireplace Console MODEL # WSF60FM23R-AO / WSF60FM23R-PD FITS UP TO MOST 177.8 cm / 70”... - Page 3 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non- abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE WIPED OFF WITH A DAMP CLOTH.
-
Page 4: Parts And Hardware List
Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (Qty. 1) B- Left Side Panel (Qty. 1) C- Right Side Panel (Qty. 1) D- Center Shelf (Qty. - Page 5 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. S- Right Door (Qty. 1) Fireplace Insert (Qty. 1) Remote Control with Battery (Qty. 1) (1) Cam Lock (2) Cam Bolt (3) Large Wood Dowel (Qty.
- Page 6 Assembly Instructions 1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a carpeted floor or the empty carton to avoid any scratch. 2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), the Bottom Panel (E) and the Center Shelf Molding (J) using a Phillips screwdriver.
- Page 7 Assembly Instructions 4. Insert three Wood Dowels (4) into the large holes on the front edge of Top Panel (A). Tap in with a rubber mallet, if necessary. Make sure that you use a small amount of glue with both ends of all dowels. 5.
- Page 8 Assembly Instructions 7. Attach the Middle Crossbar (K) to the Center Shelf (D) with two Large Wood Dowels (3) and two Cam Locks (1) as shown. 8. Attach the Left Middle Stile (L) to the Left Lower Partition Panel (G) with two Large Wood Dowels (3) and two Cam Locks (1).
- Page 9 Assembly Instructions 10. Attach two Bottom Stretchers (N) to the Bottom Panel (E) with six Large Wood Dowels (3) and eight Cam Locks (1). 11. Attach the Lower Partition Panels (G and H) to the Center Shelf (D) with four Large Wood Dowels (3) and four Cam Locks (1).
- Page 10 Assembly Instructions 12. Attach the Bottom Panel assembly to the Lower Partition Panels (G and H) with four Large Wood Dowels (3) and four 50 mm Screws (6). 13. Align and attach the Left Side Panel (B) to the previous assembly with six Large Wood Dowels (3) and six Cam Locks (1).
- Page 11 Assembly Instructions 15. Ask for assistance to stand the assembled unit upright. 16. Securely screw two Cam Bolts (2) into the designated small holes on the Center Shelf (D) using a Phillips screwdriver. 17. Attach the Upper Partition Panel (F) to the Center Shelf (D) with one Large Wood Dowel (3) and two Cam Locks (1).
- Page 12 Assembly Instructions 18. Attach the Top Panel (A) to the Side Panels (B and C) and Upper Partition Panel (F) with five Large Wood Dowels (3) and six Cam Locks (1). 19. Flip the previous assembly around at its front edges. 20.
- Page 13 Assembly Instructions 21. Now, go back and securely tighten all the Cam Locks and the Screws. Make sure that all the parts are tight and there are no gaps between the parts. This will help keep the unit square. 22. Pick up the Upper Back Panel (P) and align the pre-drilled holes against the upper long edge with the pilot holes on the back of the Top Panel (A).
- Page 14 Assembly Instructions 25. Stand the assembled unit upright. 26. Pick up the Left Door (R) and attach the extended Hinge Arms to the Hinge Bases installed on the Left Side Panel (B). Loosen the bolt on the back of the Hinge Base for an easy fit. Align and insert the “U” slot on Hinge Arm under the bolt head on the back of Hinge Base.
- Page 15 Assembly Instructions 30. Stick the Rubber Bumpers (13) at the outer corners of the Doors (R and S) where they met the Middle Stiles (L and M). 31. Plug the Cam Lock Caps (16) onto the visible Cams Locks included on the Side Panels (B and C) to conceal the Cams.
- Page 16 Assembly Instructions NOTE: To prevent your TV from tipping, you must follow these instructions if you place a TV on top of your console. Otherwise, skip to “Step 37”. 36. Remove the paper backing from the Acrylic Stopper (14), then properly align the Acrylic Stopper into the cut-out on the acrylic stopper template on the Top Panel (A).
-
Page 17: Care And Maintenance
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
