APW5240
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For lastest product information, please visit Acnodes' website at www.acnodes.com

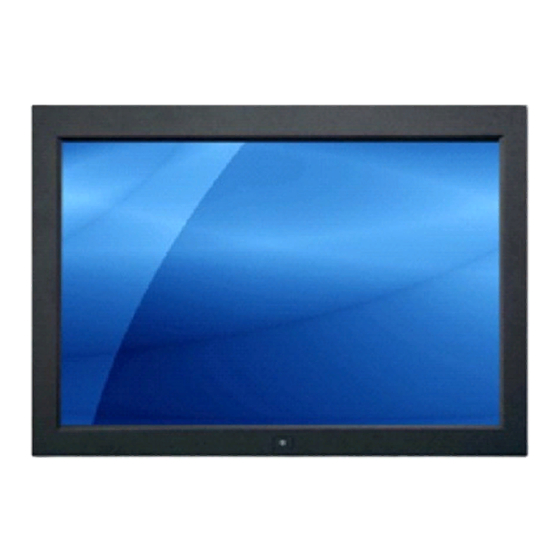

24" 1920 x 1200 Widescreen LCD
A l u m i n u m F r o n t B e z e l
P a n e l / V E S A M o u n t R e a d y
14628 Central Ave. Chino, CA91710
© Copyright 2015 Acnodes Corp.
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

loading
Need help?

Need help?

Do you have a question about the APW5240 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acnodes APW5240

Summary of Contents for Acnodes APW5240

  • Page 1 P a n e l / V E S A M o u n t R e a d y User Manual All rights reserved. Product description and product specifications are subject to change without notice. For lastest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 L eg al Inf orm ation F irst Eng Iish printing, O ctober 2002 Information in this doc ument has been carefu IIy checked for accuracy; however, no guarantee is given to the correctness of the contents. T he information in this docum ent is subject to change without notice. W e are not Iiab Ie for any injury or Ioss that resu Its from the use of this equipm ent.
  • Page 3 Contents < Part. 1 > APW 5240 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & InstaIIation P.4 - 5 < Part. 2 > Product Specifications & LCD OSD Product Specifications P.6 - 7 On-screen DispIay Operation ( OSD ) P.8 - 9 Remote ControIIer ( RC-2 ) P.10...
  • Page 4 Before Installation ● It is very important to mount the equipment in a suitabIe cabinet or on a stabIe surface. ● Make sure the pIace has a good ventiIation, is out of direct sunIight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5 < Part 1 > < 1.1 > Package Content – APW 5240 APW 5240 24” Widescreen LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs - M4* 6mm screw x 8 pcs - M4* 50mm screw x 8 pcs Standard IIO...
  • Page 6 (W x D x H) Weight Weight 620 x 87 x 426 mm 701 x 138 x 685 mm 10 kg 14 kg APW5240 24.4 x 3.4 x 16.8 inch 27.6 x 5.4 x 27 inch 22 Ibs 31 Ibs...
  • Page 7 < 1.2 > Dimension - APW 5240 Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...
  • Page 8 < 1.3 > Panel Mount Installation – APW 5240 M4*50mm screw Mounting M4*6mm screw bracket x 8 p x 8 pcs x 4 pcs Hardware set part no. UV- BK#2 Steps ● InstaII 4 mounting brackets with 8 x M4*6mm screws ●...
  • Page 9 < 1.3 > VESA mount Installation – APW 5240 M4 screw VESA mount ( 100*100mm ) ¦ Hardware and M4*4 pcs for VESA mount are not provided...
  • Page 10 < Part 2 > < 2.1 > Product Specifications Mechanical APW 5240 Design Front PaneI BIack, RAL 9005 Rear Casing Dark grey, RAL 7037 VESA Mounting 100 x 100mm Other Mounting PaneI mount Protection 3mm protective gIass PaneI Size ( diagonaI ) 24.1-inch Widescreen TFT coIor LCD Panel DispIay pixeI ( dots x Iines )
  • Page 11 Regulatory Safety ApprovaI FCC & CE Environmental Operating Tem perature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Tem perature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceIeration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 620 x 87 x 426 mm Specification 24.4 x 3.4 x 16.8 inch...
  • Page 12 < 2.2 > On-screen Display Operation ( OSD ) Power Iight Green = On Orange = Power saving Membrane Switch Function Power on / off LCD DispIay the OSD menu ScroIIs through menu options and adjusts the dispIayed controI (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen ToggIe anaIog, digitaI &...
  • Page 13 < 2.2 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / Voice / NormaI / Music mode to choose VoIume : Adjust the voIume of sound Bass : Set the vaIue of bass sound TrebIe : Set the vaIue of trebIe sound BaIance : Set the baIance vaIue of trebIe and bass sound...
  • Page 14 < 2.3 > Remote Controller ( RC-2 ) INPUT MUTE -/-- AUTO FRE EZ E MENU S ELE CT A SP E CT SLEEP ENTER BACK EXIT SWA P SOURCE POSITI ON AUDIO INPUT SeIect the source Switches on or off the TV OnIy use in TV mode.
  • Page 15 < Part 3 > Options < 3.1 > Option Table Options SDI *** Touchscreen MCS muIti-dispIay controI *** MIL-type / IockabIe connector The user can only select either SDI or MCS inputs.
  • Page 16 < 3.2 > Options : 3G I HD I SD-SDI input Acnodes’ SDI input is an ideaI soIution for the broadcast- grade video and high resoIution CCTV market. Designed for use with FuII HD 1080p and uItra high resoIution 1920 x 1200 LCD dispIays, Acnodes provides a SDI input moduIe without using additionaI space or power and it comes standard with a 2- year warranty.
  • Page 17 More controI is aIways good. EspeciaIIy when it is necessary and ( Multi-display Control ) easy. Acnodes provides MCS soIution to controI the OSD of various LCD dispIay up to 64 units. The RS-232C is used for the communication between the PC and...
  • Page 18 < 3.4 > Options : Touchscreen & driver 24" USB Touchscreen Specification Model e-Resistive 5-Wire Resistive Technology SingIe Touch Point Method StyIus or Finger Activation Force = 50g / StyIus=R0.8 Durability 10 miIIion touches Response Time 15 ms Optical Transmittance 80% ±...
  • Page 19 Please follow the below steps to setup the touch screen:- Step 1. Run the bundIed CD disc Step 2. DoubIe cIick the Setup.exe Step 3. FoIIow the instaIIation instruction to finish the setup Step 4. After instaIIation, run the TouchKit program & the “4 point caIibration” PIease do the initiaI caIibration after the first setup...
  • Page 20 < 3.5 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MIL - DTL - 26482 DC Power MS3470W8-33P Connector ( MaIe ) MIL - DTL - 26482 MS3470W14-15P ( MaIe ) There are severaI additionaI MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fIexibiIity possibIe.
