All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2017 Acnodes C orp.
Advertisement
Table of Contents
Related Manuals for Acnodes APH8185
Summary of Contents for Acnodes APH8185

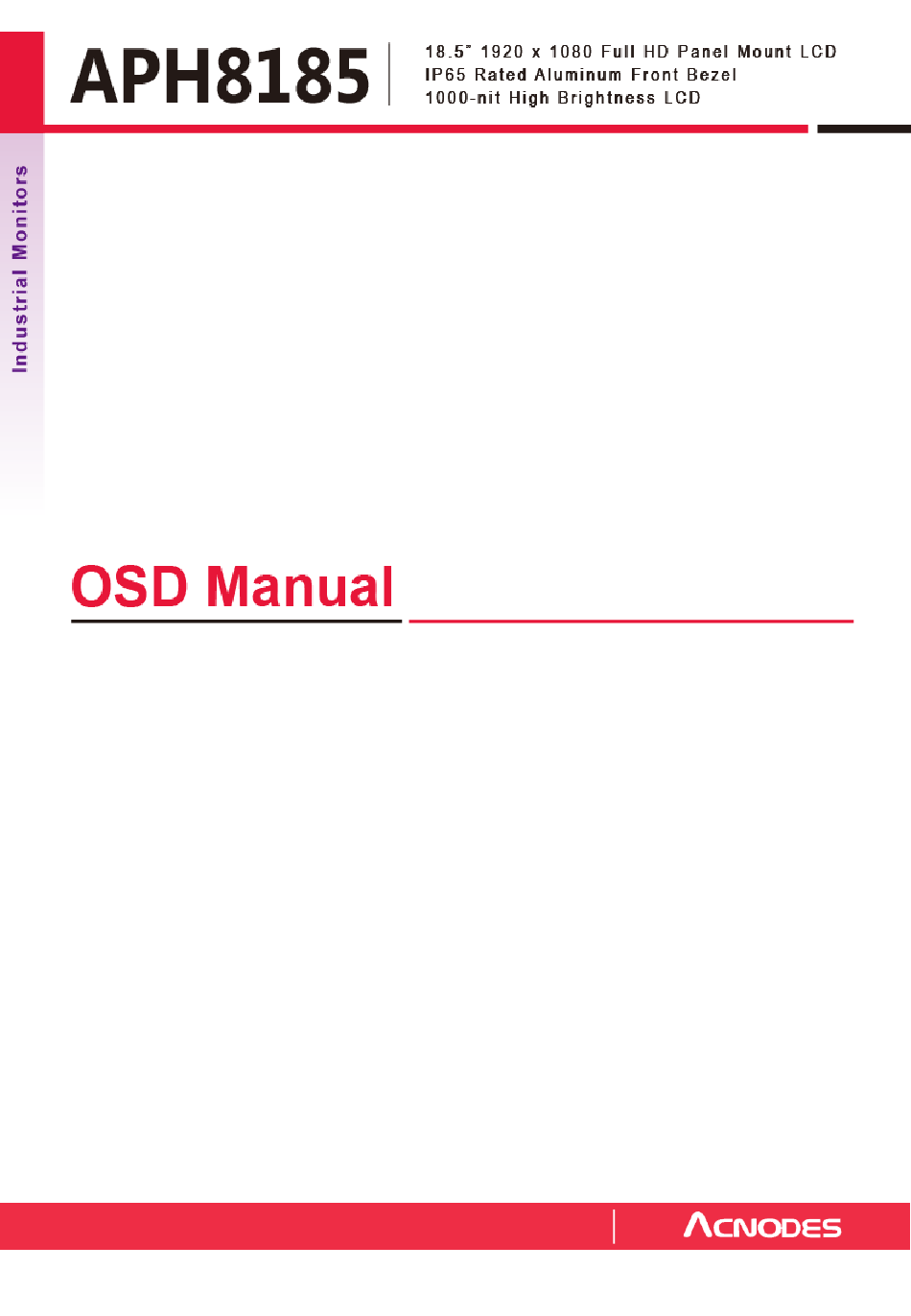

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 The OSD Control Control Key Definition 1.Power LED 2.Sleeping Mode 1. Power LED Indicator: Green Light is with the signal; Red Light is out of signal or extraordinary. 2. Sleeping Mode Indicator: Red light indicator when the monitor going to sleep 3.
- Page 3 OSD Menu Adjustments: Press「+」,「-」 to increase or decrease the light bar for moving to the right icon you want to adjust. Press 「MENU/ENTER」again to confirm in the selected item. Then, the selected bar will become yellow at bottom under the item. Press 「+」or「-」to select the item and press「MENU/ENTER」again, the value will turn red, press「+」or「-」to increase or decrease the value.
- Page 4 Display Image H./V. Position Contrast: Adjust the contrast level of brightness and darkness of the screen. Brightness: Adjust the brightness of the screen. AUTO Auto adjusting the display position and its best phase and clock ADJUSTMENT: settings. H. POSITION： Adjust the size of horizontal image (left and right sides). V.
- Page 5 COLOR Temp 9300K： Asian Area. 7500K： Asian Area. 6500K： Europe and North American Area. SRGB： Europe and North American Area. USER COLOR： User’s setting. RED： Red adjustment. User’s setting Remark 1 GREEN： Green adjustment. User’s setting Remark1 BLUE： Blue adjustment. User’s setting Remark1 Remark 1.: When moving the light bar to the selected item, press ENTER (MENU/ENTER), the bar and value will become yellow (or red), then press「+」or「-」to adjust the value.
- Page 6 Others Reset: Recall settings to the factory default setting Menu Time: OSD Menu showing period during no any instructions given. OSD H. Position：Present the position of the OSD horizontal position OSD V. Position： Present the position of the OSD vertical position Language: English / French / German / Japanese/ 繁體中文...
- Page 7 Source Selection Input Signal Selection: Two Input are supported: Digital and Analog If both digital and analog are connected, use the switch to select either Digital or Analog input Auto Select: Default the OSD should auto detect the signal input D-SUB：...
