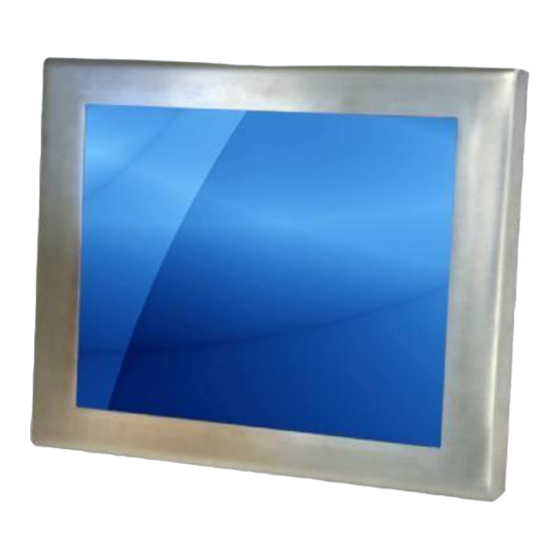

15" / 17" / 19" Panel Mount LCD
S t a i n l e s s S t e e l C h a s s i s
I P 6 5 R a t e d F r o n t B e z e l
Industrial Panel Mount Monitor
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Table of Contents
Related Manuals for Acnodes APS901 Series
Summary of Contents for Acnodes APS901 Series
- Page 1 I P 6 5 R a t e d F r o n t B e z e l Industrial Panel Mount Monitor User Manual All rights reserved. Product description and product specifications are subject to change without notice. For lastest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA91710 Tel: 909.597.7588 Fax: 909.597.1939...
-
Page 2: Warning
Disclaimer This information in this document is subject to change without notice. In no event shall Acnodes Corp. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse... -
Page 3: Table Of Contents
Table of Contents Warning!…………………………………………………………………………….……..….2 Disclaimer………………………………………………………………….…………………2 Chapter 1 Getting Started 1.1 Features………………………………………………………….…..…..…4 Specifications…………………………………………..……………...…..4 1.3 Dimensions…………………………………...………………………….…6 1.4 Brief Description................... 9 1.5 Display Mode………………………………………………………………10 Chapter 2 2.1 Front Panel Controls………….………………………………….…..…….11 2.2 OSD Controls………………………………………………………………..11 2.3 Main Menu…..……………………………………………………………..12 2.4 AD Board OSD Functions…………..…………………………………14 Figures Figure 1.1: Dimensions of APS9015…,……..…………..…...…………..6 Figure 1.2: Dimensions of APS9017..………..………..…..……………..7 Figure 1.3: Dimensions of APS9019.….……..……..……..……………..8... -
Page 4: Features
Chapter 1 1.1 Features ●Stainless Steel Display ●Five edges panel NEMA 4/IP 65 rated ● Resistive touch screen (optional) ●VESA mount ●VGA Input, with optional DVI, Video or S-Video input ●Supports wide-ranging resolutions from 640x480 to up to 1600x1200 with auto phase and auto position 1.2 Specifications Display... - Page 5 Dimensions 398x53x316mm 432x57.4x358 470x60x388.6 (Wx Dx H / mm) (Wx Dx H / mm) (Wx Dx H / mm) VESA Mount VESA Mount Mounting 75x75 100x100...
-
Page 6: Dimensions
1.3 Dimensions Figure 1.1: Dimensions of the APS9015... -
Page 7: Figure 1.2: Dimensions Of Aps9017
Figure 1.2 Dimensions of the APS9017... -
Page 8: Figure 1.3: Dimensions Of Aps9019
Figure 1.3: Dimensions of the APS9019... -
Page 9: Brief Description
1.4 Brief Description The APS901X features an excellent viewing ability for monitoring and control applications. It is available with resistive touch screen that is easy to use and maintain. The front panel of the display monitor is sealed with gasket for NEMA 4/IP 65 rating when it is panel-mounted in a NEMA rated cabinet or enclosure. -
Page 10: Display Mode
1.5 Display Mode Display Mode Hori. Sync (KHz) Vert. Sync. (Hz) VGA 640 x 480 SVGA 800 x 600 XGA 1024 x 768 1152 x 864 SXGA 1280 x 1024... -
Page 11: Front Panel Controls
Chapter 2 2.1 On Screen Display Controls Power switch: To turn ON or OFF the power Shift the icon to the right side or shift it up Shift the icon to the left side or shift it down Menu: To enter OSD menu for related icon and item. Auto Button: One-touch auto adjustment 2.2 OSD Controls To make any adjustment, select the following:... -
Page 12: Main Menu
2.3 Main Menu In the Main menu, there are the following items: z Color z Image Setting z Position z OSD Menu z Language z Misc z Exit For Color, check out the following: z Contrast z Brightness z Color Adjust z Color Temp z Back For Image setting, check out the following:... - Page 13 In the OSD menu, there are: z OSD H. Pos. z OSD V. Pos. z OSD Timer z Back In the Language menu, there are: English z Frances z Germany z Spanish z Traditional Chinese z Simplified Chinese z Japanese In the Misc menu, there are: z Signal Source Select VGA: Analogue VGA Input...
-
Page 14: Ad Board Osd Functions
2.4 AD Board OSD Functions 1.) Getting into Burn-in Mode Before setting into a burn-in mode, first disconnect the AC power cord. Then press (don’t let them go) buttons until the AC power cord is connected and the “RGB” appears on the top left corner of your screen. -
Page 15: Figure 1.6: Vesa Mounting Of The Aps901X
Appendix VESA Mounting The APS901X display monitor can be VESA-mounted as an option. Just carefully mount the arm onto the rear of the unit by fastening the given four screws as shown in Figure A. Figure 1.6: VESA mounting of the APS901X...
