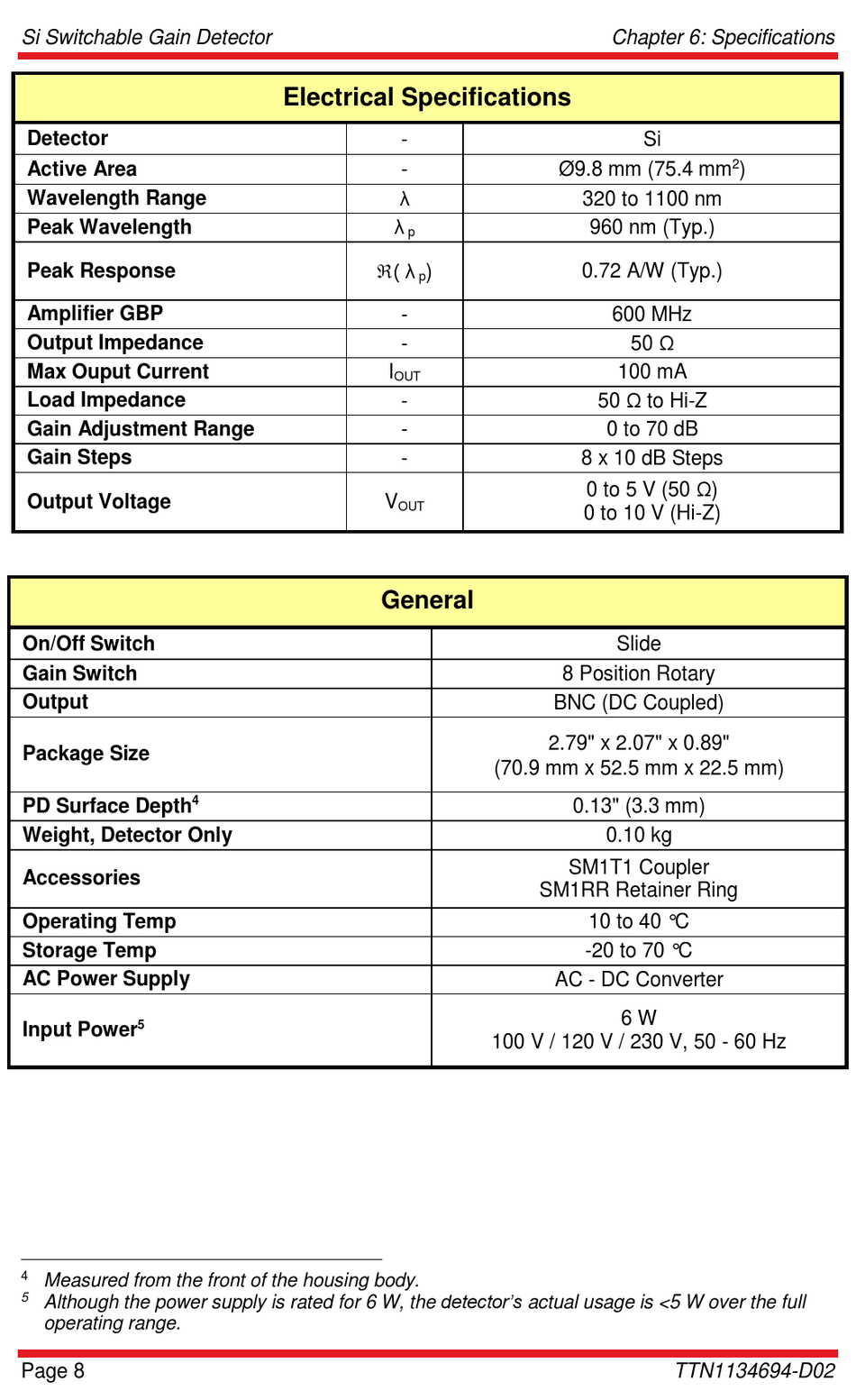

Si Switchable Gain Detector
Detector
Active Area
Wavelength Range
Peak Wavelength
Peak Response
Amplifier GBP
Output Impedance
Max Ouput Current
Load Impedance
Gain Adjustment Range
Gain Steps
Output Voltage
On/Off Switch
Gain Switch
Output
Package Size
PD Surface Depth
Weight, Detector Only
Accessories
Operating Temp
Storage Temp
AC Power Supply
5
Input Power
4
Measured from the front of the housing body.
Although the power supply is rated for 6 W, the detector's actual usage is <5 W over the full
5
operating range.
Page 8
Electrical Specifications
4
-
-
λ
λ
p
( λ
)
p
-
-
I
OUT
-
-
-
V
OUT
General
(70.9 mm x 52.5 mm x 22.5 mm)
100 V / 120 V / 230 V, 50 - 60 Hz
Chapter 6: Specifications
Si
Ø9.8 mm (75.4 mm
320 to 1100 nm
960 nm (Typ.)
0.72 A/W (Typ.)
600 MHz
50 Ω
100 mA
50 Ω to Hi-Z
0 to 70 dB
8 x 10 dB Steps
0 to 5 V (50 Ω)
0 to 10 V (Hi-Z)
Slide
8 Position Rotary
BNC (DC Coupled)
2.79" x 2.07" x 0.89"
0.13" (3.3 mm)
0.10 kg
SM1T1 Coupler
SM1RR Retainer Ring
10 to 40 °C
-20 to 70 °C
AC - DC Converter
6 W
TTN1134694-D02
2
)
