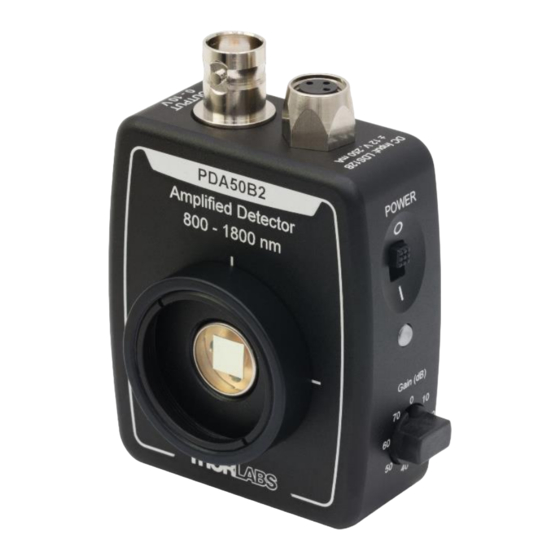

PDA50B2
Ge Switchable Gain
Detector
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDA50B2 and is the answer not in the manual?

Questions and answers

Summary of Contents for THORLABS PDA50B2

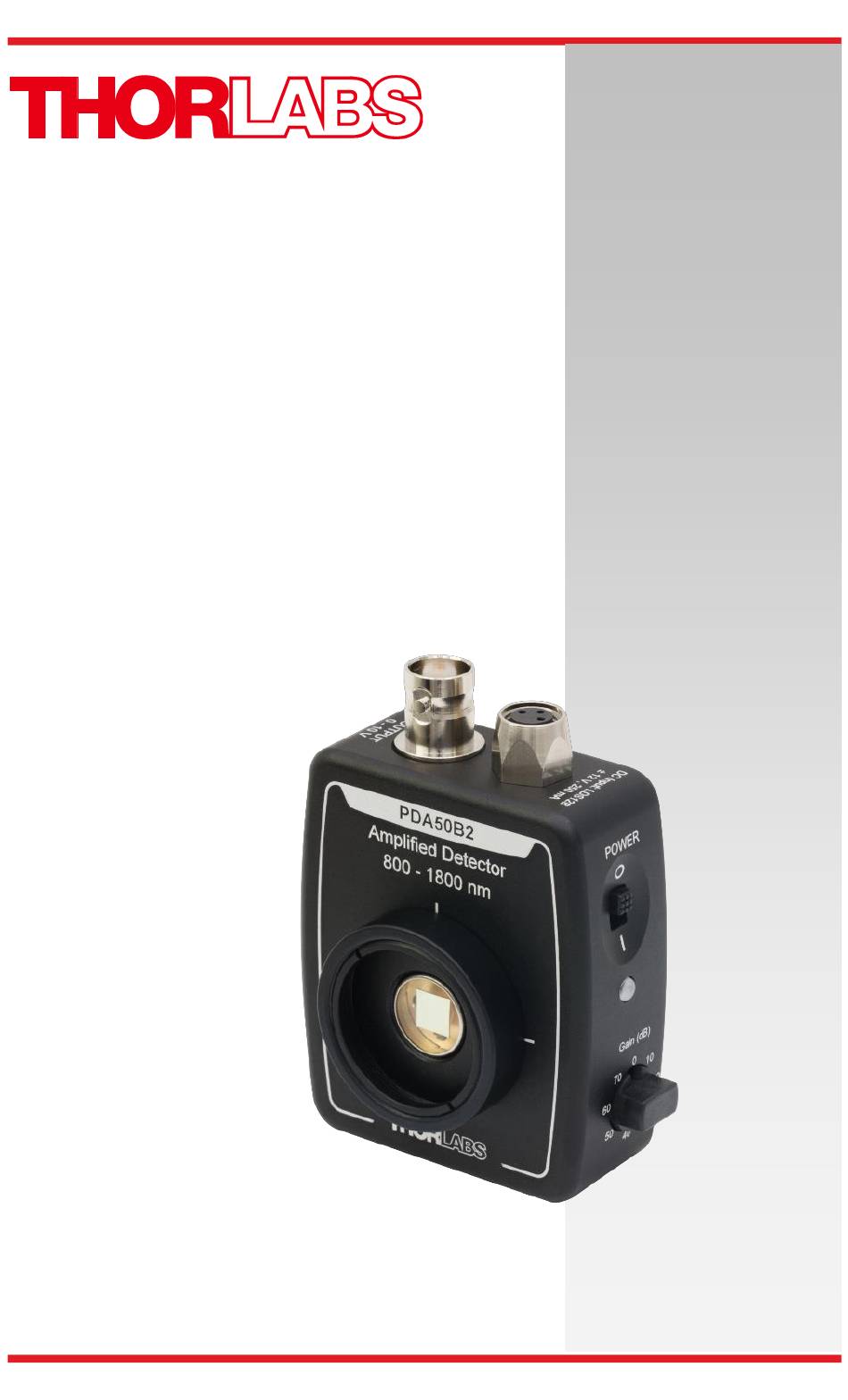

  • Page 1 PDA50B2 Ge Switchable Gain Detector User Guide...
  • Page 2: Table Of Contents

    6.1. Response Curve.............. 9 6.2. Mechanical Drawing ............ 10 Chapter 7 Certificate of Conformance ........... 11 Chapter 8 Regulatory ............... 12 8.1. Waste Treatment is Your Own Responsibility ....12 8.2. Ecological Background ..........12 Chapter 9 Thorlabs Worldwide Contacts........13...
  • Page 3: Chapter 1 Warning Symbol Definitions

    Ge Switchable Gain Detector Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or chassis Terminal...
  • Page 4: Chapter 2 Description

    10 dB steps. A buffered output drives 50 Ω load impedances up to 5 V. The PDA50B2 housing includes a removable threaded coupler (SM1T1) and retainer ring (SM1RR) that is compatible with any number of Thorlabs 1"...
  • Page 5: Chapter 3 Setup

    Attach a 50 Ω coax cable (i.e. RG-58U) to the output of the PDA. When running cable lengths longer than 12" we recommend terminating the opposite end of the coax with a 50 Ω resistor (Thorlabs p/n T4119) for maximum performance. Connect the remaining end to a measurement device such as an oscilloscope or high speed DAQ card.
  • Page 6: Chapter 4 Operation

    Chapter 4 Operation 4.1. Theory of Operation Thorlabs PDA series are ideal for measuring both pulsed and CW light sources. The PDA50B2 includes a Ge photodiode mated to a switchable gain transimpedance amplifier and is packaged in a rugged housing.
  • Page 7: Bandwidth And Response

    > 5 kΩ) and 5 V for 50 Ω loads. Adjust the gain so that the measured signal level out of the PDA50B2 is below 10 V (5 V with a 50 Ω load) to avoid saturation. For low terminating resistors, <5 kΩ or 1% error, an additional factor needs to be considered.
  • Page 8: Chapter 5 Troubleshooting

    Ge Switchable Gain Detector Chapter 5: Troubleshooting Chapter 5 Troubleshooting Problem Suggested Solutions Verify that the power is switched on and all connections are secure. Verify the proper terminating resistor is installed if using a Voltage measurement device. There is no signal response. Verify that the optical signal wavelength is within the specified wavelength range.
  • Page 9: Chapter 6 Specifications

    ±20 mV (Max) ±20 mV (Max) The PDA50B2 has a 50 Ω series terminator resistor (i.e. in series with amplifier output). This forms a voltage divider with any load impedance (e.g. 50 Ω load divides signal in half). Tested at 1550 nm wavelength.
  • Page 10 Ge Switchable Gain Detector Chapter 6: Specifications Electrical Specifications Detector Active Area Ø5.0 mm (19.6 mm Wavelength Range λ 800 to 1800 nm Peak Wavelength λ 1550 nm (Typ.) Peak Response ( λ 0.85 A/W (Typ.) Amplifier GBP 25 MHz Output Impedance 50 Ω...
  • Page 11: Response Curve

    Ge Switchable Gain Detector Chapter 6: Specifications 6.1. Response Curve PDA50B2 Responsivity 1000 1200 1400 1600 1800 Wavelength (nm) Rev D, May 29, 2019 Page 9...
  • Page 12: Mechanical Drawing

    Ge Switchable Gain Detector Chapter 6: Specifications 6.2. Mechanical Drawing Page 10 TTN135074-D02...
  • Page 13: Chapter 7 Certificate Of Conformance

    Ge Switchable Gain Detector Chapter 7: Certificate of Conformance Chapter 7 Certificate of Conformance Rev D, May 29, 2019 Page 11...
  • Page 14: Chapter 8 Regulatory

    Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
  • Page 15: Chapter 9 Thorlabs Worldwide Contacts

    Ge Switchable Gain Detector Chapter 9: Thorlabs Worldwide Contacts Chapter 9 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd.
  • Page 16 www.thorlabs.com...
