EnOcean RCM 110 User Manual

Rf receiver modules
Hide thumbs Also See for RCM 110:
Table of Contents

Advertisement

Quick Links

Download this manual
RF Receiver Modules
RCM 110 and RCM 120
User Manual V1.93
April 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCM 110 and is the answer not in the manual?

Questions and answers

Related Manuals for EnOcean RCM 110

Summary of Contents for EnOcean RCM 110

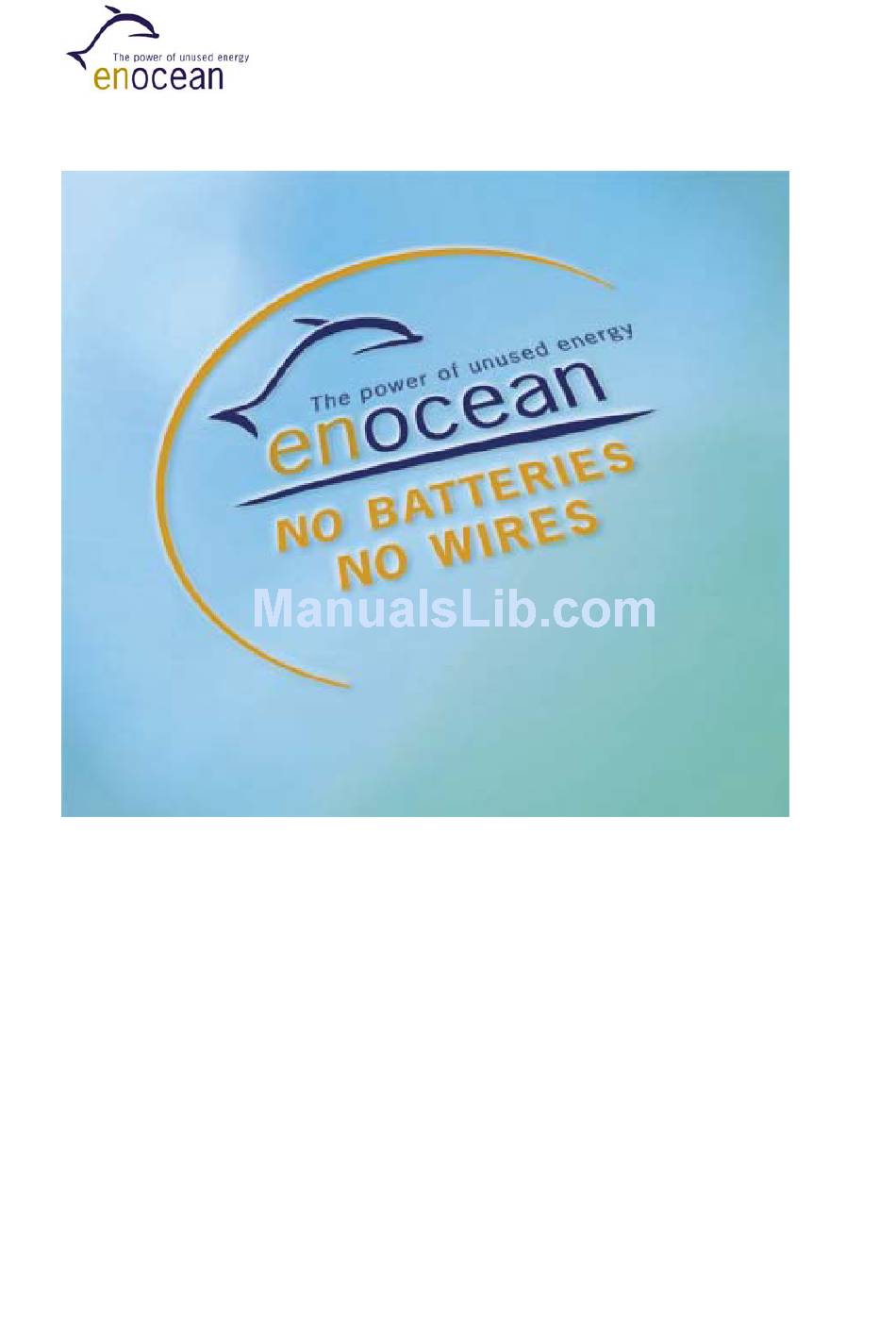

  • Page 1 RF Receiver Modules RCM 110 and RCM 120 User Manual V1.93 April 2007...

  • Page 2: Revision History

    As far as patents or other rights of third parties are concerned, liability is only assumed for modules, not for the described applications, processes and circuits. EnOcean does not assume responsibility for use of modules described and limits its liability to the replacement of modules determined to be defective due to workmanship. Devices or systems containing RF components must meet the essential requirements of the local legal authorities.

  • Page 3: Table Of Contents

    3.4 Power Supply Requirements ______________________________________________________ 28 3.5 LMI Output Connection ____________________________________________________________ 28 3.6 Note to RCM 110 Mode 5 (Dimming) ______________________________________________ 29 3.7 Notes to RCM 120 Mode 0 (Serial Data Communication) ________________________ 29 3.8 Time-Out Recommendation concerning RCM 120 Mode 1 (Pushbutton)________ 29 3.9 CE Approval Requirements ________________________________________________________ 30...

  • Page 4: General Description

    1. GENERAL DESCRIPTION The multifunctional receiver modules RCM 110 and RCM 120 are used to receive and to process telegrams generated and transmitted by EnOcean radio transmitters. These modules can be easily integrated into control and switching units for the implementation of different application-specific system solutions.

  • Page 5: Typical Applications

    1.2 Typical Applications • Building installation • Industrial automation • Consumer Electronics The RCM modules are part of a powerful RF system solution from EnOcean for operation and control applications. Because transmitters self-powered batteries), maintenance-free RF systems can be implemented.

  • Page 6: Environmental Conditions

    2.45 2.45 1.225 1.225 Figure 2: RCM 110 and RCM 120 package outlines 1.5 Environmental Conditions Operating Temperature:..............-25 up to +65 °C Storage Temperature: ......-40 up to +85 °C, +85 up to +100 °C for 1h max. Humidity:.................... 0 % to 95 % r.h.

  • Page 7: Functional Description

    Mode Mode CODE_2 CODE_2 1, 16 1, 16 VCC GND VCC GND SSLM SSLM Figure 3: Block diagram of RCM 110 and RCM 120 2.2 Pin Description Pin No. Symbol Function Operational characteristics GND_0 Ground connection CODE_0 Encoding input for operation mode selection Resistor network input.
  • Page 8 Connect the open CLR scene switches) pin to GND for longer than 2 seconds. OUT_0 Functional control outputs (see 2.3 RCM 110 Open collector outputs. OUT_1 Operating Modes / 2.4 RCM 120 Operating Modes). 35 V max., 100 mA OUT_2 Also indicate current learning mode status (see 2.7...
  • Page 9 OUT_x external OUT_x ( external ) (Open OUT_x internal Collector) (TTL) (internal ) Figure 5: Equivalent schematics of Functional Outputs (pins 8 to 11) ©EnOcean GmbH, A. Anders / W. Heller Page 9 of 33 RCM 110/120 User Manual V1.93...

  • Page 10: Rcm 110 Operating Modes

    PTM, CTM or TCM modules). 1BS or 4BS telegrams from e.g. STM modules can not be learned. *) Notice! RCM 110 modules labeled with development step code “DA”, the min. value of Tv is 20% and OUT_1 switching function is not implemented.
  • Page 11 Diming (MODE 5): Tv < Tv > OUT_0 Tv > Tv < (PWM, Ts ~ 0.5s) OUT_1 Figure 6: Timing of RCM 110 functional outputs ©EnOcean GmbH, A. Anders / W. Heller Page 11 of 33 RCM 110/120 User Manual V1.93...

  • Page 12: Rcm 120 Operating Modes

    Note: Since RCM 120 operating modes 1,2 and 6 are switching functions, transmitter modules with switching functionality can be learned in these modes only (RPS and ©EnOcean GmbH, A. Anders / W. Heller Page 12 of 33 RCM 110/120 User Manual V1.93...
  • Page 13 During the receiver is in learn phase the IDs of all arriving transmitter telegrams are stored. All received EnOcean telegrams are outputted at the serial interface in Learn Mode and in Operating Mode. Those with known ID are marked in addition by a dedicated Bit (see H_SEQ at chapter 2.5).
  • Page 14 After Ts sec to inactive (stop to inactive (stop OUT_0 changes to immediately) at button active for 2 min. (cont. release) running after switchover time) ©EnOcean GmbH, A. Anders / W. Heller Page 14 of 33 RCM 110/120 User Manual V1.93...

  • Page 15: Rcm 120 Serial Interface (Operating Mode 0)

    When the receiver is in “Serial Interface” mode, it transfers out data blocks of information from the received RF telegrams. All received EnOcean telegrams are transferred. Telegrams of transmitters learned by the receiver are signed if this procedure is used. The data block format is explained later in this document;...
  • Page 16 (8 bit each) 32-bit transmitter ID STATUS (8 bit) Status field (see detail description) CHECKSUM (8 bit) Checksum (Last LSB from addition of all octets except ©EnOcean GmbH, A. Anders / W. Heller Page 16 of 33 RCM 110/120 User Manual V1.93...
  • Page 17 (4 bit) =0..15 Repeater level: 0 is original message (not repeated) IMPORTANT NOTE FOR SYSTEMS USING AN ENOCEAN RADIO REPEATER: Within toggle switch applications using the RCM 120 or TCM 120 serial receiver mode in combination with the TCM 110 repeater module, please ensure that no serial command interpretation error may occur at the connected control unit.
  • Page 18 Energy bow pressed, PR = 0 Energy bow released Reserved (4 bit) for future use If ORG = 6 (Telegram from a 1 Byte STM sensor): ©EnOcean GmbH, A. Anders / W. Heller Page 18 of 33 RCM 110/120 User Manual V1.93...
  • Page 19 Note: The bit SR is used only when the lower 3 Bits from ID_BYTE0 = B’111’ (scene switch), and RID ≠ 0 (indicates that the memory buttons M0-M5 are operated in the handheld remote control). ©EnOcean GmbH, A. Anders / W. Heller Page 19 of 33 RCM 110/120 User Manual V1.93...

  • Page 20: Learning Modes

    2.6 Learning Modes Four different learning modes are implemented within the RCM 110 and the RCM 120 modules: 1.) Learning Mode CLR: ID Memory Reset. All learned transmitter IDs are deleted. Learning mode LRN is entered subsequently. CLR mode has to be entered also for changing the receiver operating mode (changed connections pattern at pins CODE_2..0...
  • Page 21 Or activate the sensor radio transmitter at least once (triggering is done by a movement within the motion sensor area, illumination of a brightness sensor, etc.). EnOcean sensors in general have a separate pushbutton for easy generation of a triggering signal.

  • Page 22: Deleting Radio Transmitters

    Deletion of all learned transmitters: Connect the CLR pin longer than 2 sec. to All learned transmitters on all channels are deleted at the same time. After this, the receiver enters Learning Mode LRN. ©EnOcean GmbH, A. Anders / W. Heller Page 22 of 33 RCM 110/120 User Manual V1.93...

  • Page 23: Rcm 110 Scene Selection Control

    For storing and recalling light scenes, a Scene Selection Control functionality is implemented within the RCM 110 module (scene memory). In addition to six user-defined scenes (memories M0 to M5), the basic control functions “All lights on” and “All lights off” are given. Scene Selection Control works within all RCM 110 operating modes (Rocker Switch 1 channel, Rocker Switch 2 channel, Rocker Switch 4 channel and Dimming).

  • Page 24: Received Signal Strength Indicator (Rssi)

    Please note that RCM 120 in Operating Mode 0 offers a 9.6 kbps standardized serial output of all received EnOcean radio telegrams (see chapter 2.5).

  • Page 25: Applications Information

    Positioning and choice of receiver and transmitter antennas are the most important factors in determining system transmission range. The RCM 110 and RCM 120 receiver modules are supplied with a soldered whip antenna as a standard. This antenna enables a very compact receiver unit with good radio reception characteristics.
  • Page 26 (connect the inner cable to the resoldered hole, and solder the shielding as short as possible to the RCM Groundplane, length of insulation max. 4 mm): Figure 14: Mounting an external antenna ©EnOcean GmbH, A. Anders / W. Heller Page 26 of 33 RCM 110/120 User Manual V1.93...

  • Page 27: Transmission Range

    • Lead glass or glass with metal coating, steel furniture The distance between EnOcean receivers and other transmitting devices such as computers, audio and video equipment that also emit high-frequency signals should be at least 0.5m A summarized application note to determine the transmission range within buildings are available as download from www.enocean.com.

  • Page 28: Power Supply Requirements

    Note: LMI is Active High during learning mode; OUT_0 and OUT_1 are open collector outputs (Active Low). Figure 15: Example of LMI output connection ©EnOcean GmbH, A. Anders / W. Heller Page 28 of 33 RCM 110/120 User Manual V1.93...

  • Page 29: Note To Rcm 110 Mode 5 (Dimming)

    EVA 100 user manual and below in chapter 3.11. 3.8 Time-Out Recommendation concerning RCM 120 Mode 1 (Pushbutton) Radio modules of EnOcean have been developed for highest transmission reliability. Nevertheless it can happen that the radio connection will be disturbed for a short time in cause of physical circumstances and a release telegram of the switching module PTM 100 will not be received.

  • Page 30: Ce Approval Requirements

    3.10 FCC/IC Approval Requirements Because of the very low radiated field strength on average, the 868.3 MHz EnOcean radio technology can be approved in the USA and in Canada. In the US approval of receivers is not necessary in general. On a voluntary base an US representative can last out a "Declaration of Conformity"...
  • Page 31 As consequence, an adequate external pull-up resistor (e.g. here 2k2) shall be connected between the used open collector (output signal) and desired supply voltage, (e.g. the same +5V supply), particularly in doubt. ©EnOcean GmbH, A. Anders / W. Heller Page 31 of 33 RCM 110/120 User Manual V1.93...

  • Page 32: Development Tools

    4.1 Evaluation Kit EVA 100/105 EVA 100 is an evaluation kit to support the development of applications based on the EnOcean receiver modules RCM 110 and RCM 120. EVA 100 supports a quick evaluation of all receiver operation modes as well as a quite easy setting-up operation of the receiver side when EnOcean transmitter modules (e.g.

  • Page 33: Declaration Of Ce Conformity

    5. DECLARATION OF CE CONFORMITY ©EnOcean GmbH, A. Anders / W. Heller Page 33 of 33 RCM 110/120 User Manual V1.93...

This manual is also suitable for:

Rcm 120
