GPON CPE
Model: UF-LOCO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UF-LOCO and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti UF-LOCO

Summary of Contents for Ubiquiti UF-LOCO

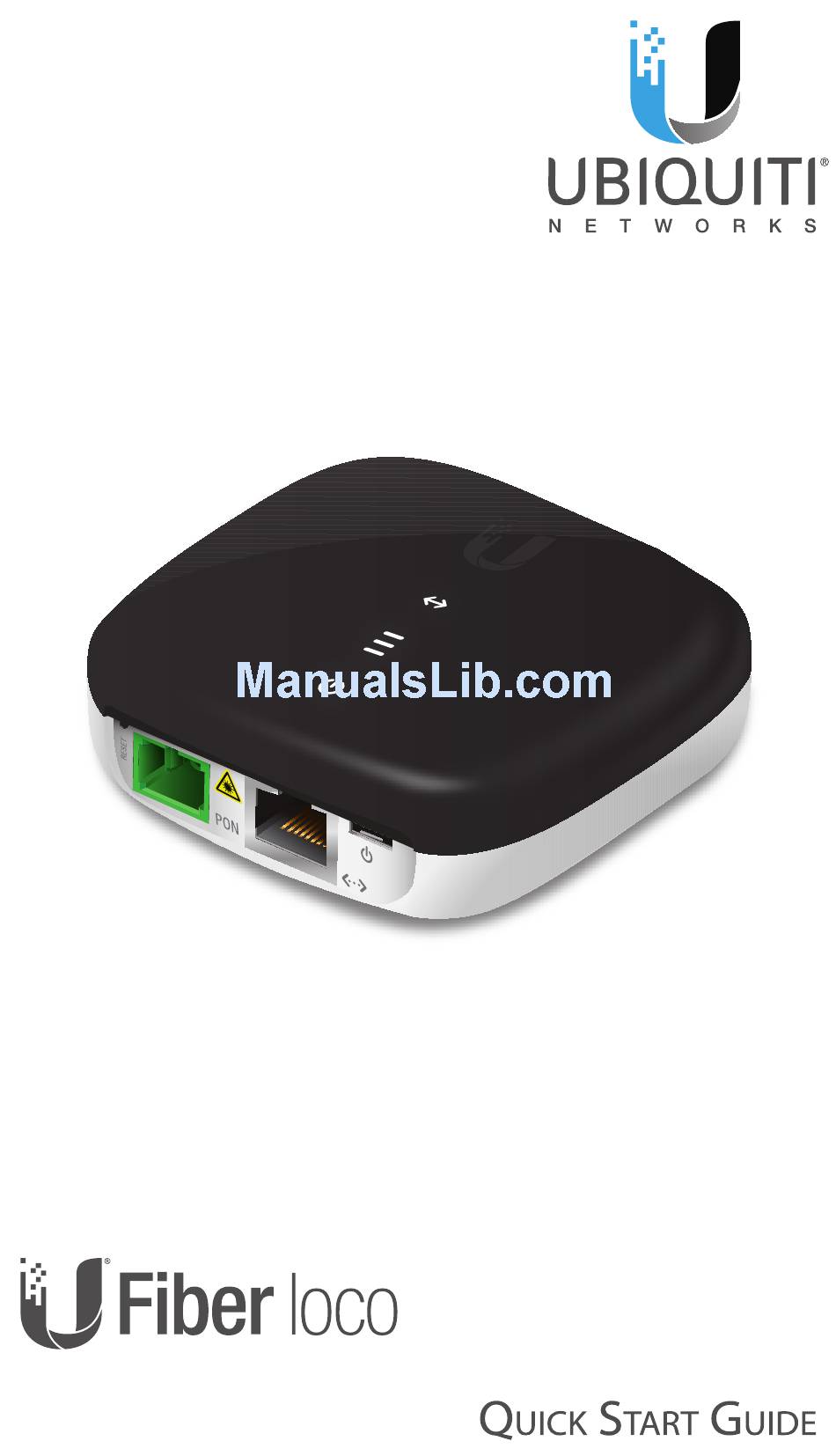

  • Page 1 GPON CPE Model: UF-LOCO...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® U Fiber loco. This Quick Start Guide is designed to guide you through the installation and also includes the warranty terms. Package Contents U Fiber loco Wall Mount Bracket Screws (Qty. 4)

  • Page 3: Hardware Overview

    Hardware Overview Reset Button The Reset button serves two functions for the UF-LOCO: • Restart Press and release the Reset button quickly. The three signal LEDs will flash amber. • Restore to Factory Default Settings Press and hold the Reset button for more than five seconds. The three signal...

  • Page 4: Ethernet Led

    LEDs Ethernet Signal Power Ethernet LED State Status Ethernet connection down White Ethernet connection up Power LED State Status Power off White Power on...
  • Page 5 Check the fiber cables and (3) Amber connectors, and ensure that the OLT functions properly. Alternating No authority Between The UF-LOCO has not been (2) Amber authorized or cannot communicate (1) White with the OLT. Check passwords and OLT settings. Signal...

  • Page 6: Hardware Installation

    Hardware Installation The UF-LOCO can be mounted on a wall or placed on a desktop. WARNING: To reduce the risk of fire or electric shock, do not expose the UF-LOCO to rain or moisture. Wall Mounting 1. Use the Wall Mount Bracket as a template and drill four 6 mm holes as shown below.
  • Page 7 3. Mount the UF-LOCO by inserting the top of the UF-LOCO into the Mount Bracket and then pivot the bottom into the bracket until it locks into place.

  • Page 8: Connecting Fiber

    Connecting Fiber Connect the fiber optic cable from the Passive Optical Network to the PON port.

  • Page 9: Connecting Lan

    Connecting LAN 1. Connect an Ethernet cable to the LAN port. 2. If you are using PoE, go to Connecting Power. If you are using the Micro-USB Power Adapter, connect the other end of the Ethernet cable to your LAN.

  • Page 10: Connecting Power

    PoE passthrough, so it is the ideal complement to the UF-LOCO for CPE installations. • Using a PoE switch (not included): Connect the Ethernet cable from the UF-LOCO to a PoE-enabled Ethernet port on the switch. WARNING: The PoE switch must comply with the power specifications listed in the Specifications section of this Quick Start Guide.
  • Page 11 Connecting to the airCube 1. Connect the Ethernet cable from the UF-LOCO to the WAN 24V PoE OUT port on the back of the airCube (not included). 2. To power the airCube, follow the instructions in its Quick Start Guide.

  • Page 12: Accessing The Configuration Interface

    Accessing the Configuration Interface 1. Ensure that your computer (or other host system) is connected to the UF-LOCO. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3. Launch your web browser. Type http://192.168.1.1 in the address field.
  • Page 13 The UF-LOCO is compatible with most major brands of OLT (Optical Line Terminal) and offers four compatibility profiles. By default the UF-LOCO is set to Profile 1 - Ubiquiti Networks U Fiber OLT. For other brands, manually select Profile 2, 3, or 4.
  • Page 14 Profile 1 Ubiquiti Networks U Fiber OLT • Profile 2 Other brands Profile 3 • Other brands • Profile 4 Other brands Note: For more information, visit: https://ubnt.link/Supported-3rd-Party-OLTs 5. Click Save Changes. The UF-LOCO will automatically restart with the new profile.

  • Page 15: Specifications

    Processor Specs MIPS-32, 240 MHz Memory Information 128 MB DDR3 Button (1) Reset Operating Temperature -10 to 45° C (14 to 113° F) Operating Humidity 10 to 90% Noncondensing Certifications CE, FCC, IC Included only in the single-pack of the UF-LOCO.

  • Page 16: Safety Notices

    UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period.
  • Page 17 Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...

  • Page 18: Limitation Of Liability

    DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products (including...

  • Page 19: Australia And New Zealand

    Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 20 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 21 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 22: Declaration Of Conformity

    Ελληνικά [Greek] Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UF-LOCO, είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις των οδηγιών 2014/30/EE, 2014/35/EE. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: www.ubnt.com/compliance Magyar [Hungarian] Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UF-LOCO készülék...

  • Page 23: Online Resources

    Italiano [Italian] Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UF-LOCO, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti delle direttive 2014/30/UE, 2014/35/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: www.ubnt.com/compliance Latviešu valoda [Latvian]...
  • Page 24 New York, NY 10017 ©2017-2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airCube, and U Fiber are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
